Resistor Wallet

Resistor Wallets in use

Ben wrote in with a great question:

I had a quick question regarding the Three Fives Kit. First of all I just wanted to say that great job on the kit! I LOVE mine and it was a blast to put together. I just had a quick question about one of the packing items used when the kit is shipped. I loved the resistor organizer/holder you shipped the resistors and have been trying to figure out where to get them. The best I could guess was that they are sewing needle holders, but I have been unable to find them as such.

Many of our soldering kits have multiple resistor values, but the Three Fives kit is unusual among our projects in having nine individual resistors of different values. This presented an interesting problem: how to make user friendly packaging to make it easy to find the right resistor. Sure, you can read the color code stripes, but that can be a pain for folks with color blindness or just plain old poor vision.

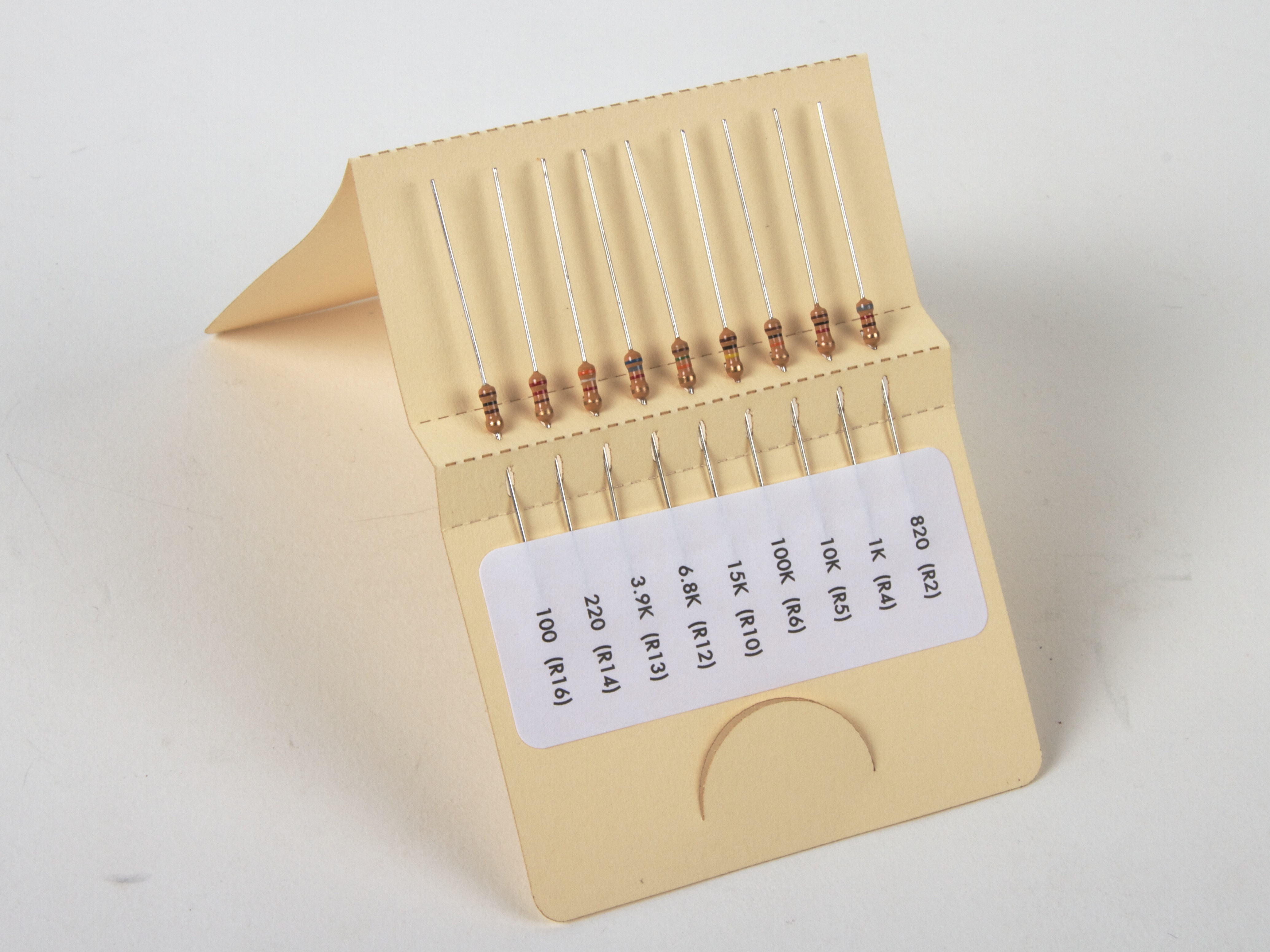

Resistor Wallet in use

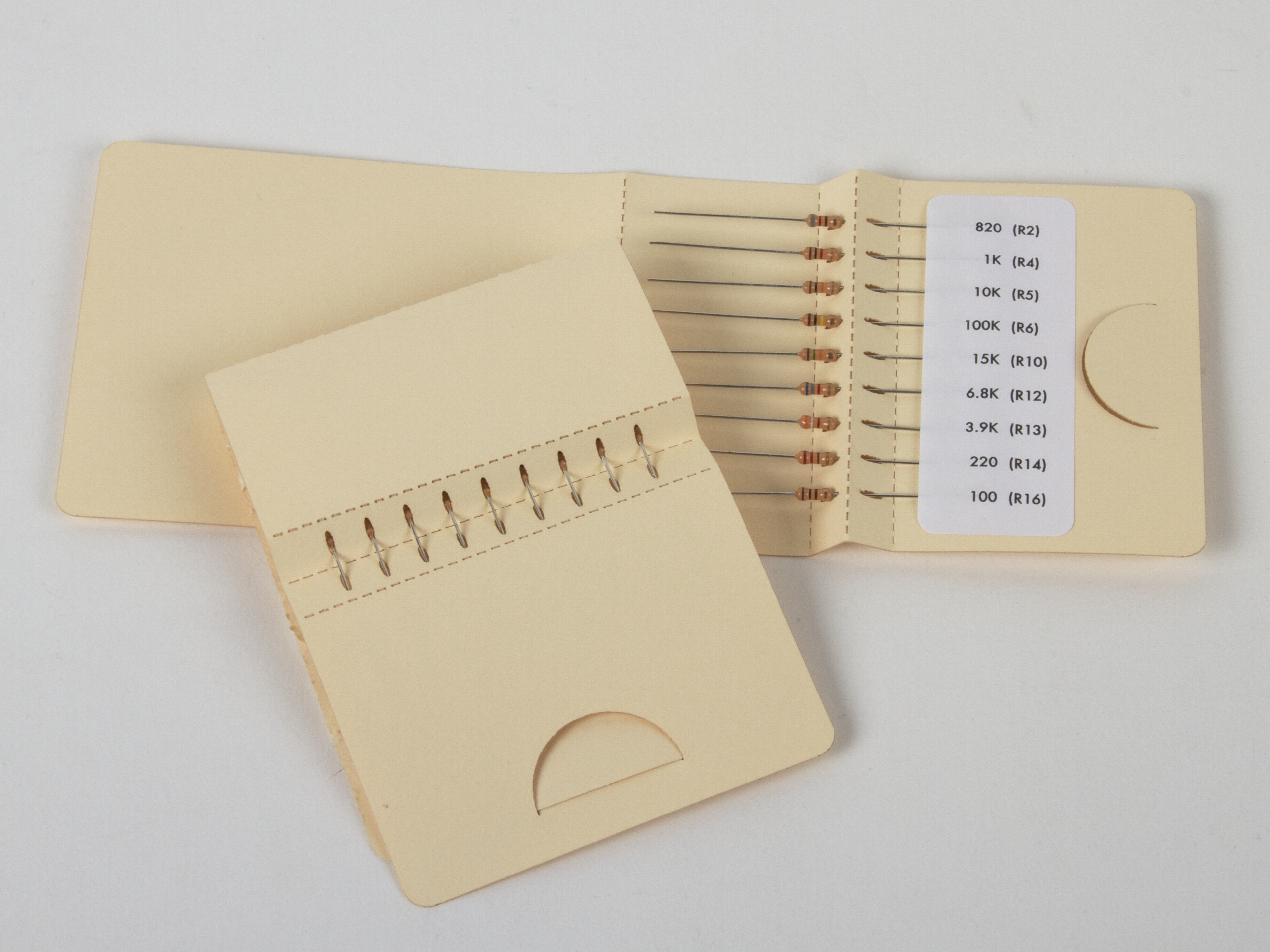

Our solution was to design a custom wallet, modeled after needle packets, to hold and label the resistors with their locations & values. The resistors are dropped into slots, secured with a label, the cover flap is closed over them and then tucked under a tab. During use, each resistor is simply pulled out from under the adhesive label.

Laser Cutting Wallets

The wallets are laser cut out of sheets of 60 lb manila cardstock. It bends easily along the perforations, but is very sturdy and can withstand many repeated bends. (Aside: this weight is very similar to punch cards, which—to go full circle—is what I use for storing sewing needles.)

Resistor Wallet

We reused the wallet with a different label when we released our multi-colored Menorah and breadboard Menorah kits, which also happen to use nine resistors in a variety of values.

Resistor Wallet Design

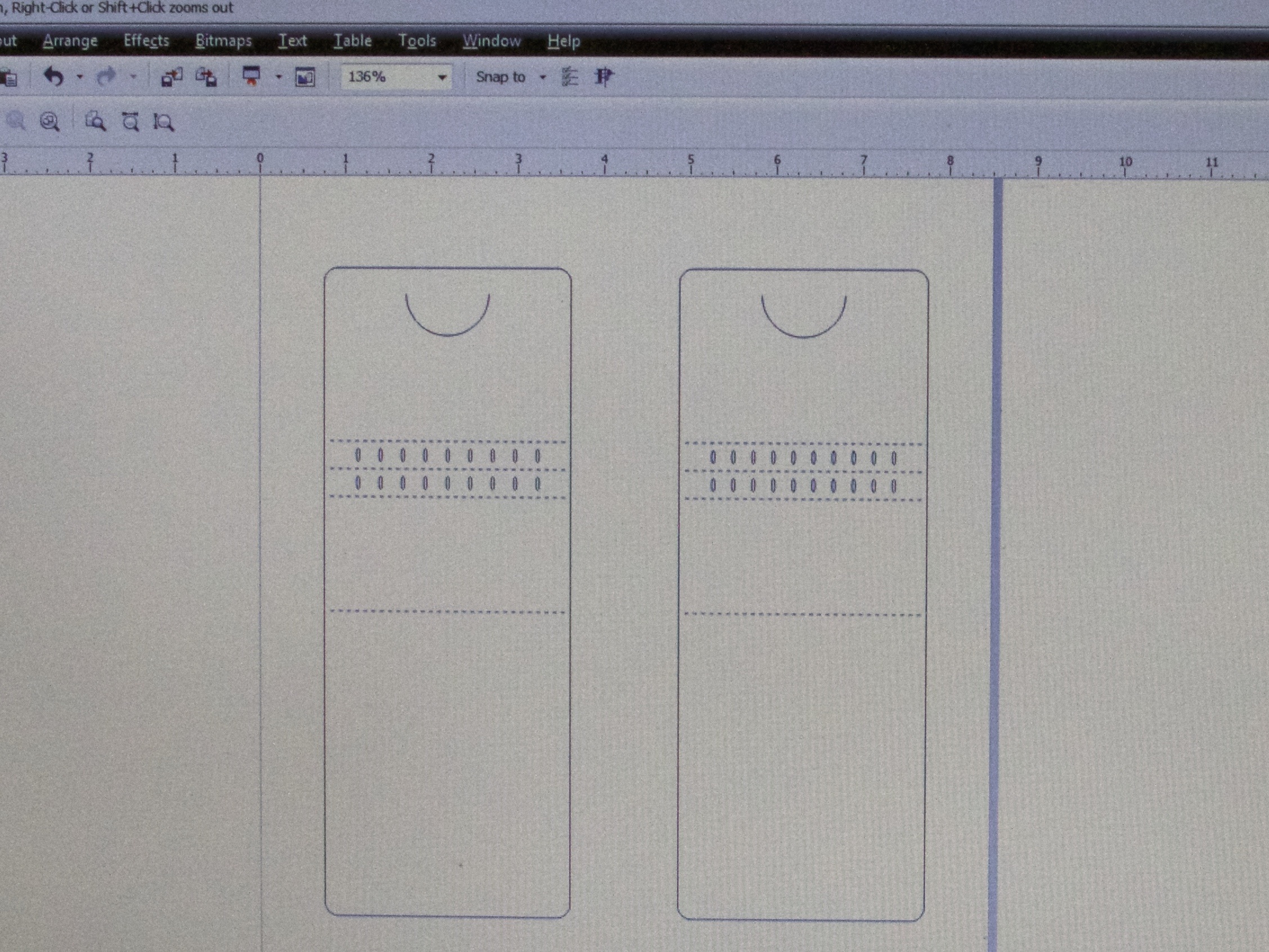

Today we’re releasing this resistor wallet design in two versions: one for nine resistors, and one with slightly narrower spacing to hold ten.

If you use our resistor wallet, we’d love to hear about it or see pictures in our flickr pool!
