A Diamagnetic Demonstration

Untitled

Our friends stopped by with a simple apparatus to demonstrate the diamagnetic properties of bismuth metal. Diamagnetism is a extremely weak magnetic effect — generally orders of magnitude weaker than everyday permanent magnets, which exhibit ferromagnetism. However it is also an extremely interesting effect because diamagnetic materials are repelled by magnetic fields. This is different than the case with ferromagnets, where one pole of a magnet repels another — rather, the entire material is (weakly) repelled by any magnetic pole.

Now, how might one observe such a weak effect? One way is to build a magnetic levitation rig, but the field configurations there are a little less obvious. With a simple but sensitive balance, we can see the repulsion directly. The balance above has a long wooden beam, a central pivot on two blocks of plastic, and a couple of coins on the far end for counterbalance.

Untitled

At the business end of the scale, there is a cylinder of bismuth metal about 1 cm in diameter, held in place by a rubber band. We also have a larger rectangular block, which is our test magnet, made of grade N50 NdFeB and painted black. And finally, the Lego Astronaut Twins are here helping out as a scale and position reference.

Moving the block magnet beneath the bismuth, we can see what happens in an animated GIF:
Untitled

After the balance settles, the resting position of the end with the bismuth is considerably higher. With some calibration in terms of weights and/or positions, one could even measure the exerted force with some precision.

A slight improvement to this apparatus would be to reverse the roles of the bismuth and the block magnet. That is, to affix the magnet to the arm of the balance, and to slide the bismuth beneath it instead. You could then use a nearby block of aluminum to damp the motion of the beam through magnetic (eddy current) damping. Many commercial balance-beam type scales already use magnetic damping so that they settle down to their final values faster.



Evil Mad Scientist Laboratories: Year 4

Evil

Happy birthday to us! Evil Mad Scientist Laboratories has now been around for four years. We’ve collected some interesting projects from this past year to celebrate.

Microcontroller and Electronics Projects:

Tabletop Pong
Tabletop Pong

Breadboard
Moving from breadboard to protoboard

Revenge!
Revenge of the Cherry Tomatoes

drink making unit
Drink making unit

pin 1
Finding pin 1

xmega - 2
Say hello to xmega

Peggydot
Adding a Chronodot to Peggy 2

Meggy Twitter Reader
Meggy Jr RGB Twitter Reader

twisted wire bundle
Twisted Wire Bundles

LED graph
Some thoughts on throwies

rovin pumpkin
Rovin’ pumpkin

ADXL335 - 10
Accelerometer with an AVR (updated)

LEDcalc - 20
Wallet-size LED Resistance Calculator

Science:

seeing magnetic fields
Seeing Magnetic Fields

Ice Spikes
Ice Spikes

opposition effect in clover
Opposition effect

Kitchen Science 18
Litmus Candy

Beans day five
Gibberellic Acid and Giantism in Sprouts

Simple LED Projects:

fake seven segment display
Fake seven segment display

LED-lit sea urchin
LED-lit sea urchins

Edge Lit Cards
Refining edge-lit cards

Food Hacking:

Ice Cream Gyoza -13
Ice Cream Gyoza

Lemon Pickle
Lemon Pickle

The array
Spices

coffee bean cooler
DIY coffee bean cooler

Marmalade 30
Marmalade: easier than it looks

AtomicCookies 7
Atomic Cookies

asteroids cookies
Asteroids (the edible kind)

Crunchy Frogs01
Crunchy Frog

Kit Projects:

tortiseshell
Bulbdial Clock Kit

Peggy2le-end
Peggy 2LE

Scale
LED Hanukkah Menorah Kit

Larson Scanner
Larson Scanner

D12 bag8
Handbag of Holding Kits

Crafty Projects:

arecibo 2
SETI Scarf

scrap acrylic
Scrap acrylic shelf

Tombstone
24 hour tombstones

ipad 3
iPad lap stand

Custom iron ons 10
Custom iron-on techniques

Geek Design:

symmetrisketch
SymmetriSketch

Typographic Coasters
Typgraphical Character Coasters

Ornamental Components 08
Ornamental Components

Cat String 6
Radio controlled string

Bookend - 9
Bookends for physics geeks

Lego business cards-2
Lego Business Cards

Tie Stools2
Portable Stools

And, don’t forget, you can win a Peggy 2 or one of 13 other prizes in our clock
concept contest
, going on this week.

Related:

Impractical idea: Iron filing nail polish

spiky nail polish

Some time ago we came across a subtle magnetic nail polish. It had fine magnetic dust in it, and could record the local magnetic field profile at the time that the polish dried.

But hey, why can’t you do this with full-on iron filings? So, for our own bold and impractical take on this concept, we tried mixing genuine iron filings with nail polish (clear, in this case). Mix well, paint on, hold finger over (large) magnet while it dries. Don’t even think about trying to fit those spiky fingertips into gloves.

Results? So-so. The particles aligned with the field and solidified, but have more clumping than we’d like to see.

Maybe slightly finer particles would have been better. Much better would be if we found a good way to work with ferrofluid that could be hardened, or perhaps a version of magnetic viewing film that could be painted onto surfaces. Or maybe, if our version above were redone with RTV silicone, the particles could wiggle around in the presence of an external field.

We leave these important questions to higher minds than our own.

17 cool magnet tricks

Here are seventeen of our favorite magnet tricks, projects and demos.

Magnet tricks

Extract batteries from stubborn holders
We’ve all got things that take batteries. Some of them are well designed, and some of them are not. The worst offenders are electronic toys that take (say) half a dozen AA batteries, all of which must be inserted with the correct orientation– spring side first– and pried out, well, somehow. Rather than risk puncturing your batteries by prying them out with something pointy, just use a magnet to lift them out.
Continue reading 17 cool magnet tricks

The Hungry Scientist Handbook

 Today is the official release date for the Hungry Scientist Handbook, a new book by Patrick Buckley and Lily Binns.

The Hungry Scientist Handbook was conceived as a sort of cookbook for geek-centric food and– using the word a different way– as an a cookbook for food-oriented electronics– as evidenced by projects varying from polyhedral pies to LED lollipops.

We met Patrick and Lily at the 2006 Maker Faire, where they invited us to contribute a couple of chapters to their project. We did, and it’s finally out!

(We aren’t the only ones who are excited– we’ve seen write-ups at the LA Times and
Wired this week.)

A Computer Chip Trivet   Refrigerator magnetscrane crouton   12.  Fire!

We contributed a total of nine projects to the Hungry Scientist Handbook, some of which we have written about here. These include the Computer Chip Trivets, Crafty fridge magnets, Edible Origami, and (making a cameo appearance) the Lego Trebuchet.

Dry Ice Martini   Cold DrinkDry Ice Lemonade

We also contributed a few new cooking projects that involve dry ice: Dry (Ice) Martinis, Fizzy dry ice lemonade, and Dry ice root beer. (With Floating bubbles on CO2 as a bonus project.)

Smart Coasters   Smart Coasters

Smart Coasters

And… a brand new exclusive Evil Mad Scientist Laboratories electronics project that we developed just for the Hungry Scientist Handbook: Smart Coasters.

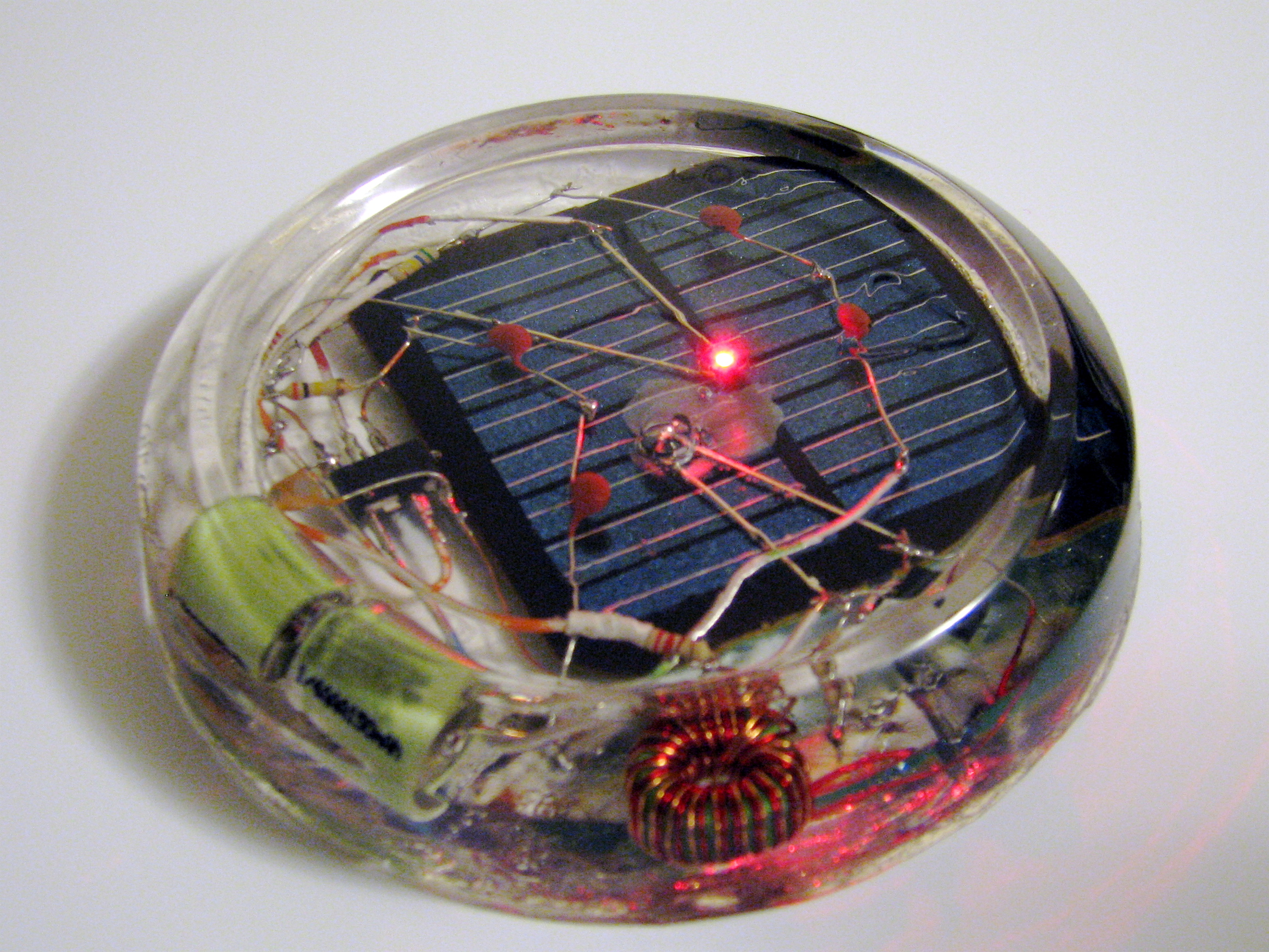

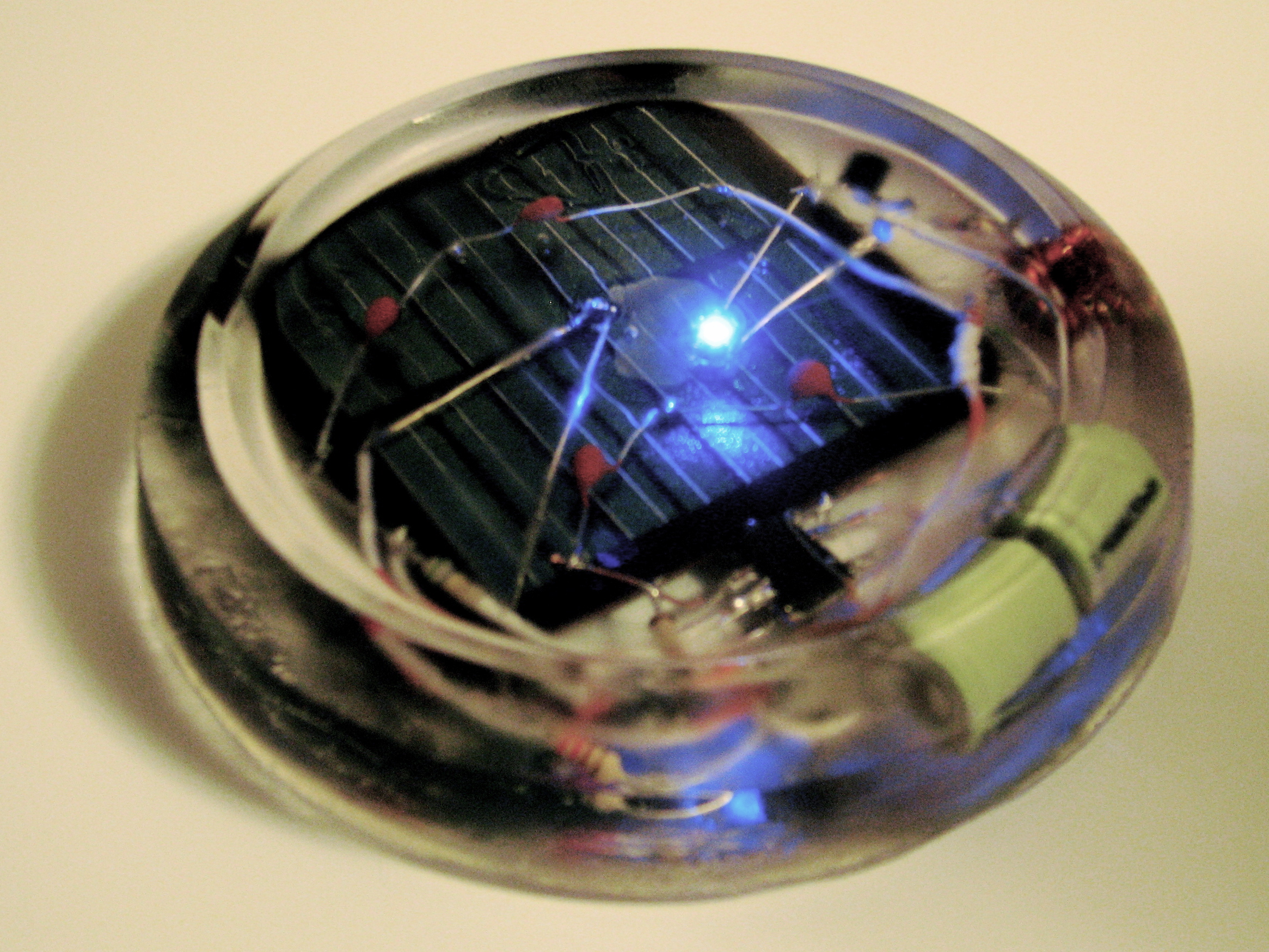

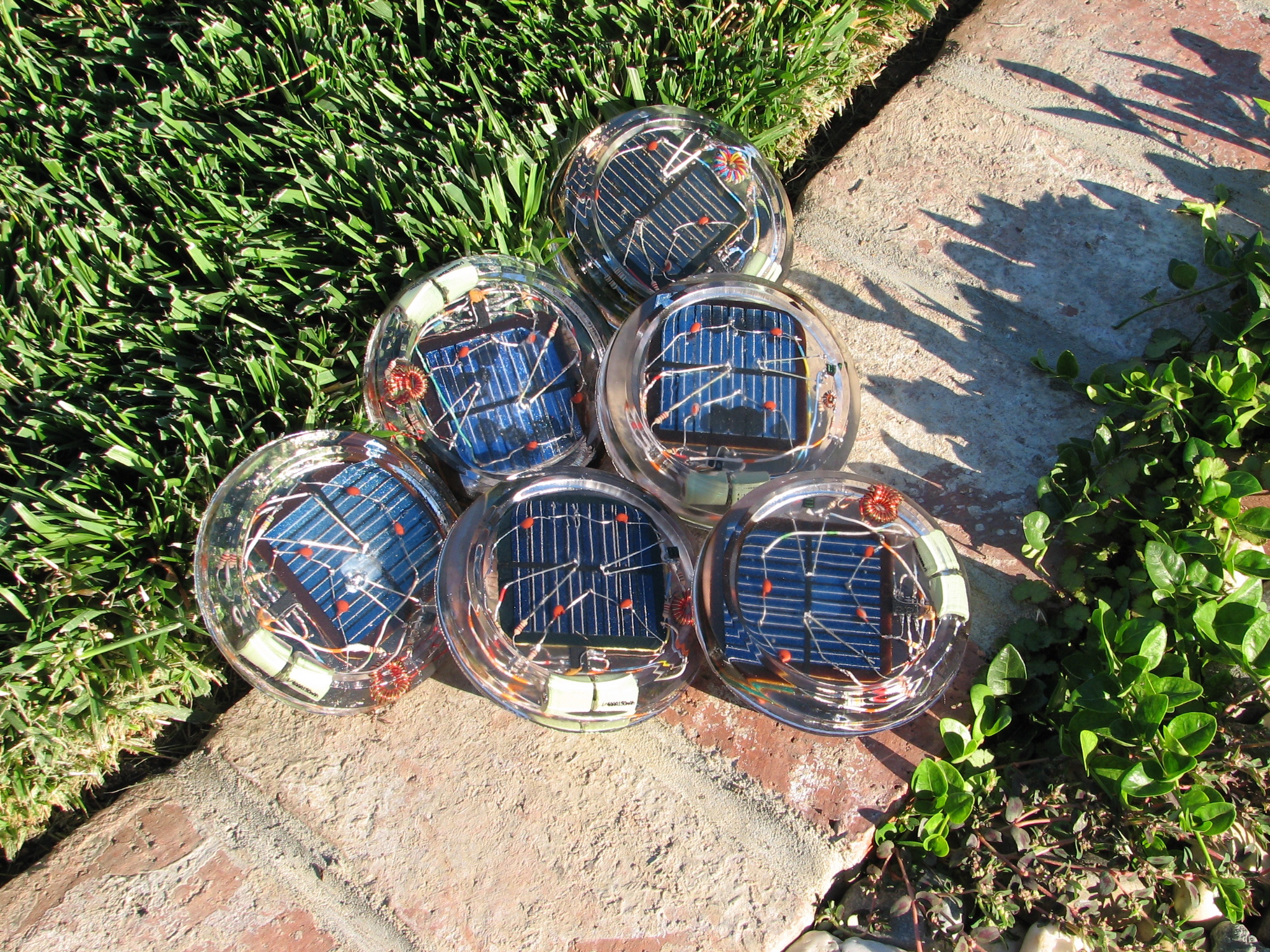

Smart Coasters are cast-plastic coasters for your drink that light up red when you put a hot drink on top and light up blue with a cold drink. The design is fully analog– no microcontrollers and no programming– and they incorporate a solar cell so that the whole thing is hermetically sealed: waterproof and washable. Complete step-by-step DIY instructions are included for both the electronics and the resin casting.
