PeggyDraw 2

peggydraw2

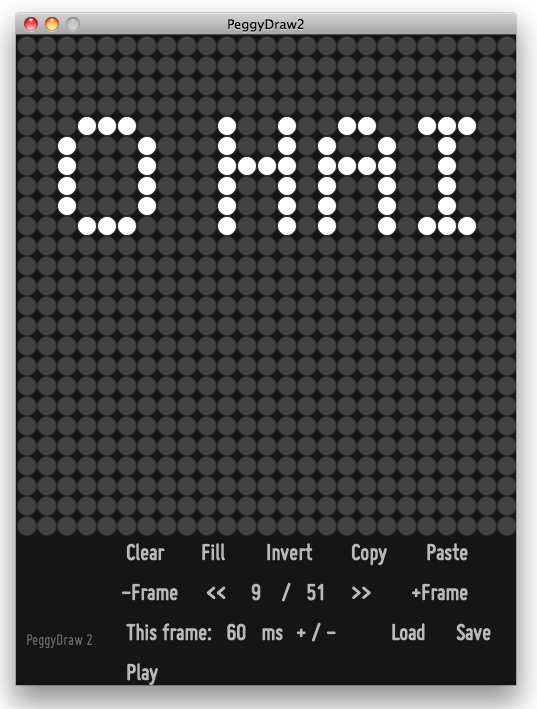

We are pleased to finally release PeggyDraw 2, a little bit of long-delayed software. It’s a Processing application that you can use to draw simple 1-bit animations on a 25×25 grid. The neat bit, of course, is that you can press the “Save” button, and the file that it saves is actually an Arduino program, ready to be programmed onto a Peggy 2.



You can download PeggyDraw 2 right here. It’s fully built in Processing, so that it works on Mac, Windows, and Linux. Also, open source, designed to be adaptable.
Some things to note about this program:



  • If you don’t have Processing on your computer, download it here.
  • The editing interface is easy point-and-click. Try it out to see how it works.
  • You can individually pick different delay times per frame, as low as 20 ms, or give every frame the same duration.
  • The frame data is stored in Arduino program memory, so you’re only limited by the flash memory in terms of frame number– over 250 frames fit on an ATmega328P.
  • The output file is located in the PeggyDraw2 sketch directory, inside a directory named “PeggyProgram” “data.” The file is called “PeggyProgram.pde.”
  • You can both save a file and later reload it for editing.
  • The formats used in PeggyDraw 2 should be easily adaptable to write sequences for other types of LED grids, even of different aspect ratio and control software.

And, special thanks to Matt Mets, http://cibomahto.com for assistance with Processing.
Update, 3/19/2011: We’ve posted a new version, PeggyDraw 2 v. 1.1, available here. Note that the output file is now stored in the “data” directory, not a separate “PeggyProgram” directory.
