Basics: Finding pin 1

pin numbers - 03

You’ve got your components, and your datasheet, and you’re read to start hacking. But which way does the chip go? Pin 23 is where? If you’re lucky, the orientation is clearly marked, or perhaps diagrammed in the datasheet. But if it isn’t, or if you’re simply new at this, it’s helpful to know what to look for.

In the picture above, pin 1 is clearlymarked on the Allen-Bradley resistor pack. And for better or worse, this is the exception, not the rule.



Here is a basic rule that applies for mostintegrated circuits: There’s a polarity mark somewhere. From that polarity mark, move counterclockwise around the chip, and number the pins starting at 1.

A common polarity marker is a half-moon shape at one end of the chip. Another is a small dot by pin 1, or sometimes a small triangle or tab instead. Sometimes several of these marks can appear.

Often pin 1 is in a corner of the chip, and it’s only that corner– not the pin itself –that is marked by the small circle or triangle.

In this sketch, we’ve drawn an imaginary part number “THX1138D,” manufactured in week 37 of 2013, and it has a mysterious lot or internal code “OHAI” that may or may not be explained in the datasheet. The polarity marks are a half-moon indentation on the left hand side as well as a dot by pin 1. This device has 20 pins, numbered counterclockwise along the two edges from 1 to 20.

As we’ll see, there are plenty of examples of this, or close variations on it. But there are also cases where there are *no* direct marks, but you can instead rely on the orientation of the text to understand the numbering. The text orientation is consistent, and for chips of this shape (with pins on two opposite sides), you can reliably assume that the polarity mark goes to the left of the text.


pin numbers - 02

Here are some classic and beautiful examples of chips with well-marked polarity. These are “ceramic DIP” integrated circuit packages, dated from the end of 1978. Each has a molded half-moon shape as well as a more subtle dot by pin 1.

pin numbers - 27

This is a modern higher-density variation on the same design. It’s a wide, low-profile plastic package called a 66-pin TSSOP (and a 128M bit DDR SDRAM, if you’re curious). The orientation is given by the half-moon shape on the left hand side and by the dot in the lower left corner. Now, that dot actually looks like it’s closer to pin 2 than to pin 1– Again, the marker often labels the corner where pin 1 lives, not the individual pin.

pin numbers - 17

This 74HC245D “octal bus transceiver” chip from NXP has the half-moon shape on the left hand side, plus a slightly more unusual polarity marking feature. The entire front edge of the chip– the edge containing pin 1 –is slightly beveled.


pin numbers - 18

And now here is a chip that has less of a “direct” indication of its orientations– no dot or half-moon shape. As we discussed earlier, you can rely on the orientation of the text in cases like this, and imagine an effective polarity mark on the left hand side of the chip. Pin 1 is on the lower left hand side.

If you look very closely, you’ll see that there is one additional polarity marking feature, in that this chip also has a very slightly beveled front edge.

pin numbers - 36

This is a somewhat unusual seven-yes-seven pin DIP chip. It’s a neat little solid-state relay capable of switching small loads on AC line voltage (0.9 A at up to 240 VAC) from a low-voltage digital input. Presumably, it has seven pins so that you can’t put it in backwards. This chip also relies on a combination of text orientation and a bevel at the side with pin 1.

Careful: That apparent “dot” is not a polarity indicator; pin 1 is still at the corner of the chip.


pin numbers - 29

Here’s one more variation. There’s a printed bar on the left hand side of this chip to act as a polarity indicator, taking the place of the half-moon shape.


pin numbers - 13

Here’s one that we get asked about quite often: A 17-segment alphanumeric display. LED displays can be pretty baffling, because the pin 1 location is not explicitly marked, and there’s no half-moon shape or other obvious polarity marker. However, the label itselfis a polarity marker and it’s important to remember that.

Edit: We initially had written down that these follow the label-orientation rule, but that turns out not to be the case. While you’d normally expect that the pin to the left of the label would start at pin 1, this device (and apparently some other alphanumeric/7-segment displays) follows a convention where pin 1 is in the upper left of the display– opposite the decimal point. That’s a big “+1″ for checking the datasheet!

pin numbers - 10   pin numbers - 11

Here’s a 5×7 LED matrix display. You can sort of make out marks on the back side beneath the epoxy, so it’s tempting to look for orientation hints there, but these types do normally follow the label-orientation rule. When you orient the part such that you can read the label, the effective polarity mark is on the left-hand side.

In the left photo, where the display is upright and the label is visible, pin 1 is beneath the lower-left corner. In the right photo, where the label is visible but the part is upside down, pin 1 is visible on the lower-right hand corner.


pin numbers - 26

Sometimes you’ll come across very different looking chips with very obvious polarity markers. This chip from Agilent has a gold stripe on the upper left hand corner.


pin numbers - 35

Sometimes a chip has a notched corner to indicate where pin 1 lives. The white silkscreen on the circuit board shows an exaggerated picture of this notching, by the lower-left corner.

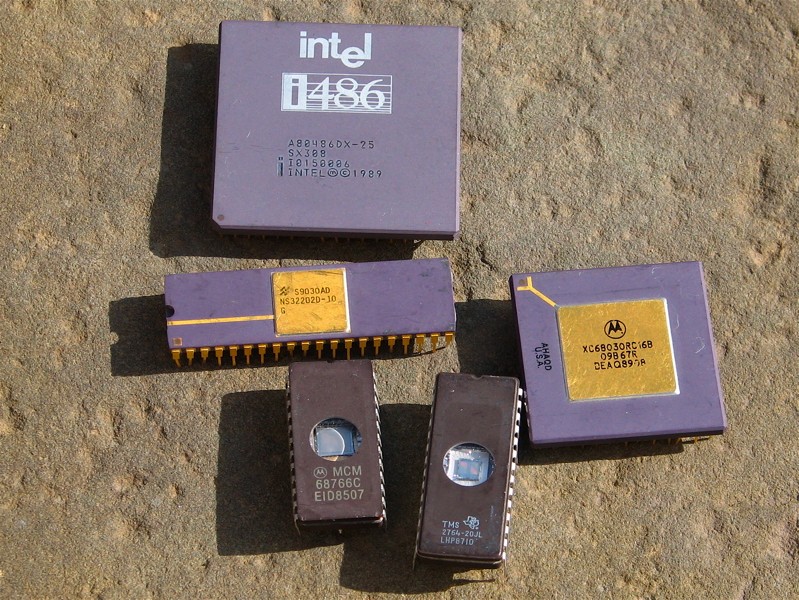

More chips

The 486 is a good example of a chip with a notched corner, while the 68030 has a gold stripe to indicate pin 1.


pin numbers - 25

This Broadcom chip has a dot by the corner with pin 1, but that’s a pretty subtle mark. If your chip is already mounted to a board, that can provide some better information to verify the orientation. For example, pin 1 of this chip is also marked by a white dot on the circuit board, and the other three corners have a mark, as though those corners were un-notched.

pin numbers - 22

Here’s another chip that’s somewhat ambiguous. Pin 1 is clearly marked with an arrow on the circuit board. If the chip were loose it would be a little less clear because not only is there a dot by pin 1, but there is also apparently a dot by the opposite corner. It may be just a coincidental mold mark, but it’s still potentially confusing.

pin numbers - 30

And here, a simple dot to indicate the orientation.

This is far from an exhaustive list, but is meant to show off some of the common ways that chip orientation is differentiated. If you have corrections or links to other interesting chips, we’d welcome them in the comments.
