Inside the PayPass: Credit card case mods

paypass top

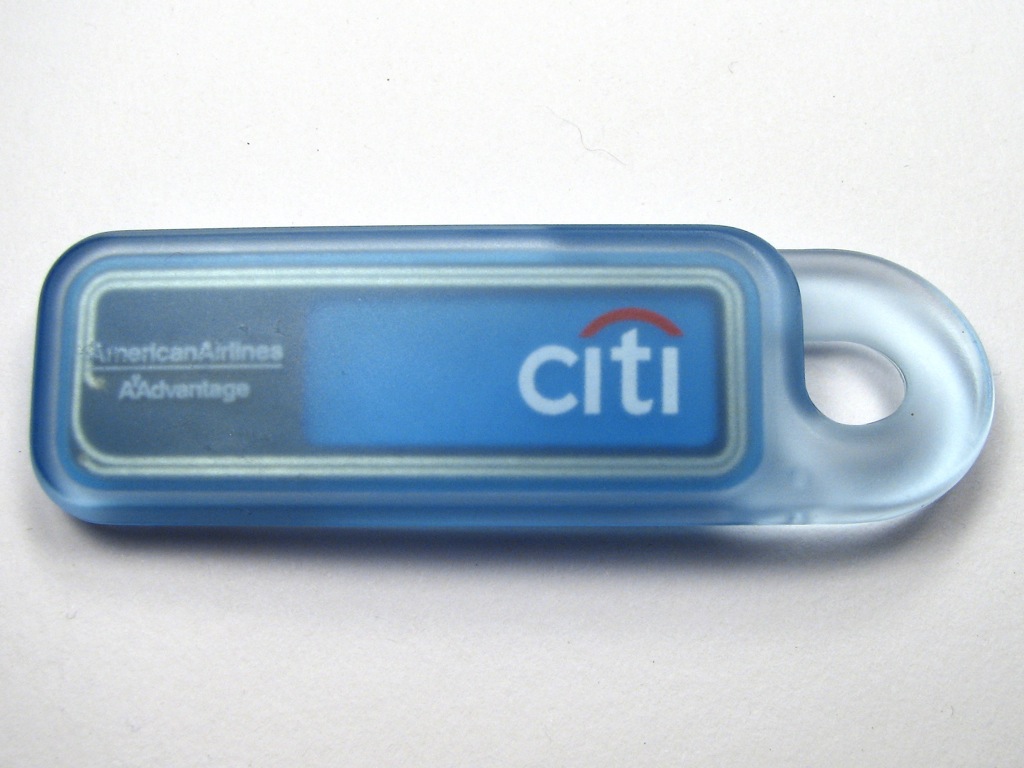

The PayPass is an RFID version of the MasterCard credit card. It is often available as a keychain “fob,” like the one shown above.

This particular one is from Citibank and is– as far as I can tell– a free optional addition to any Citibank Mastercard account. These have been in the wild for about a year now, and seem pretty handy. The obvious downside is that the RFID readers are far from ubiquitous. Still, things are improving and there are now quite literally dozens of places where you can use them.

From a hardware perspective it’s easy to see that this fob consists of the RFID element itself encased in a big block of plastic. And of course, plastic can be removed.


paypass top   paypass reverse

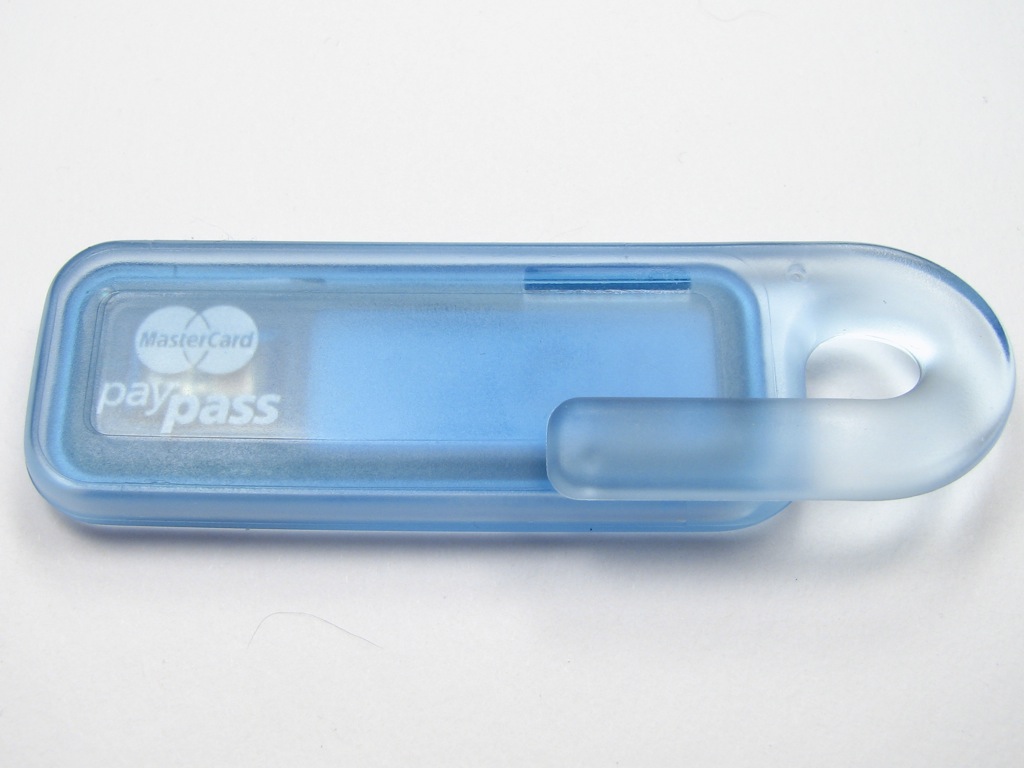

From the outside of the fob, it’s really hard to tell what’s on the inside. They’ve left just a tantalizing blurry window to see that there’s a chip in there. So, that’s the “before” picture.

The active circuitry inside the RFID keychain is potted into hard plastic, which I’m guessing is polycarbonate. To gently remove the circuitry from the inside, we placed the fob into a steel bowl filled with acetone, and let it sit for 24 hours. We have already described this procedure in some detail, in the context of extracting magnets from cheap toys, so it isn’t really necessary to go into further detail about that. The basic idea is that the plastic case simply dissolves away, leaving only the RFID element. It’s a gentle process that leaves the parts that we care about intact. Here is what is left:

Back, transparent

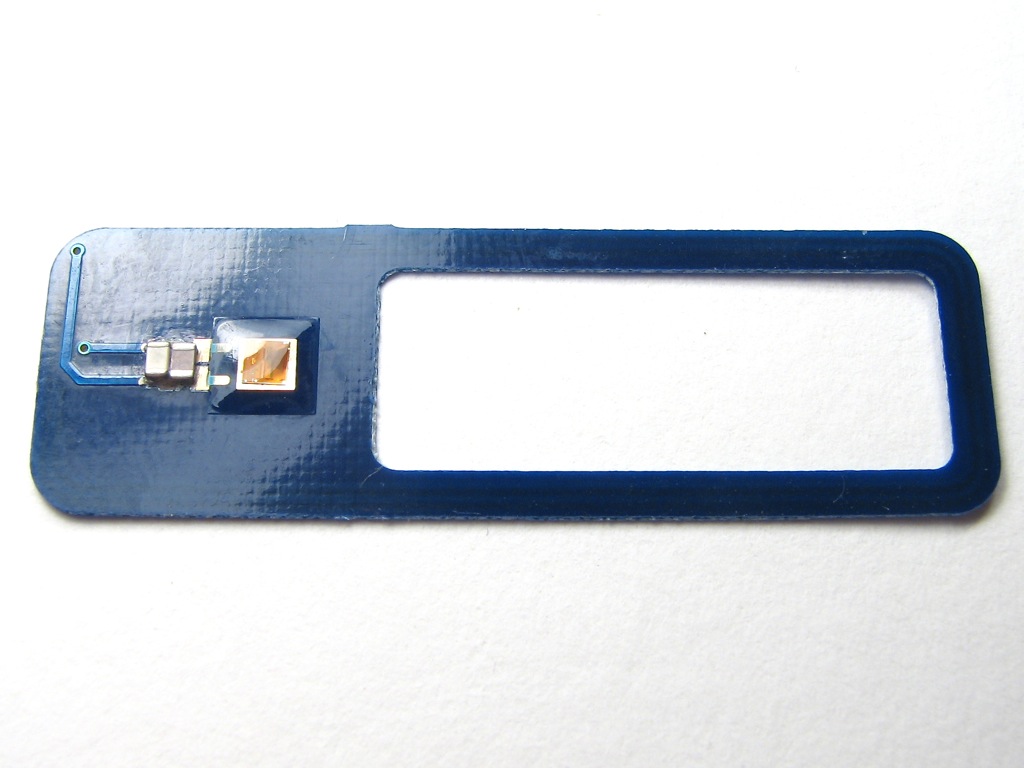

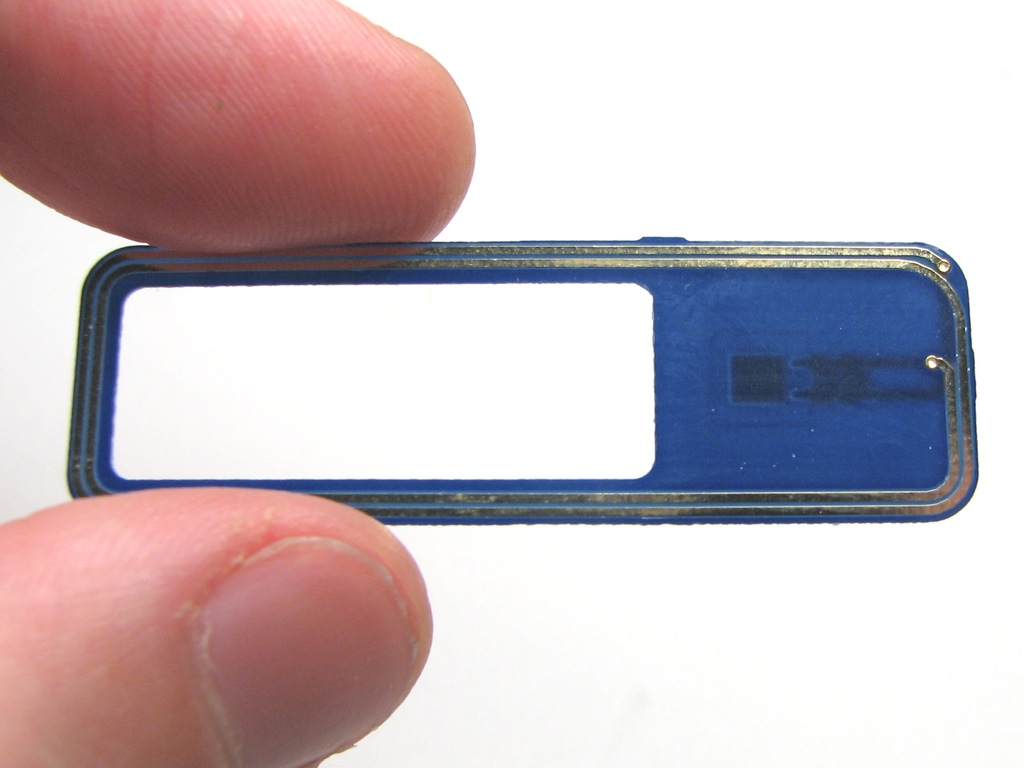

What we have is a tiny printed circuit board with a dark blue solder mask. The traces on the circuit board are gold. One one side there is a simple and large antenna, consisting of two loops on the circuit board. The size of this loop antenna sets the scale for the whole device.

On the other side of the printed circuit board are two capacitors and the chip itself:

Stripped

Chip close up

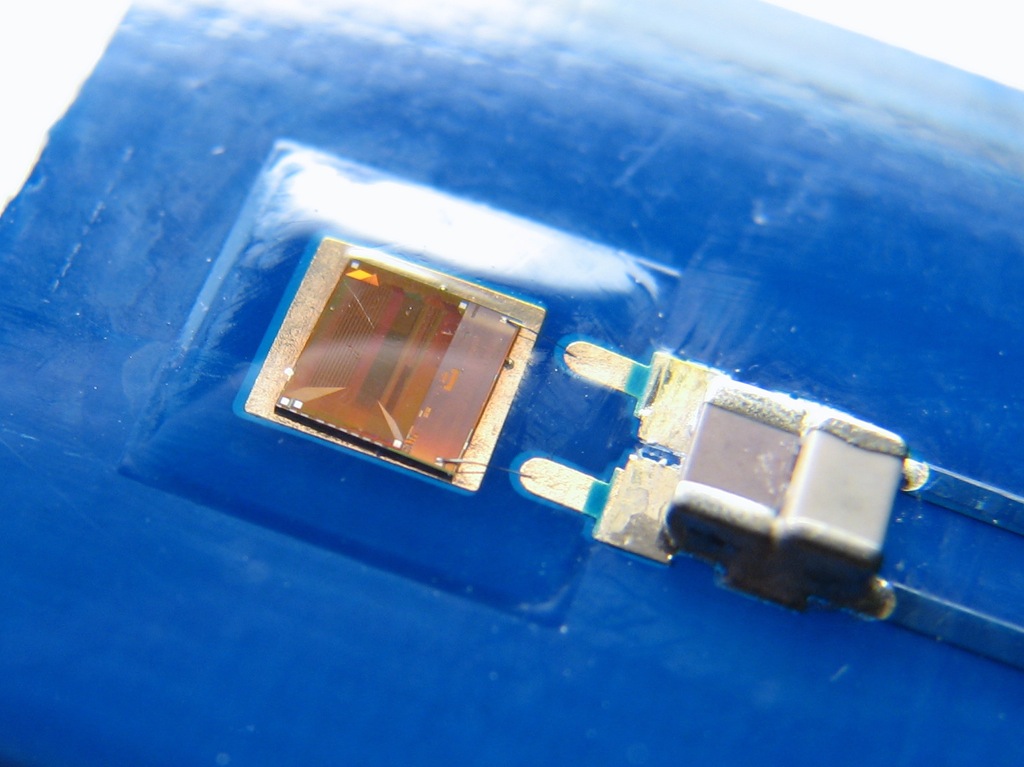

Closer up, we can see the RFID chip, which is held under a blob of clear potting compound– an epoxy that did not dissolve in the acetone. It is attached to the circuit board with a pair of wire bonds.



Colorful 2

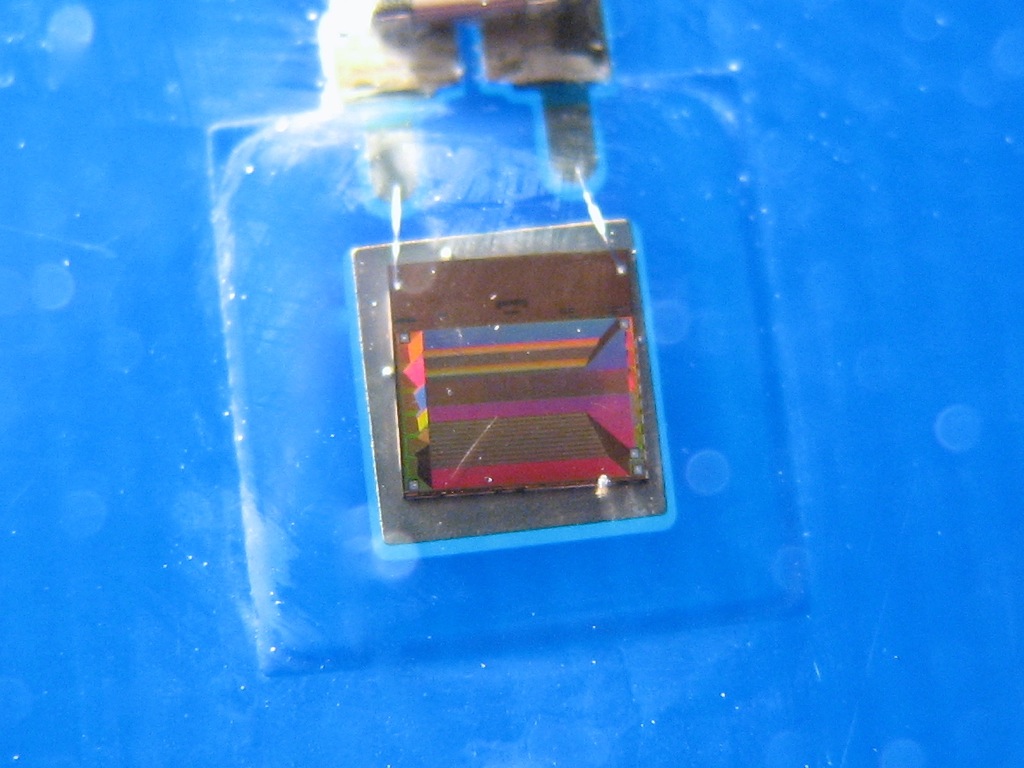

The chip itself is really quite unusual. It’s actually fabbed as an RF device with a huge number of turns of wire– possibly as a planar RF transformer. Viewed with the light from some angles, you can really start to make out the structure of the chip. (Alternate view here.)

Thin!

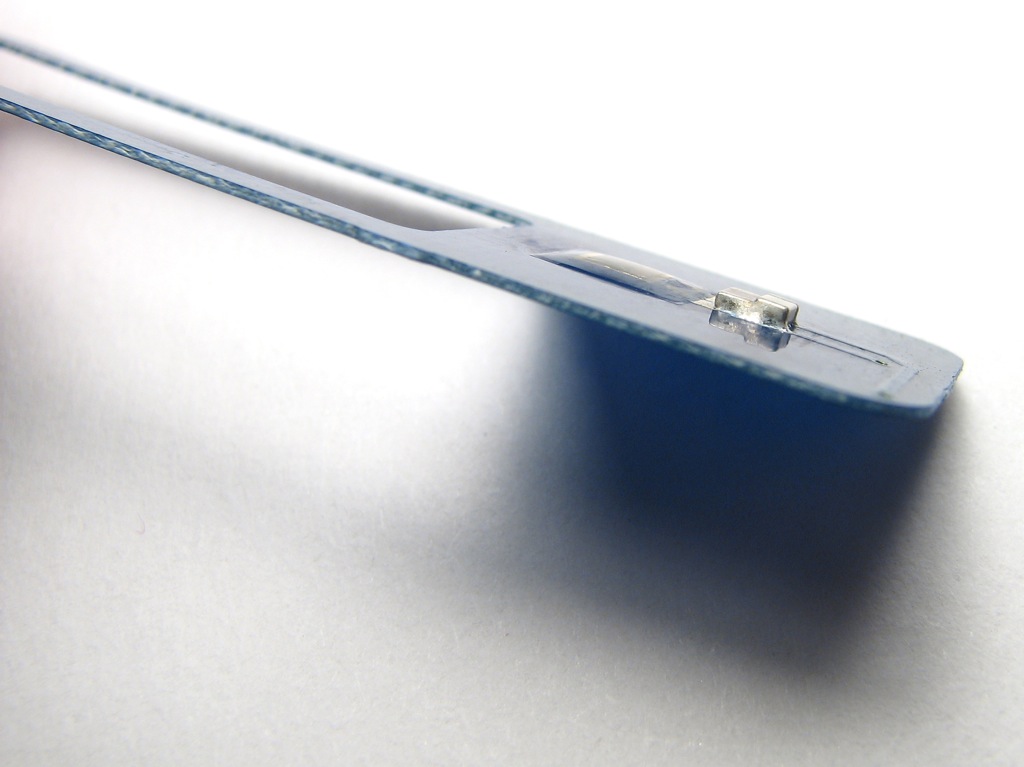

One interesting thing is that the circuit board is incredibly thin– approximately 1/4 the thickness of standard 1/16″ circuit boards, which happens to be pretty close to the thickness of a standard credit card.



It’s flexible and fairly translucent. You do need to be a little bit careful because ceramic capacitors (like the ones on this board) have a tendency to break if you bend the board that they are soldered to.

Of course, we can now give our RFID element any kind of a case mod that we see fit. One thing that would be easy to do is just to embed it in the side of a wallet. You could also embed it in any one of the millions of things that have become USB thumb drives in the last few years.

You can also image getting a little more serious, putting your own loop antenna on, and changing the geometry somewhat. Maybe you can make your own PayPass wristwatch.

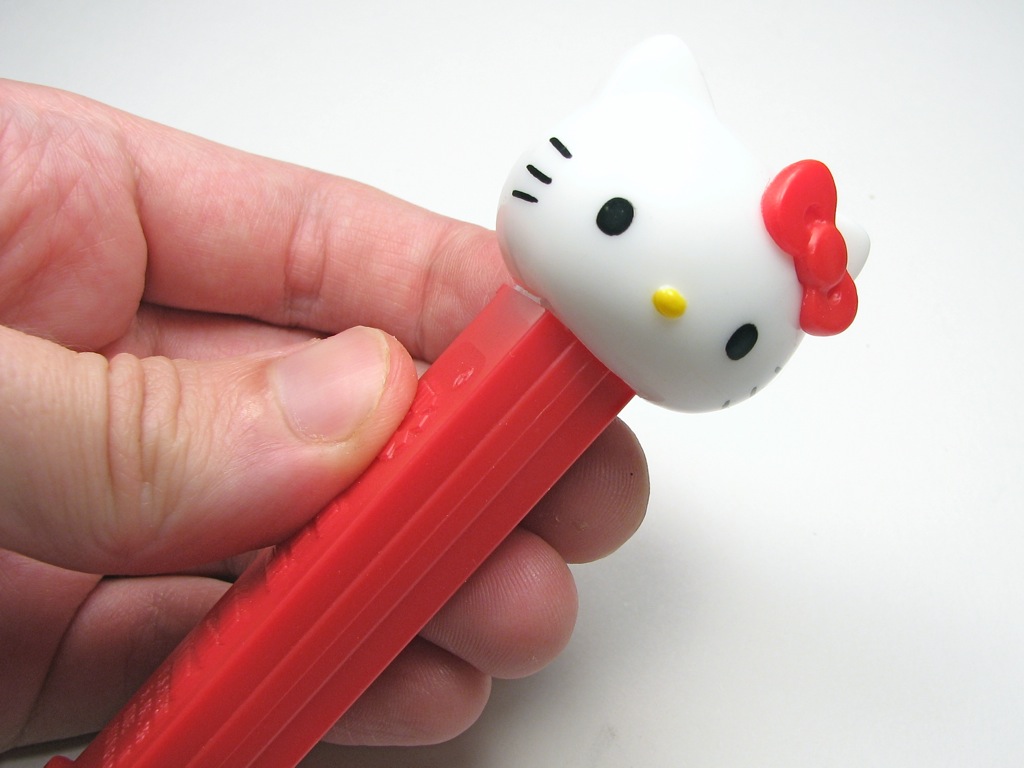

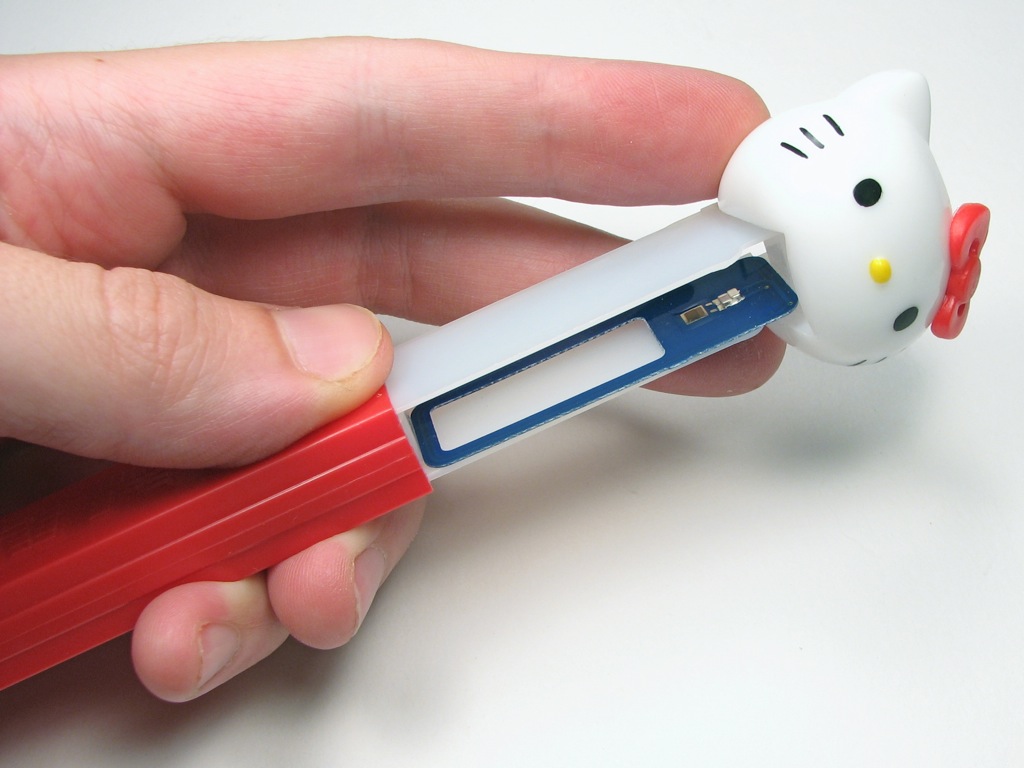

For the sake of absurdity, here is one overly large, silly, and seriously impractical case that you could use: it’s “Hello Credit.”
Spinal Credit   Hello credit
If you come up with other interesting mods for these guys, we’d like to see them. Please add them to the Evil Mad Science Auxiliary on Flickr.
