Nothing makes us more gleefully happy than taking things apart. On the table today: a pedometer. Lots of gory pictures after the jump.


Pedometer take-apart   Pedometer take-apart

I put a sticker on my pedometer to hide the corporate logo. The hinge is in a funny place – it opens downward, which was never what I expected. It clips onto your waistband and when you open it up, you can read your step count. It always seemed upside down to me unless I was actually wearing it.
Pedometer take-apart

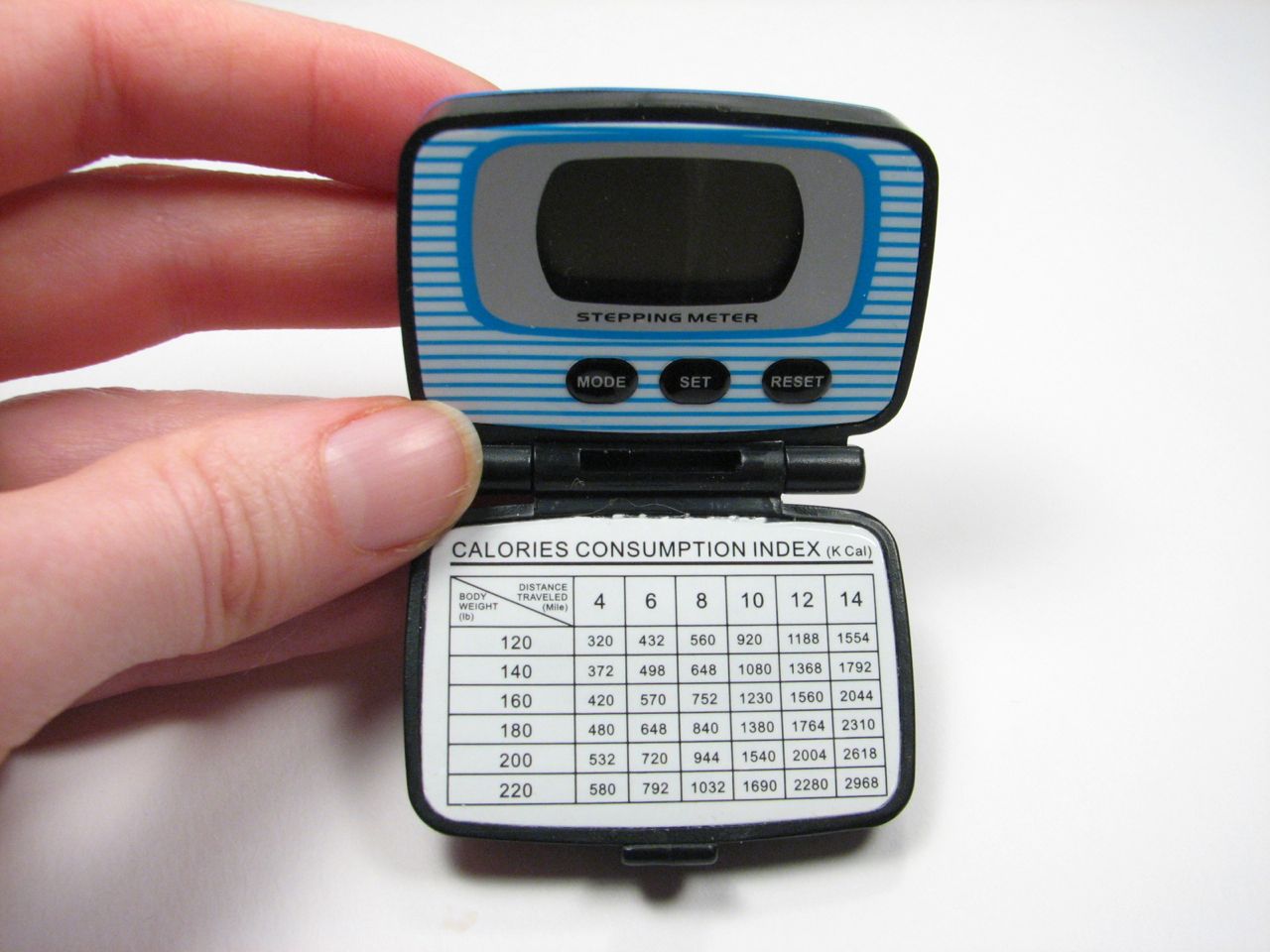

It came with two stickers to put on the clip side of the plastic body – one metric, the other “standard.” I didn’t pay much attention to this “calories consumption index” since I was only using the pedometer for a walk-a-thon. The walk-a-thon is over now, so let’s take apart the pedometer! Pedometer take-apart

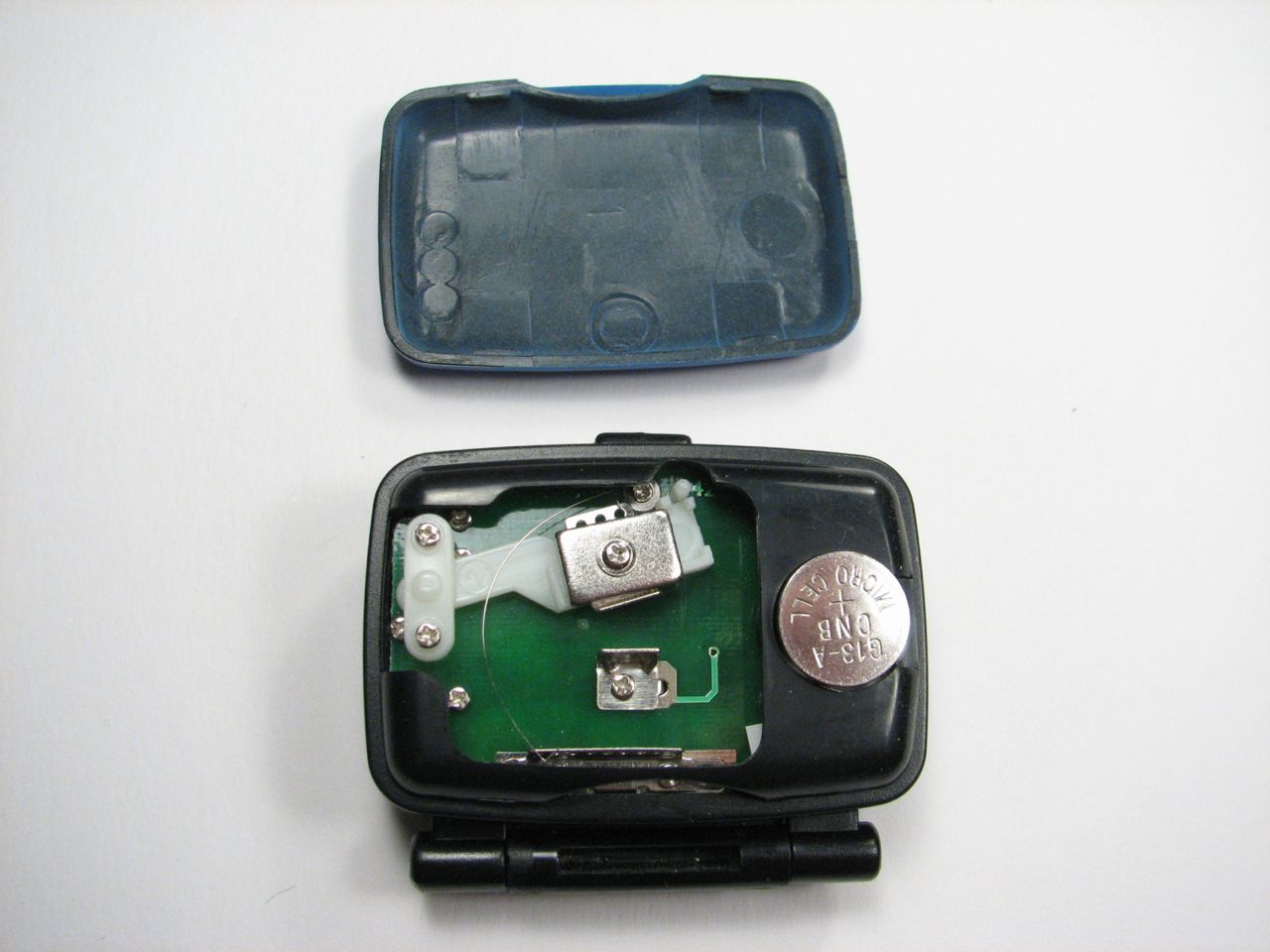

Step one: pop off the battery cover. Needs a quarter and a lot of force. As you walk, the arm swings down. When the arm hits the bracket, the count is increased. The itty-bitty thin wire spring pulls the arm back away from the angle bracket. Pedometer take-apart   Pedometer take-apart

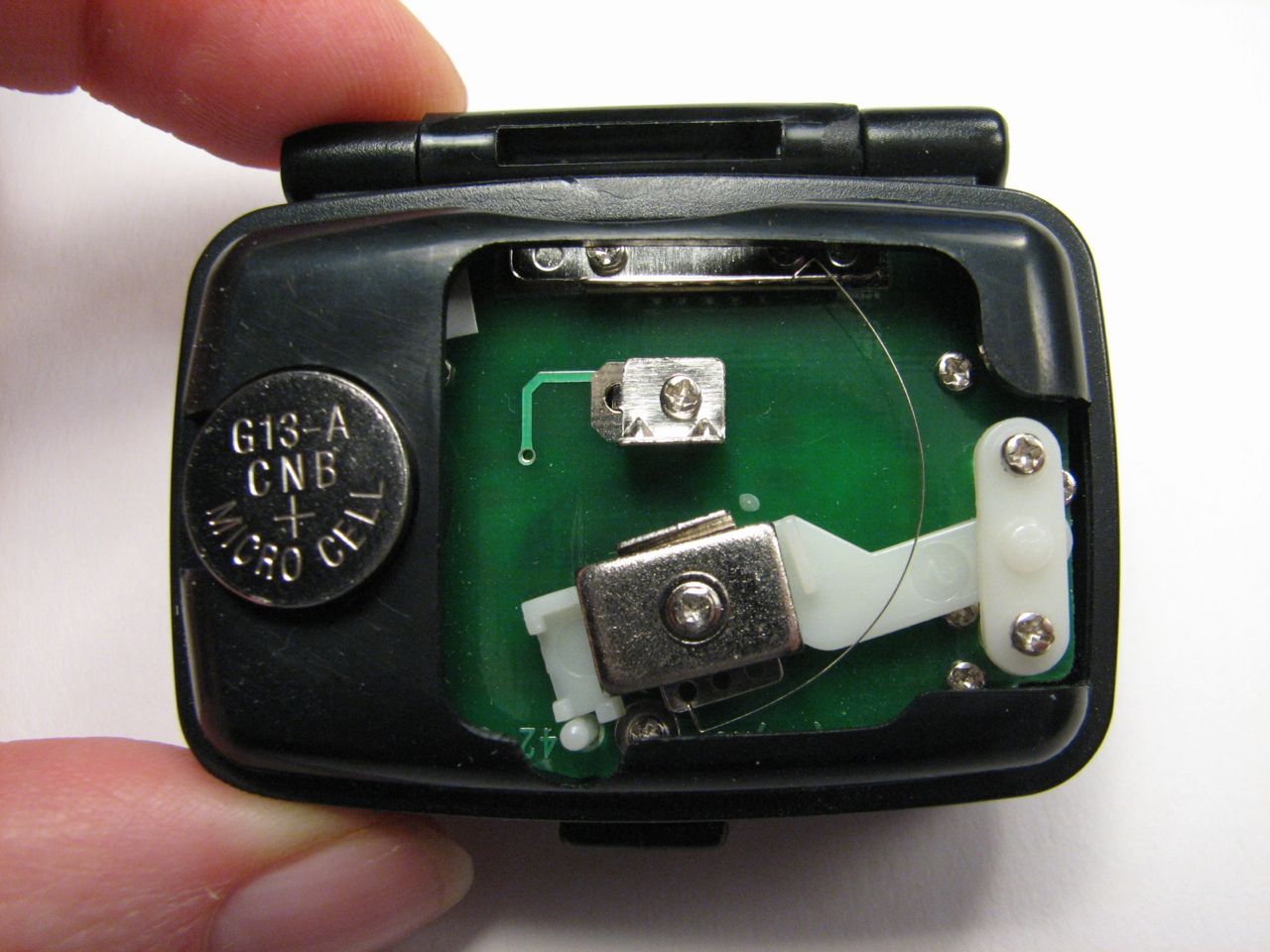

In these pictures I’m actually holding it upside down – the hinge should be on the bottom. You can see how when the arm swings, the circuit is connected via the spring and the metal on the arm. Okay, enough of how it works– lets get back to taking it apart!

Pedometer take-apart

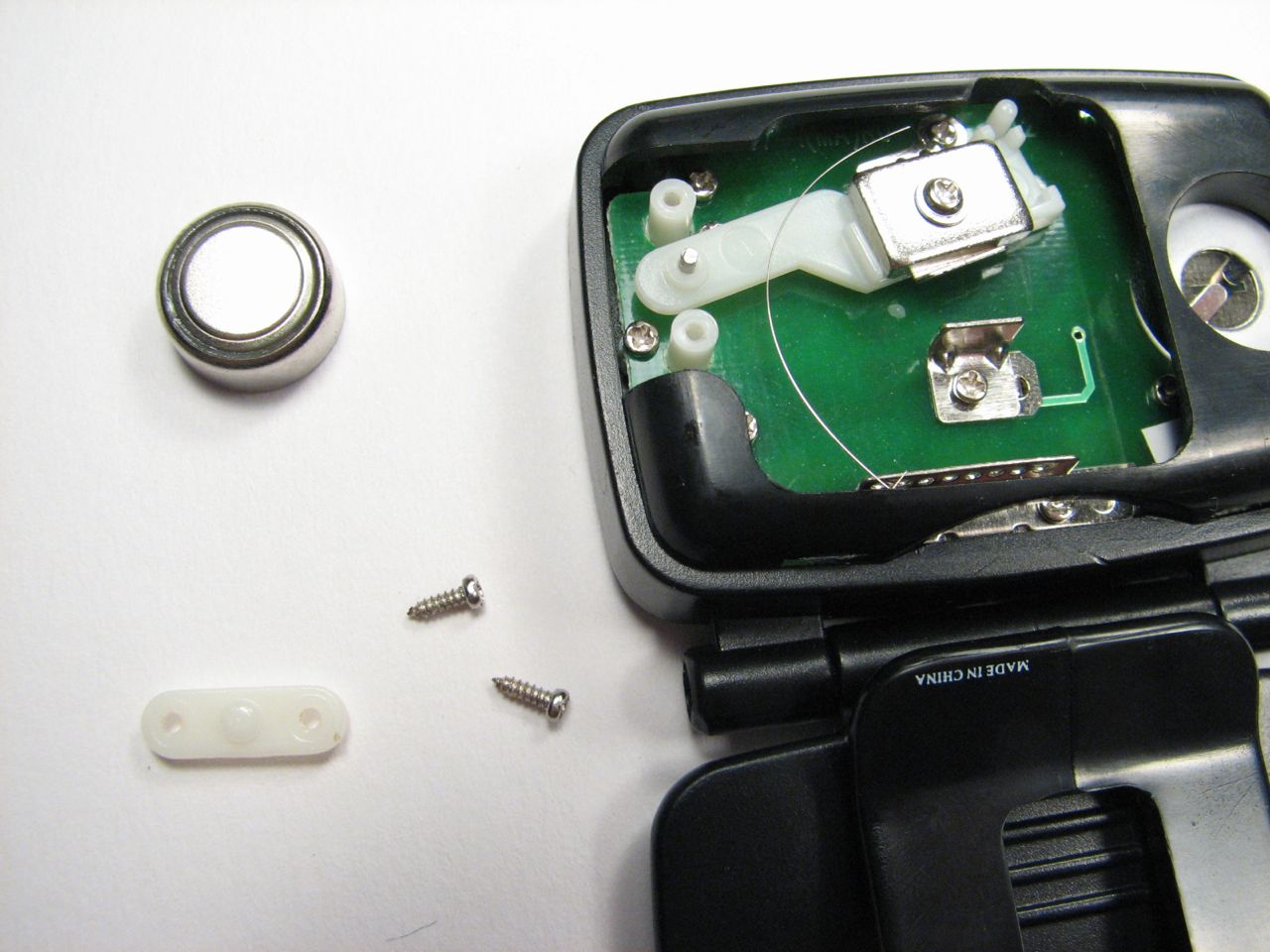

Step two: remove battery and screws holding the bracket for the swing arm.


Pedometer take-apart

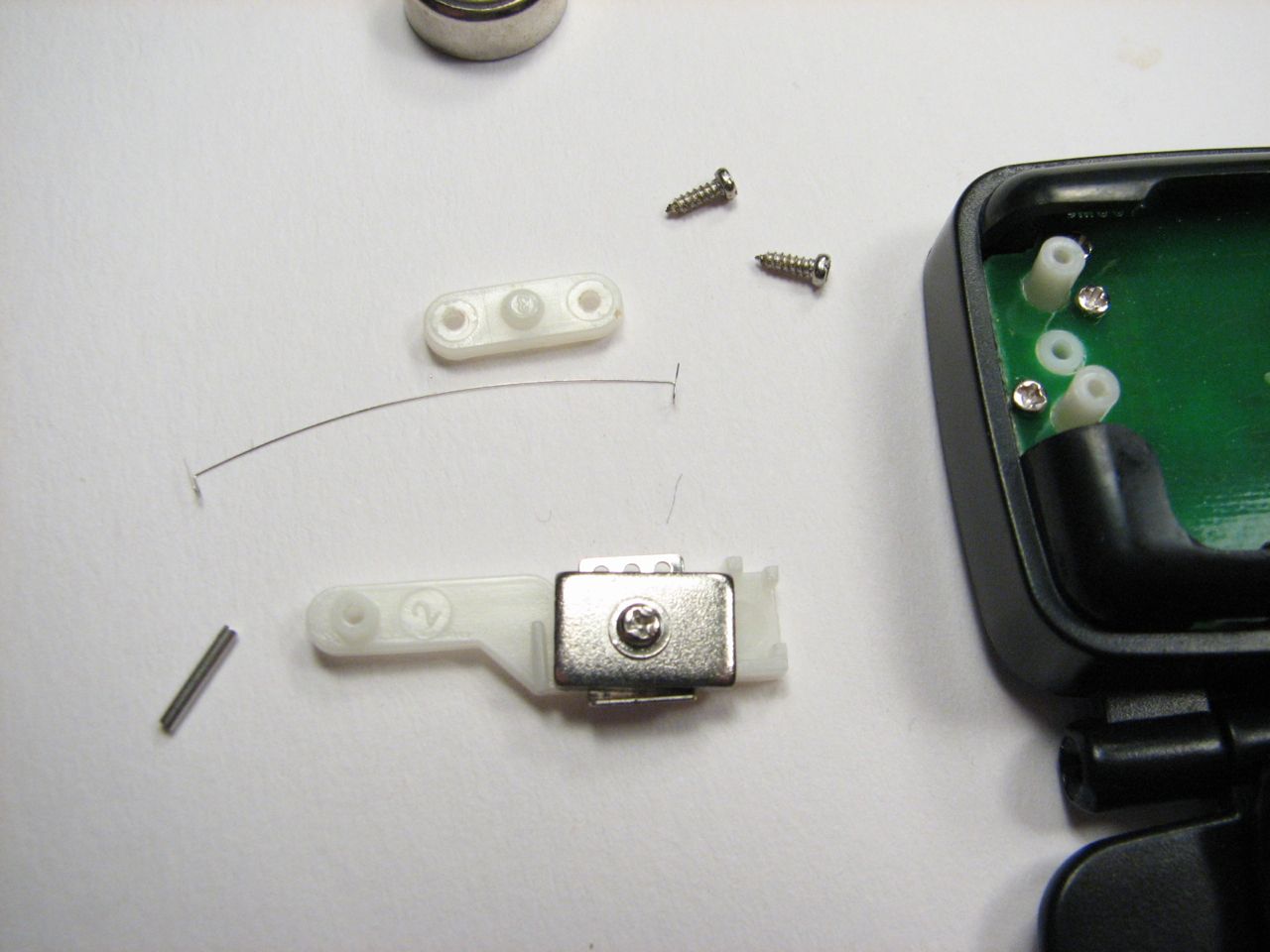

Step three: unhook spring and lift out swing arm. The arm rotates on a metal rod, which will come out now, too.


Pedometer take-apart
Step four: Take the weight and angle bracket off of the swing arm, and remove angle bracket from circuit board. Also remove two more screws which have become accessible. That’s all we can get at from this side for now.





Pedometer take-apart   Pedometer take-apart

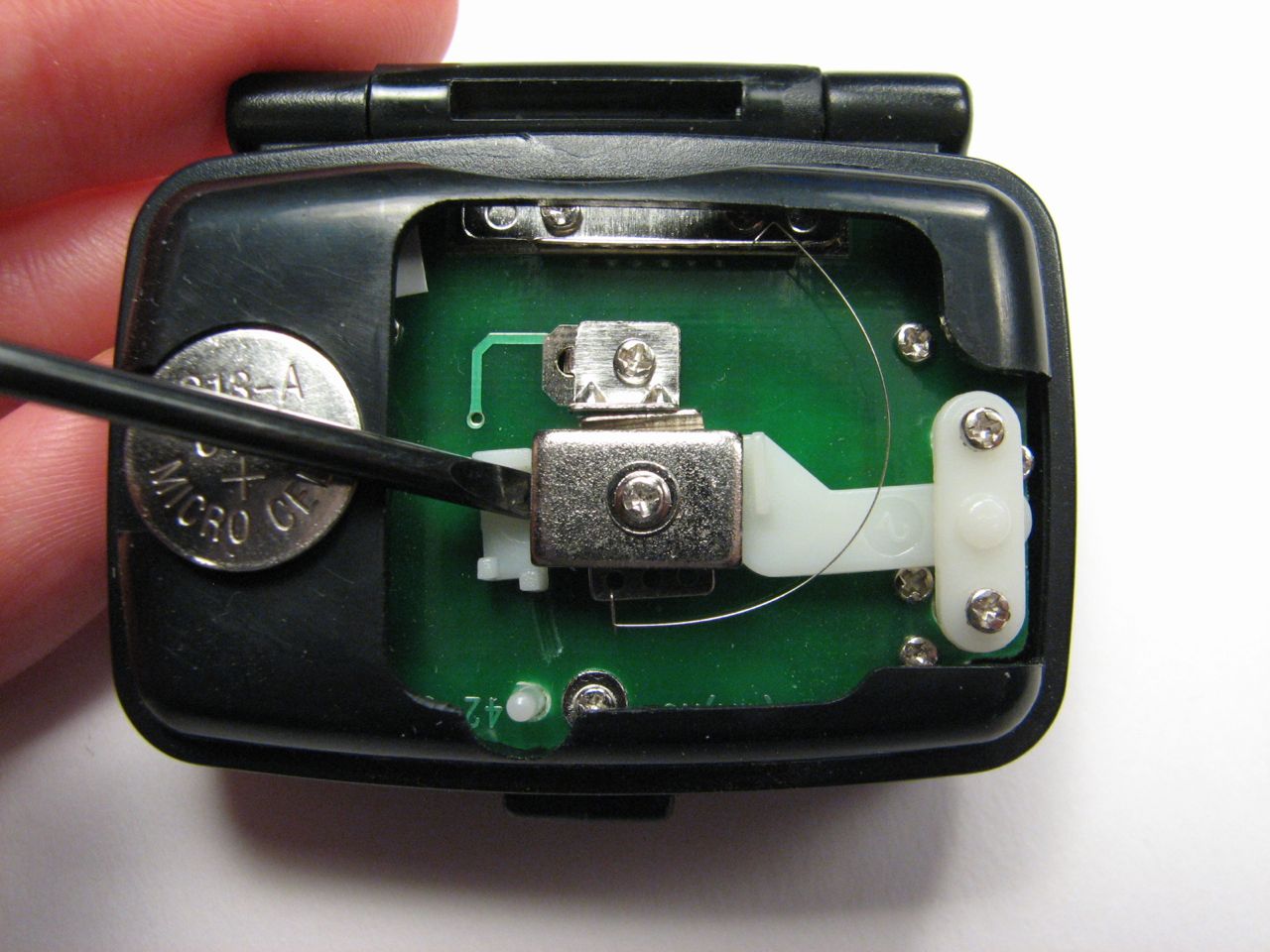

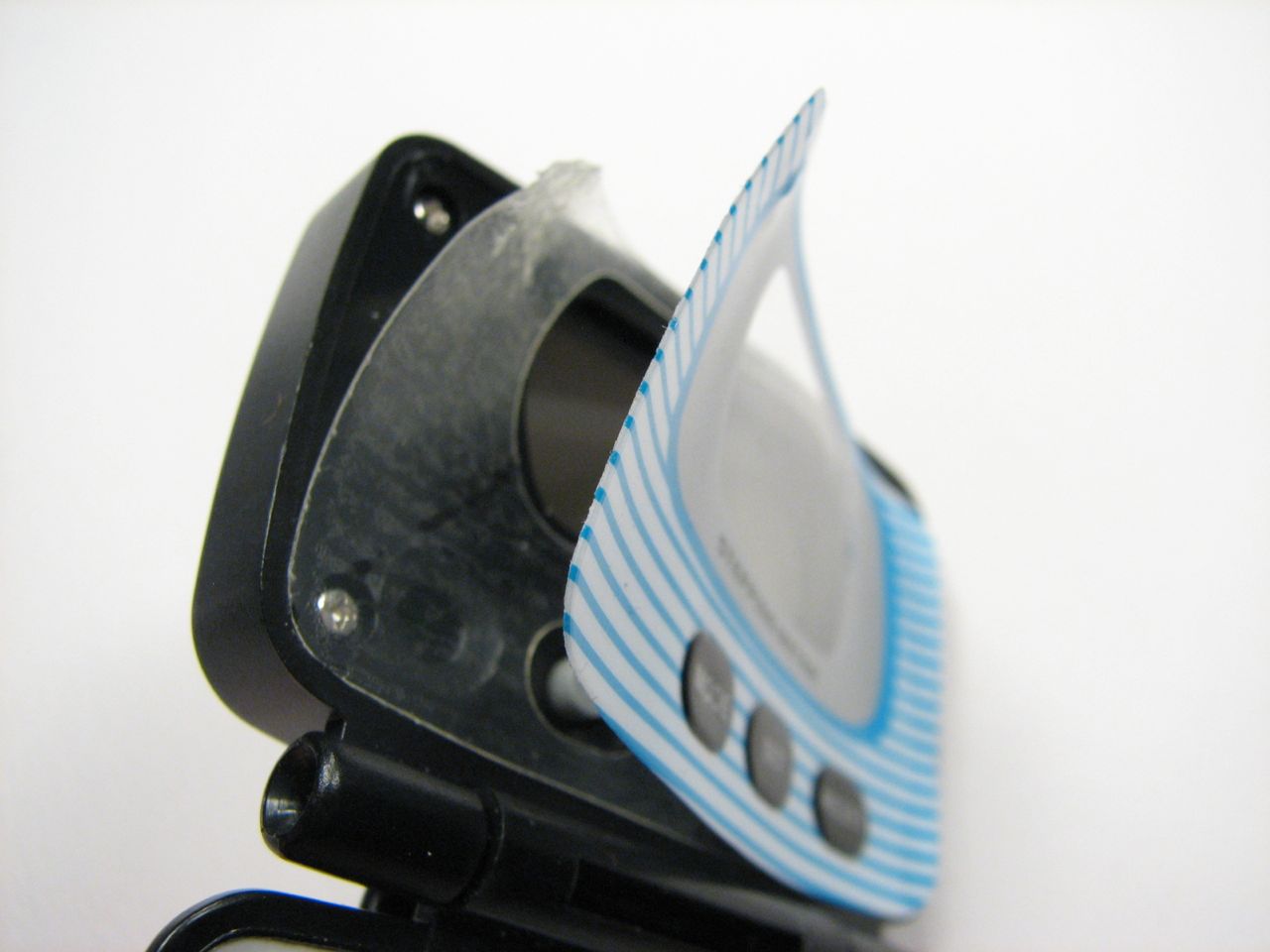

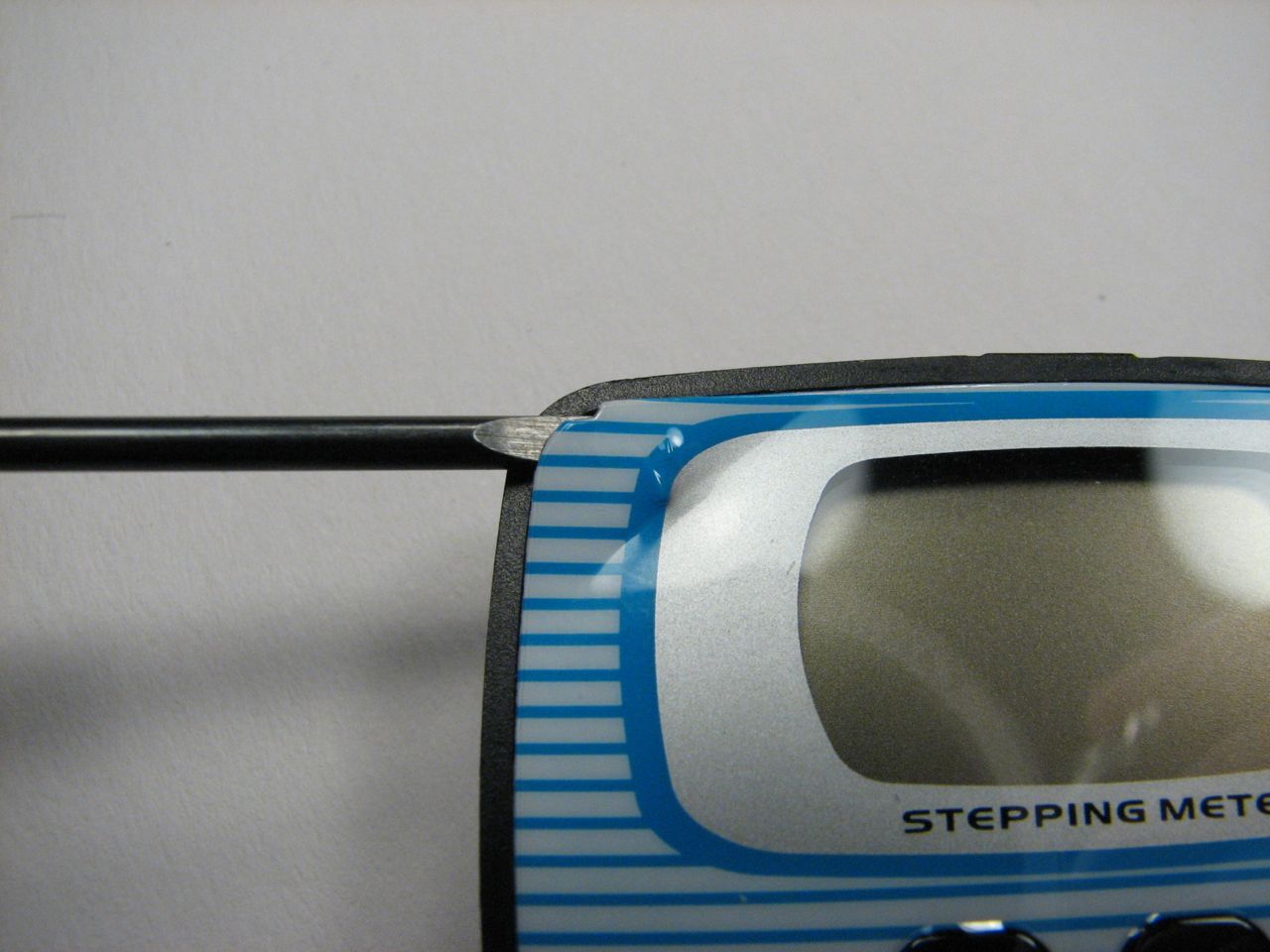

Step five: pry off the face plate. The face plate cover is secured with a layer of serious adhesive. Both peel off pretty easily once you get something like a screwdriver under the edge.
Pedometer take-apart
The face of the pedometer now looks much better – rather like something out of Star Trek. It has lost its corporate give-away feel.
Interestingly, there is a hole for an extra button. There must have been a redesign somewhere along the way.





Pedometer take-apart   Pedometer take-apart

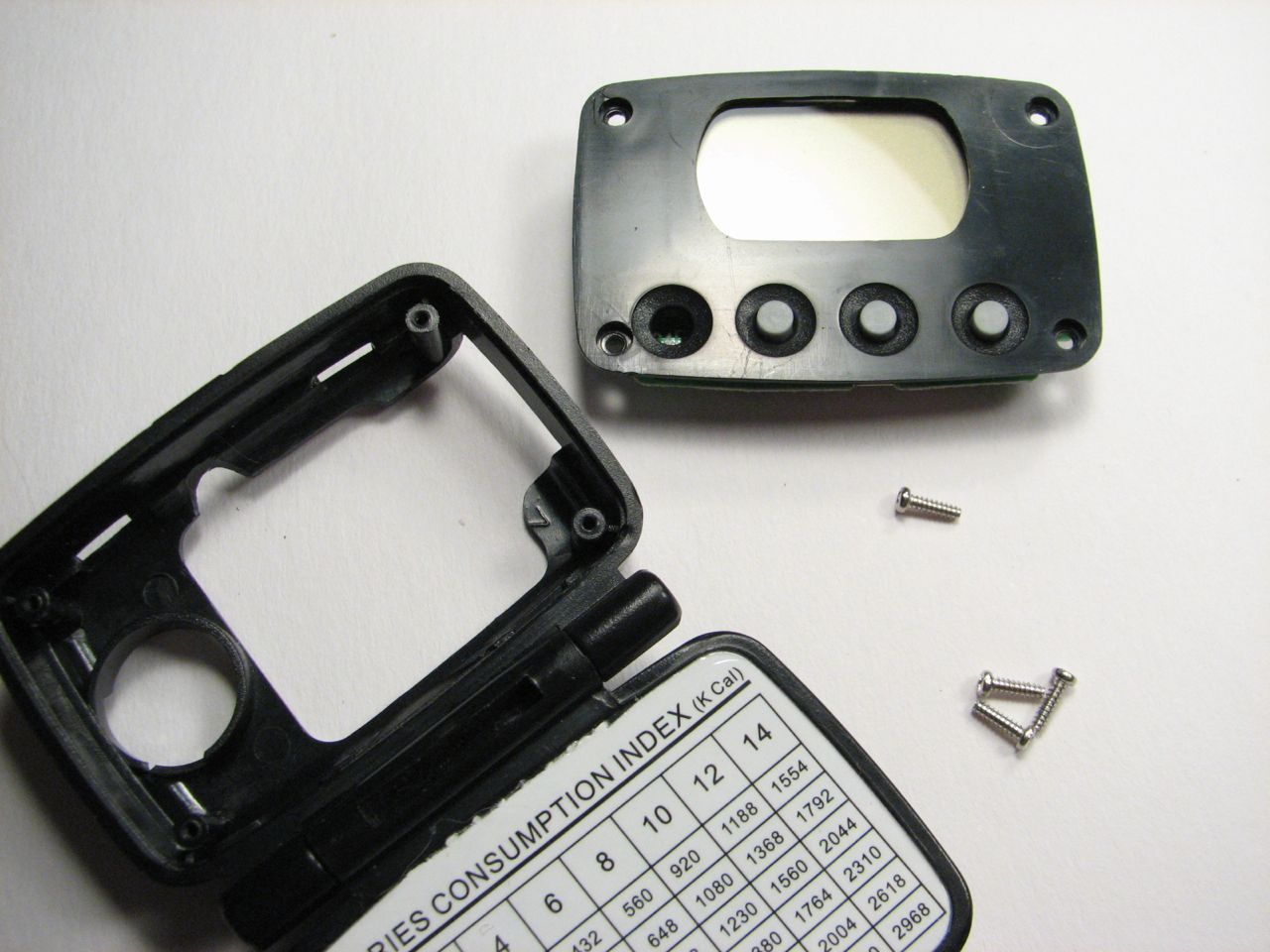

Step six: remove the four now-accessible screws and the rest of the shell will come off. Flip it over, and seven more screws are accessible now!

Pedometer take-apart   Pedometer take-apart

Step seven: remove seven more screws. The angle bracket that the spring hooked onto will come free now.

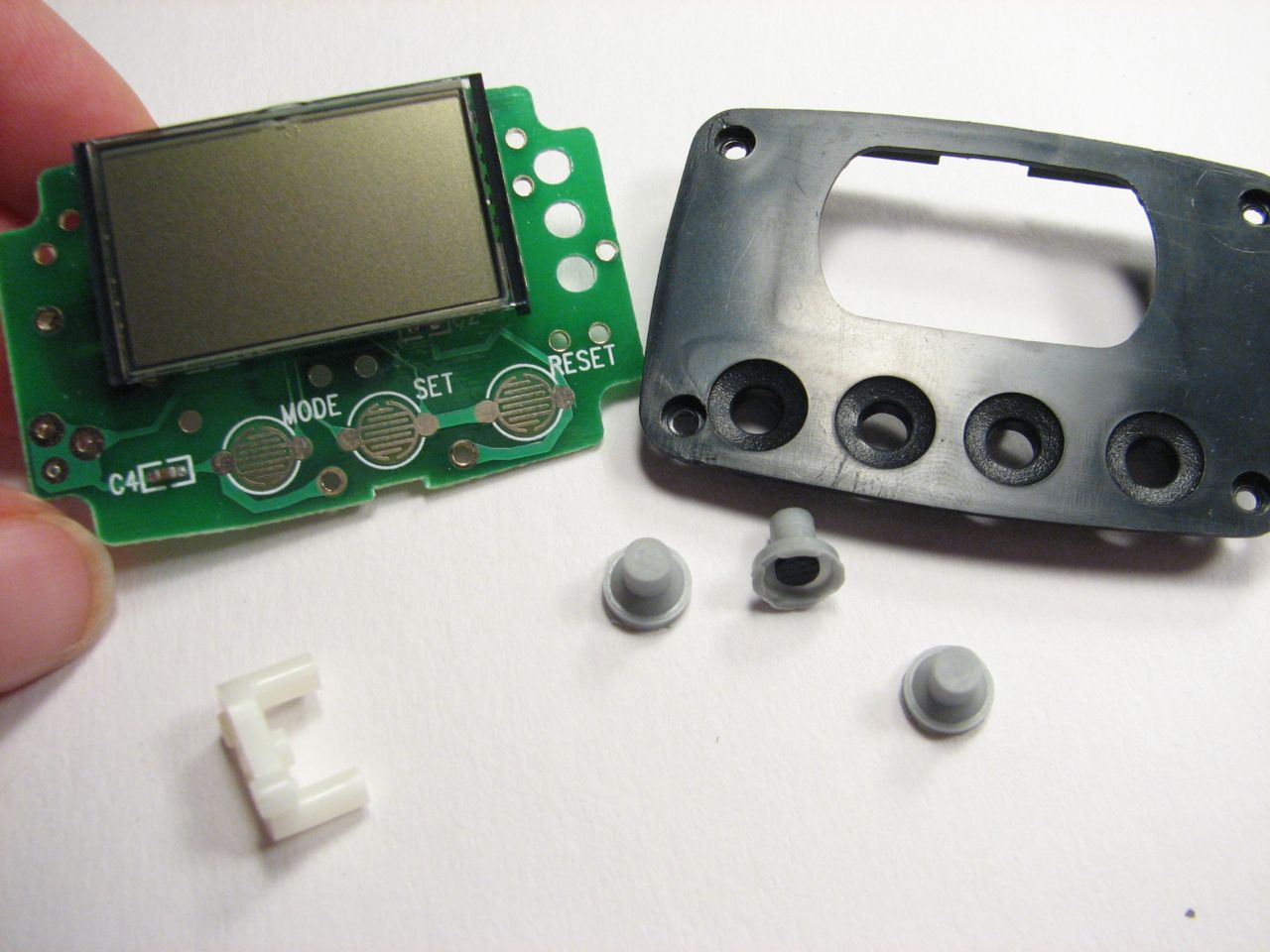

Step eight: pull apart the face plate from the PCB. The buttons will come out now, as will the plastic bracket that held the pin for the arm.
Pedometer take-apart

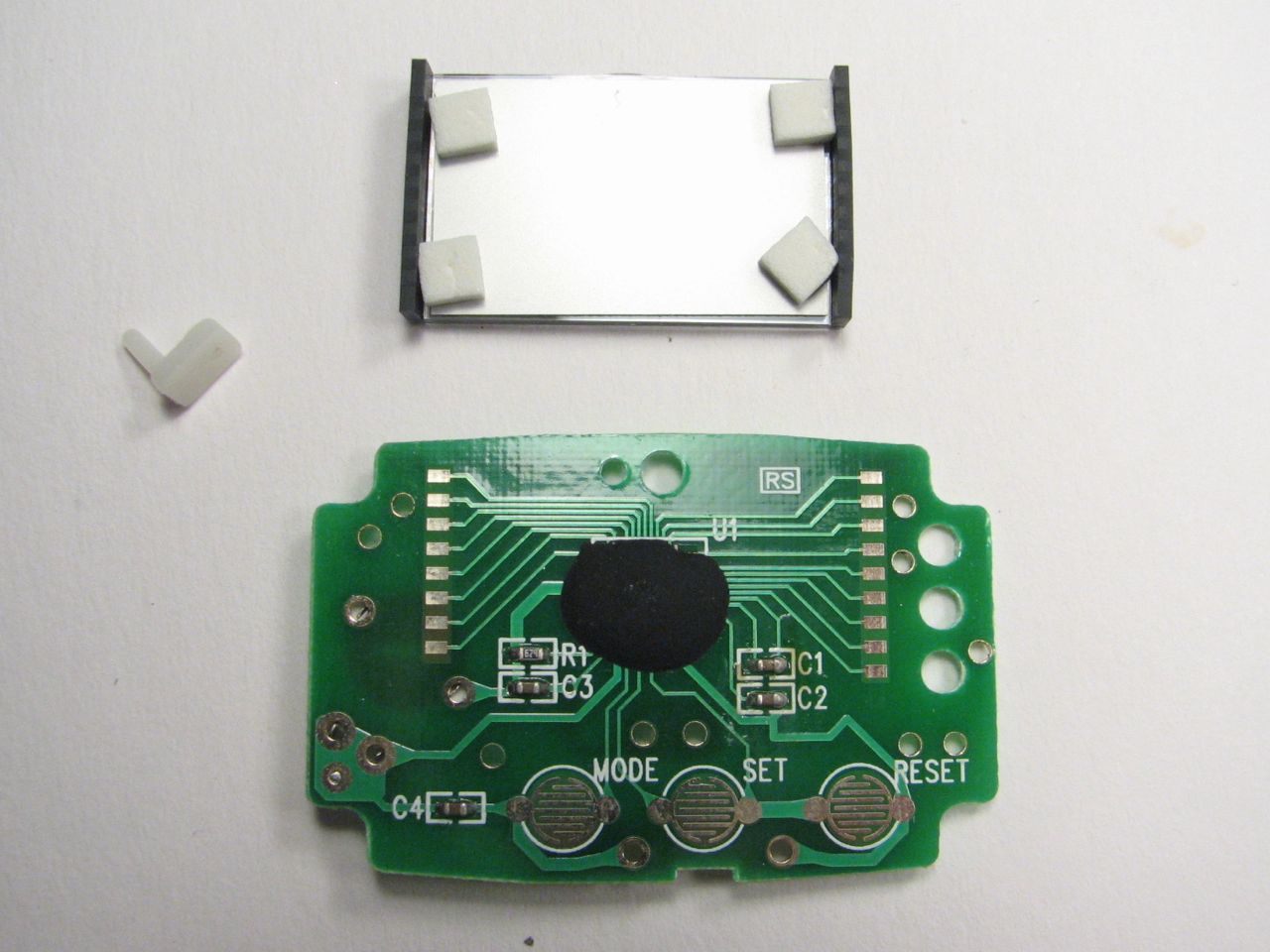

Step nine: pull the LCD away from the PCB. The piece of plastic that stopped the arm from swinging will come out now.
Pedometer take-apart

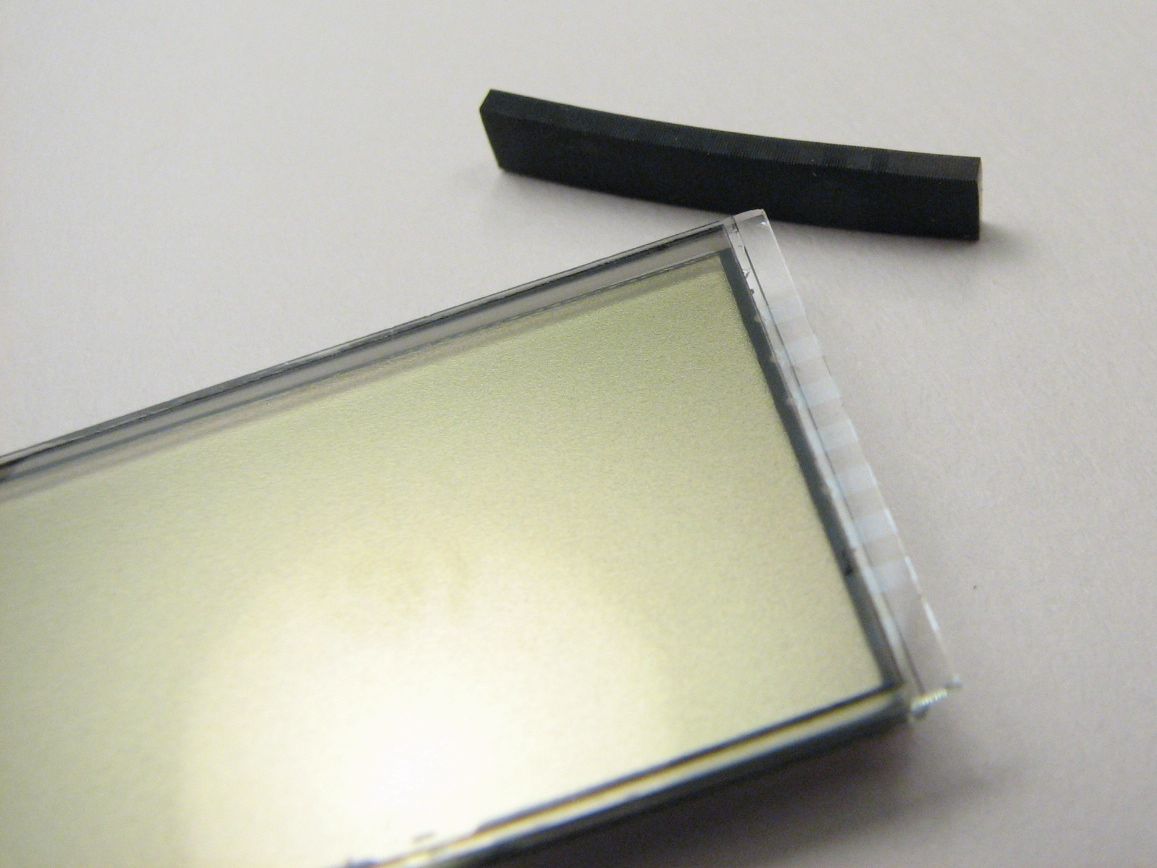

Step ten: pull the rubber connectors away from the LCD. Check out the stripes on the connectors as well as on the LCD! The don’t look much like wires, do they?
Pedometer take-apart   Pedometer take-apart

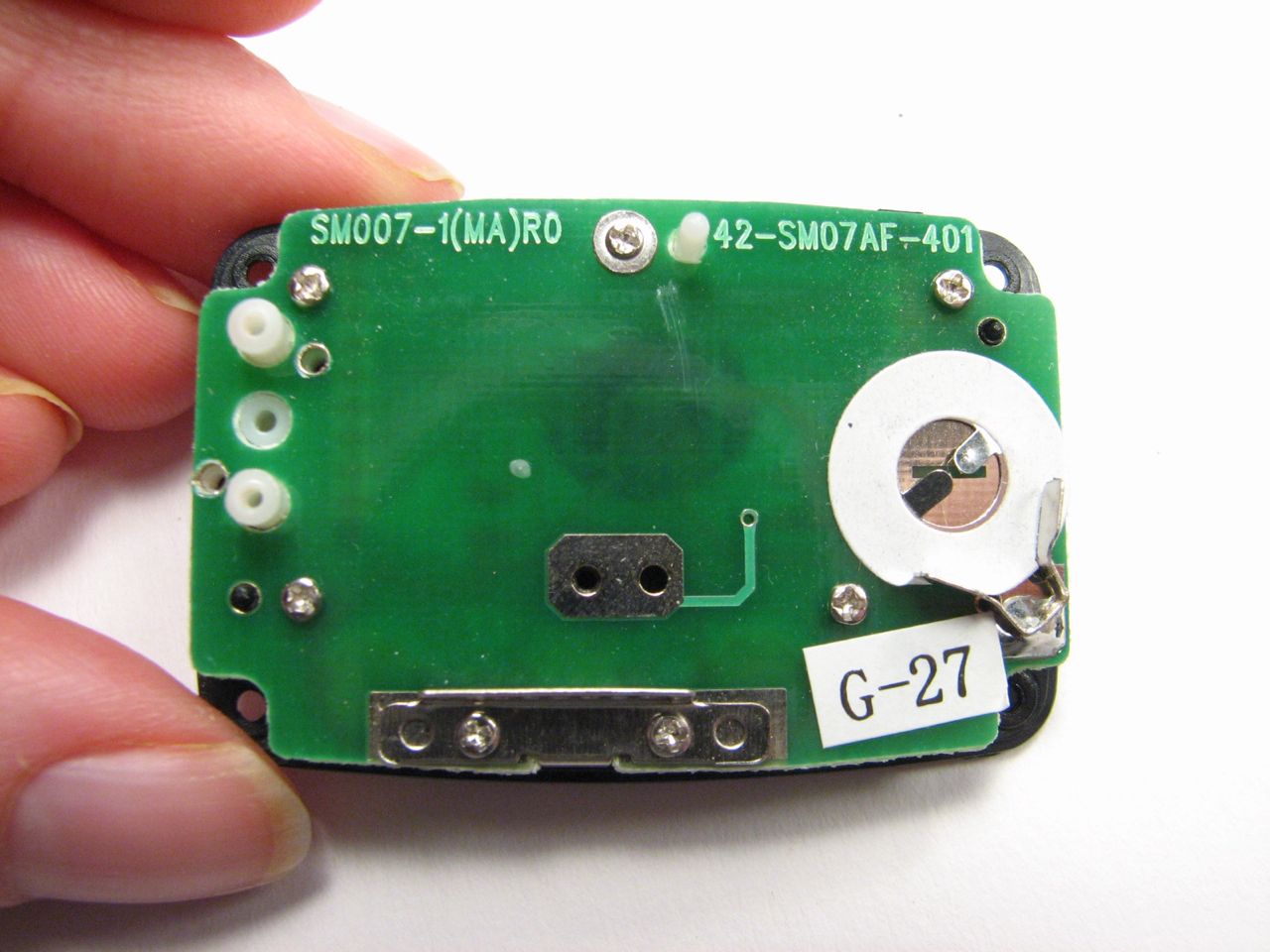

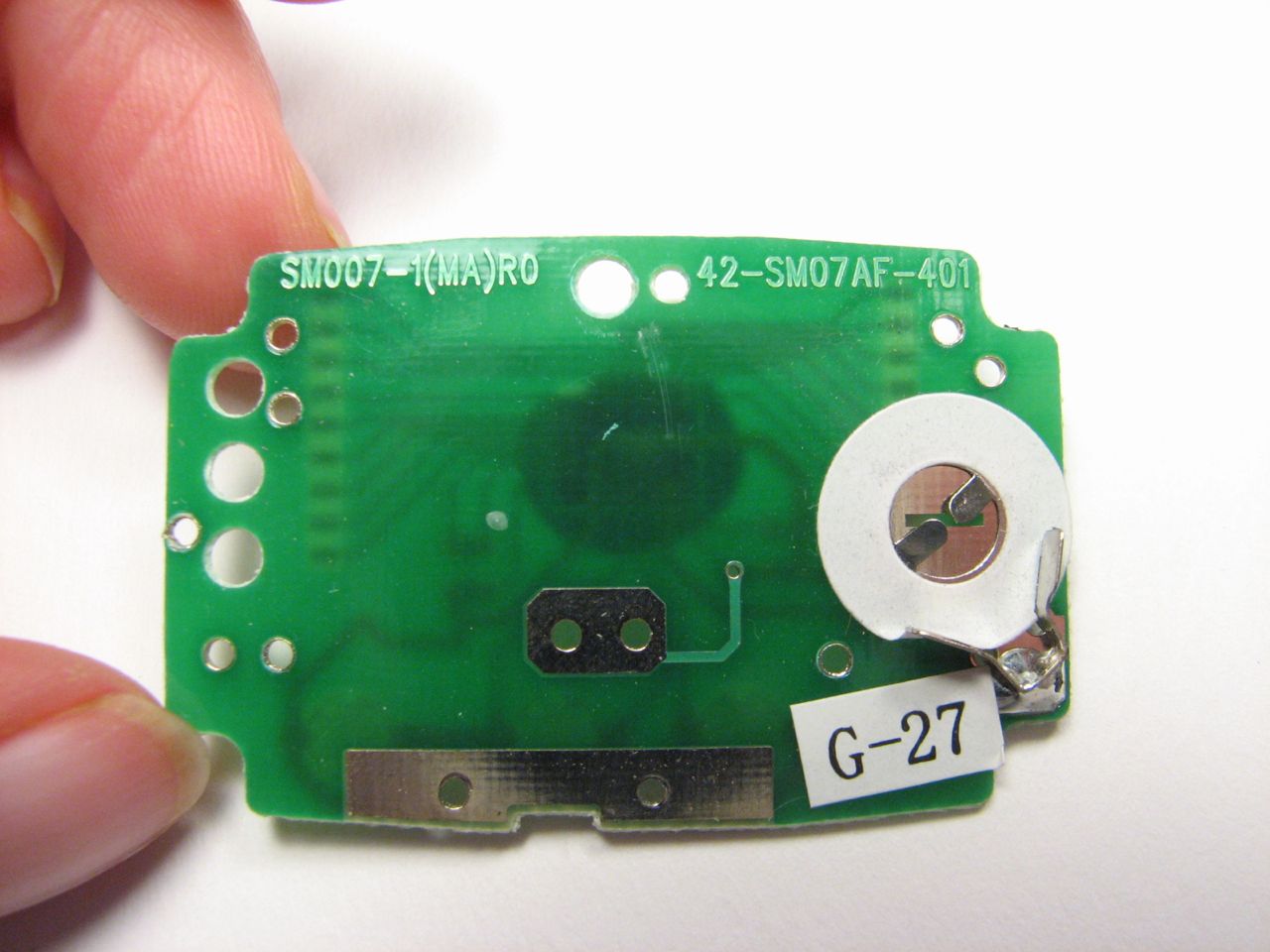

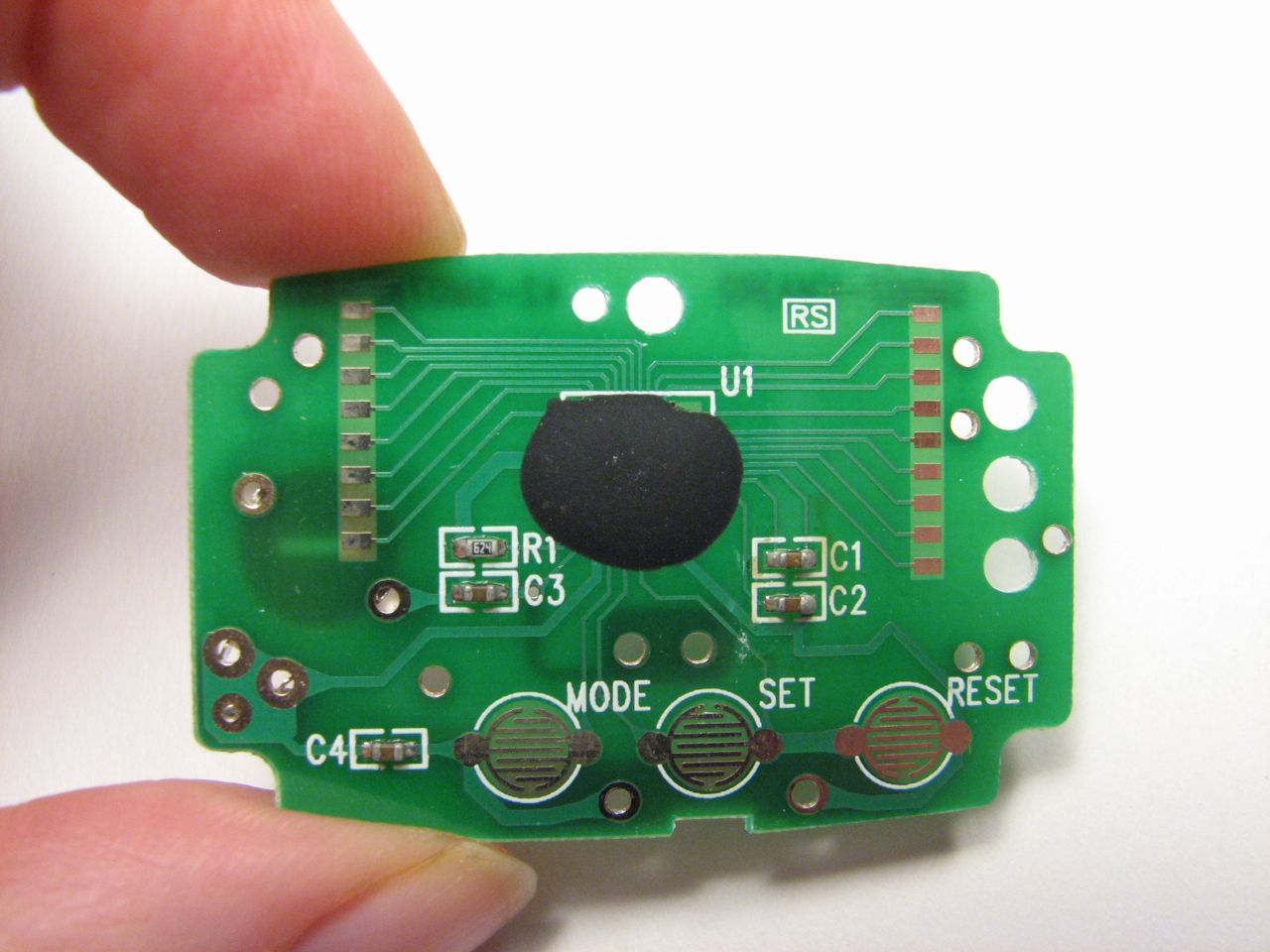

The PCB is rather cute. I like how well labeled the buttons are. Only one more thing to remove…

Pedometer take-apart

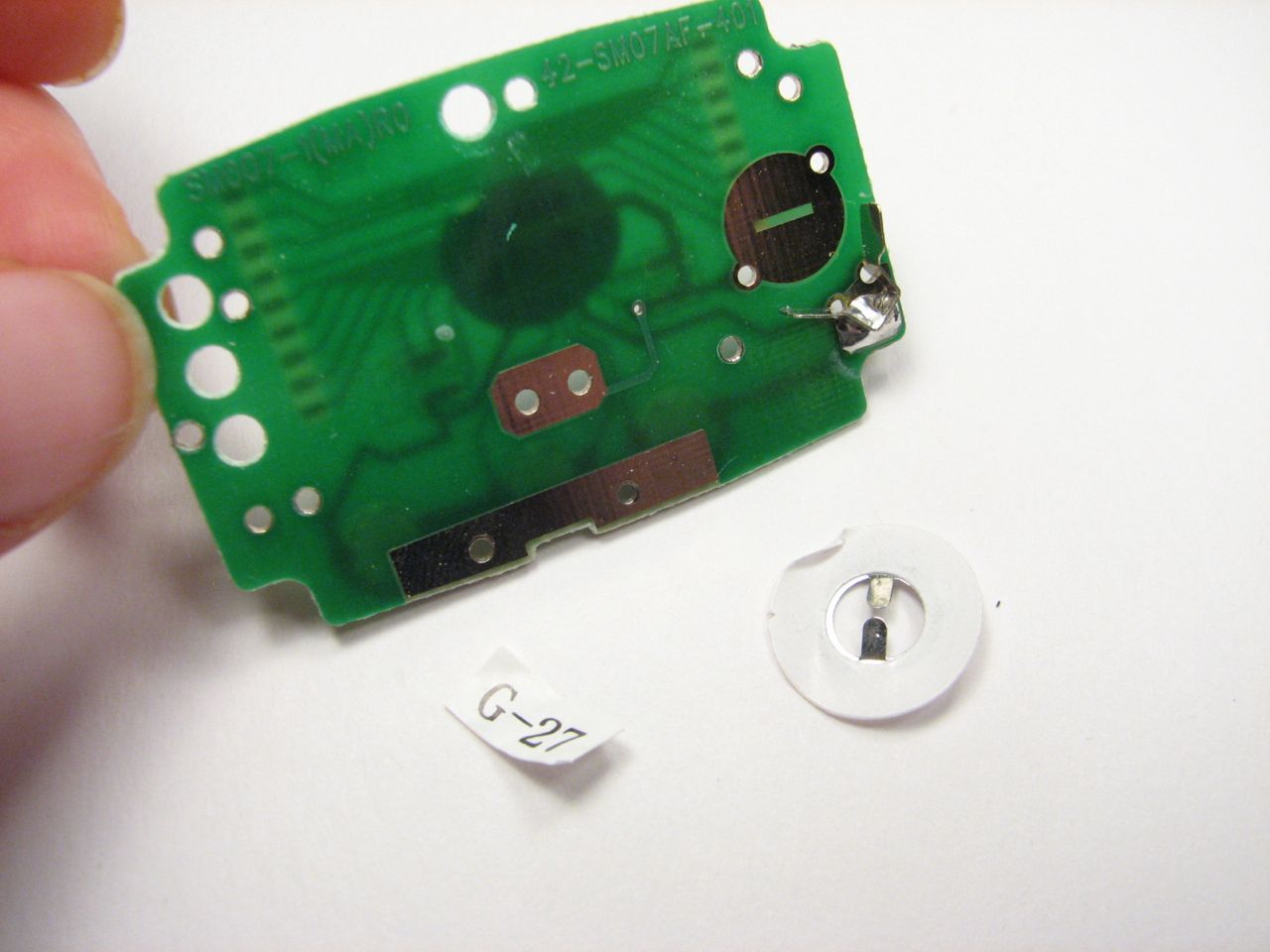

Step eleven: remove the battery spring. The spring, which is just stuck on, pops the battery up for easier removal and replacement. It also guarantees a reset when you open the case, since it disconnects the battery.
All the parts

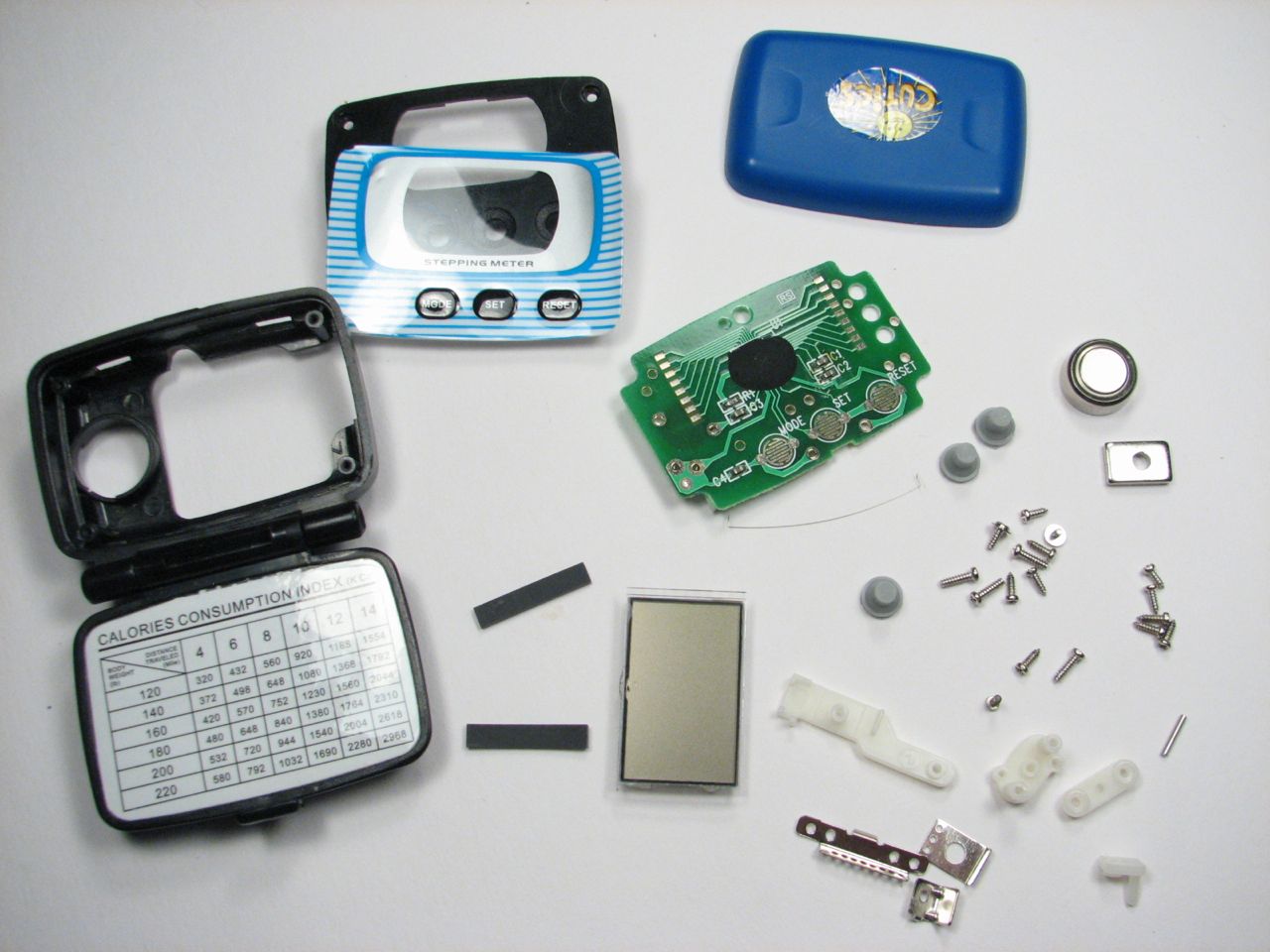

Here are all the parts: 1 PCB, 1 weight, 1 pin, 1 wire spring, 1 battery, 1 adhesive spring for the battery, 1 piece of adhesive, 1 plastic faceplate cover, 1 plastic faceplate, 1 hinged case, 1 back cover, 1 LCD, 2 rubber connectors, 3 buttons, 3 angled brackets, 4 plastic arm assembly parts and 17 screws (of four different types).

I didn’t count the individual parts on the PCB, since I didn’t desolder them. I don’t have much use for surface mount resistors and capacitors, and they look cute where they are. But all those screws…I had no idea you could fit seventeen screws into a case that small. Or that you would want to. Interestingly, many of those screws were used to secure electrical connections between the angle brackets that connected the arm assembly. It is certainly fun to see how the mechanical interacts with the electronic. Even the wire spring was a part of the circuit.
