New and improved d12 bag: How to build it

D12 bag8

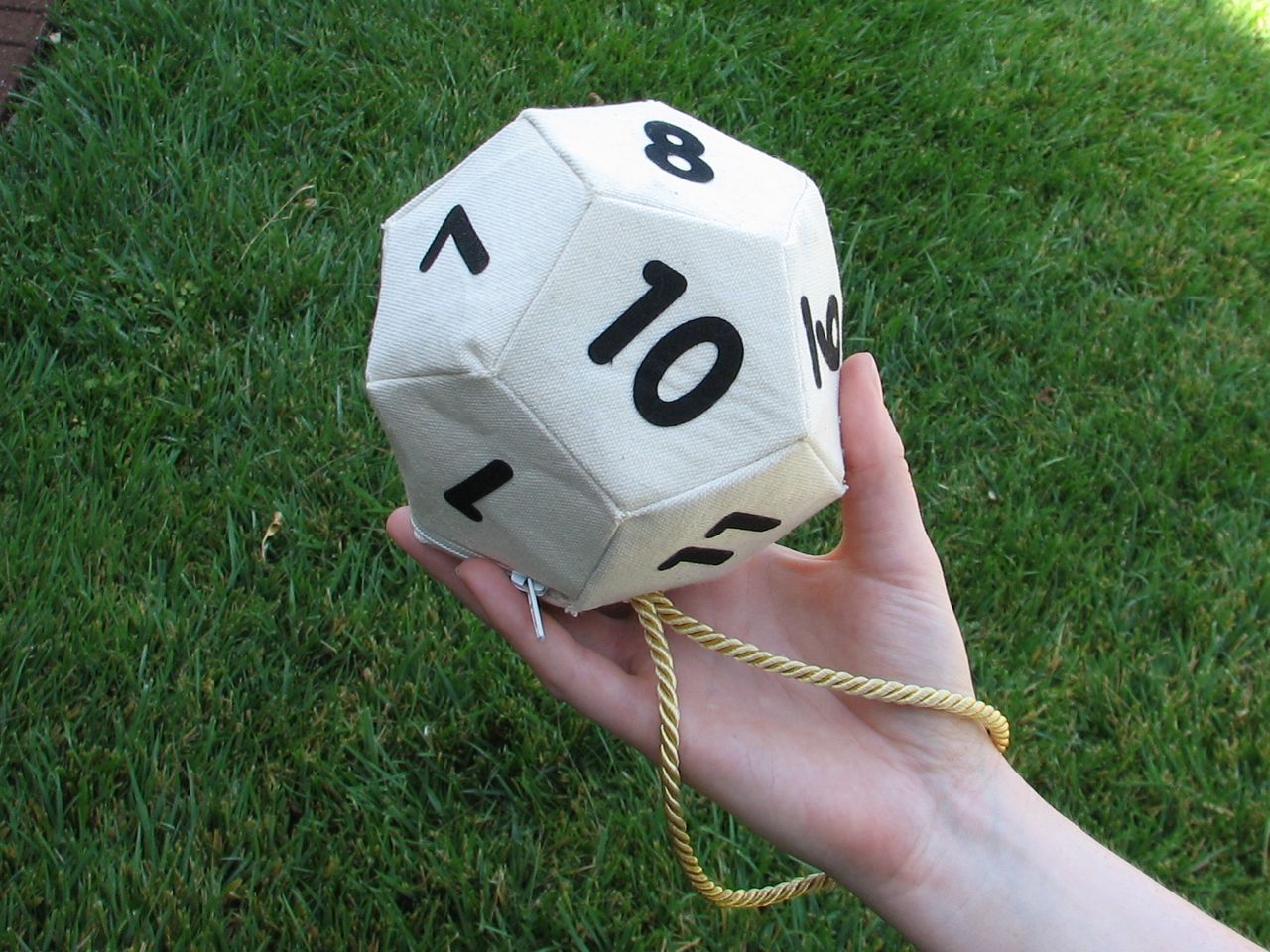

This is the set of build instructions for the updated version of our original retro-dork-chic-DIY D12 handbag.


This accompanies an article about the new version, and the d20 bag that we designed as well.




D12kit

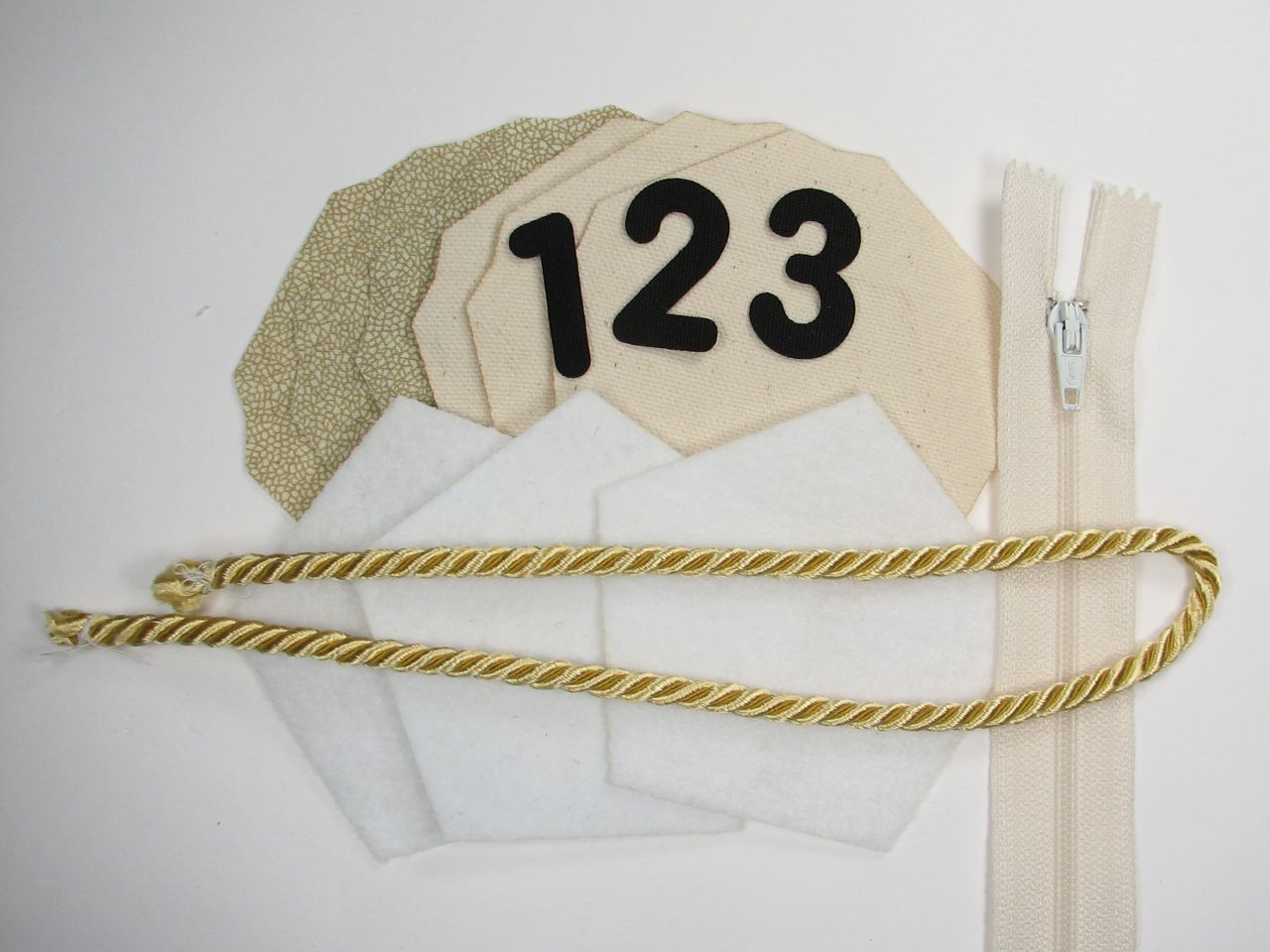

Our kit includes iron-on numbers, iron-on panel stiffeners, canvas outer pieces, soft cotton liner pieces, a zipper and a cord. Assembly takes a few hours and requires thread, needle, scissors, pins and an iron (for fabric, not solder). A sewing machine will make some parts go faster.

If you’re using your own materials, the pattern is available here (24 kB PDF). The zipper length is 9″ and you’ll need about two square feet of each kind of material.




D12 instrux04

D12 instrux05

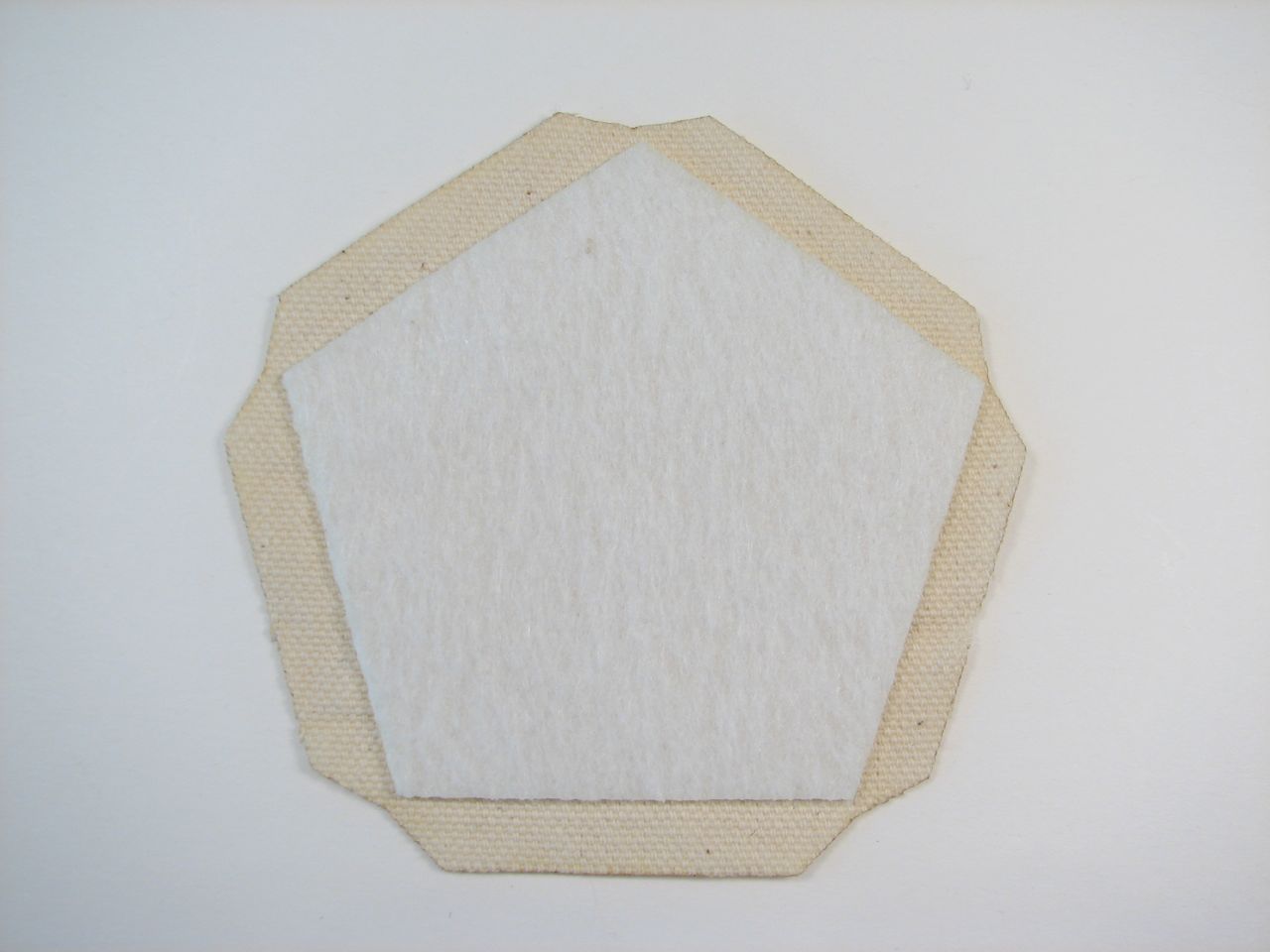

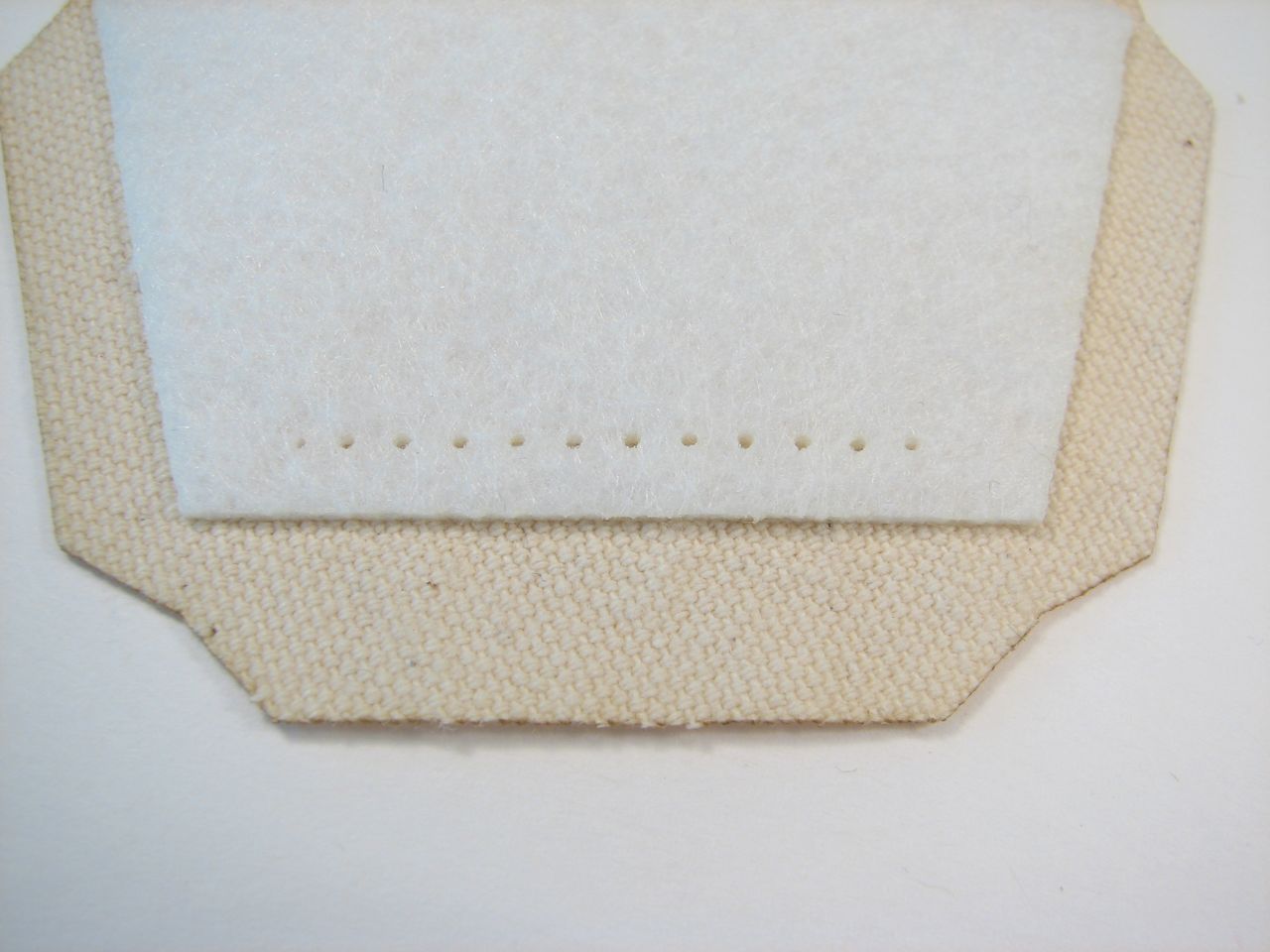

The first step is to iron the stiffeners onto the canvas pieces. A couple of the stiffeners are a little shorter on some of the edges; those edges are marked with a dotted line and indicate that they’ll go next to the zipper. One side of the stiffener is iron-on (may be very smooth like the back of the numbers or may be rough but have a distinctly plastic texture). The iron-on side goes against the canvas.




D12 instrux01

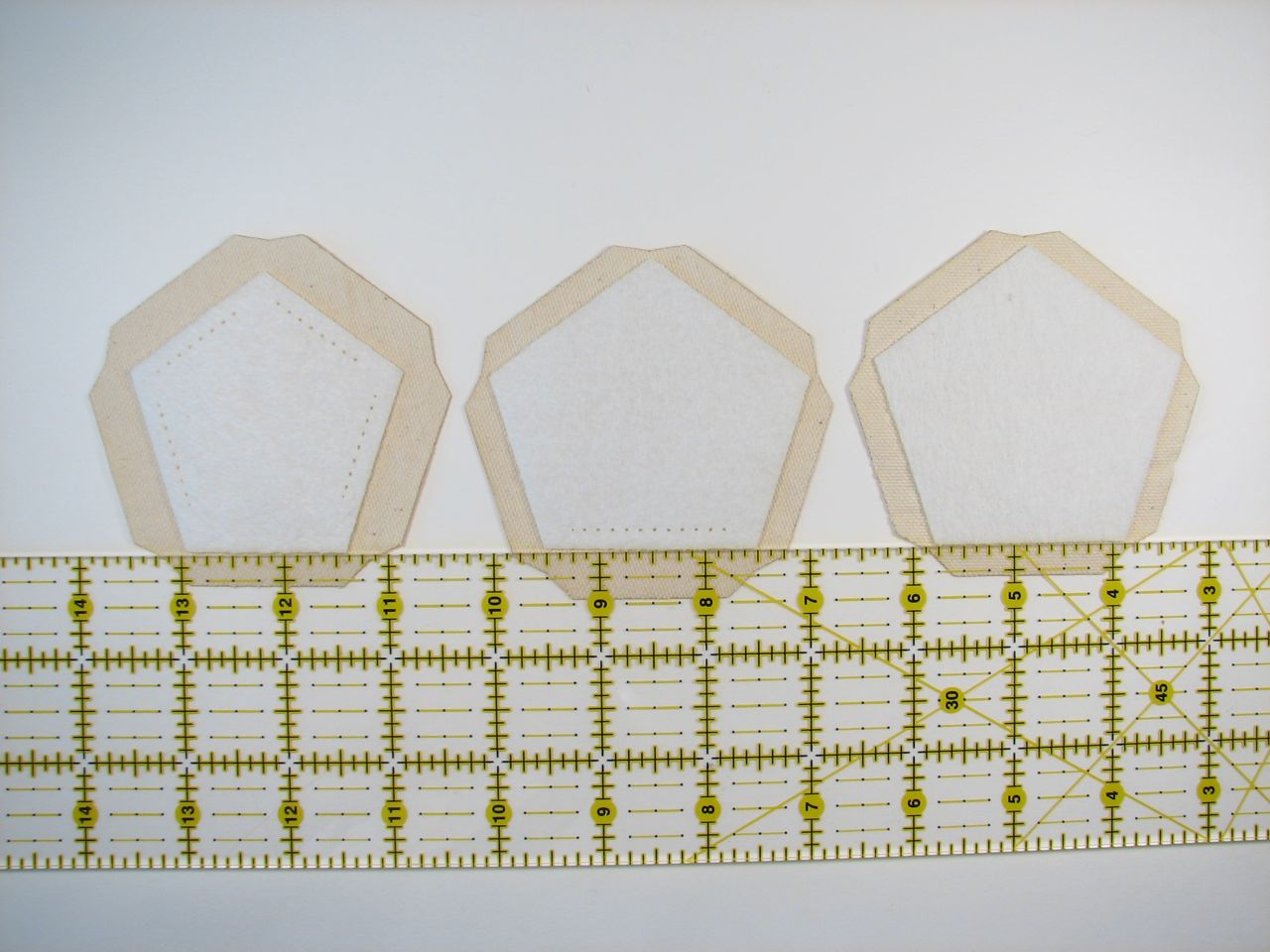

The stiffeners that aren’t perforated can just be centered on the canvas to be ironed on. There is a little more than a quarter-inch allowance around the stiffener. For the edges that go next to the zipper, the allowance will be about a half-inch.




D12kit2

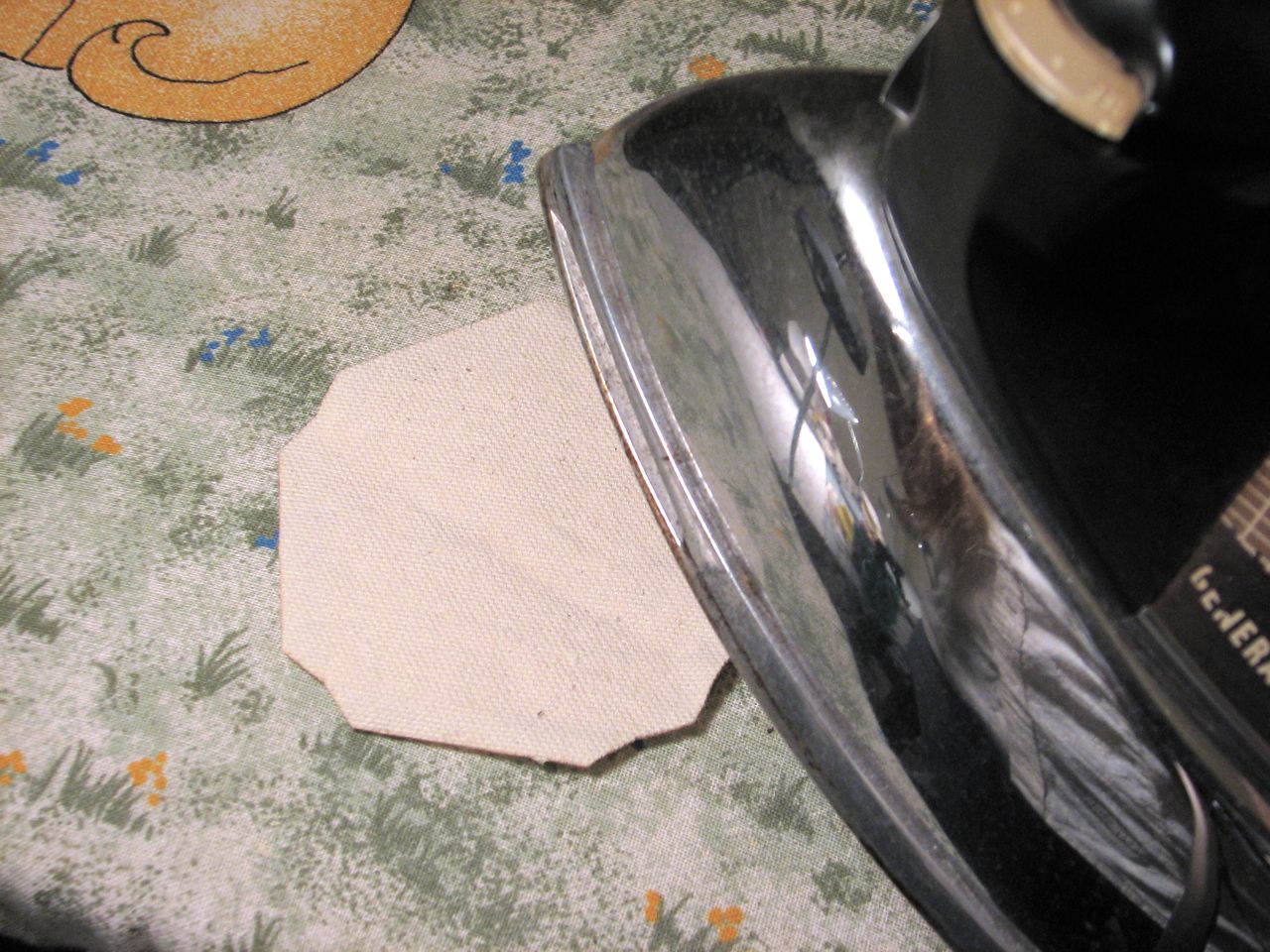

Position the stiffener, then place canvas-side up on your ironing board and place a hot dry iron over the top and press without moving the iron for 5-8 seconds.




D12kit3

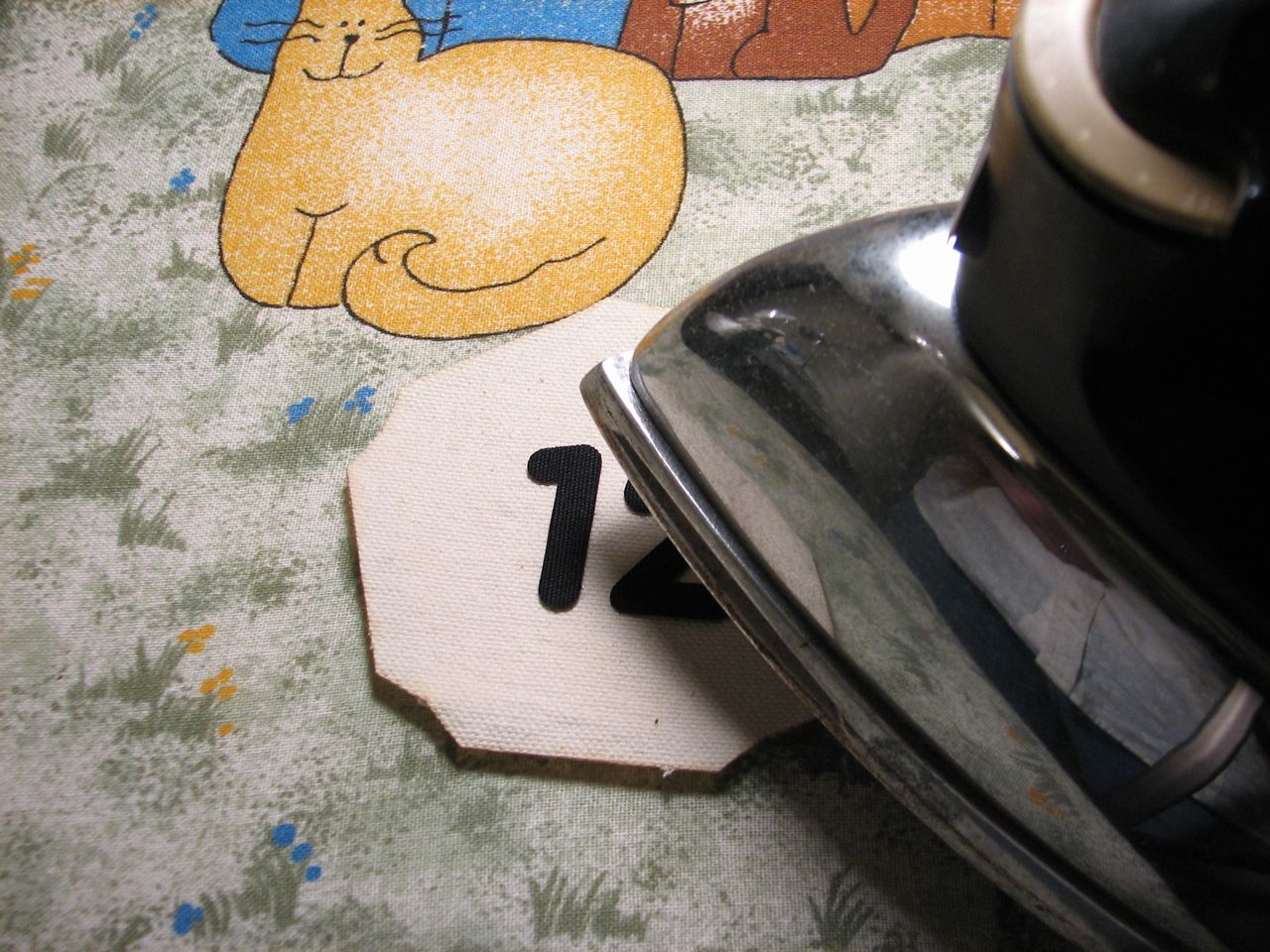

Place your numbers and iron them on as well.




D12 instrux12

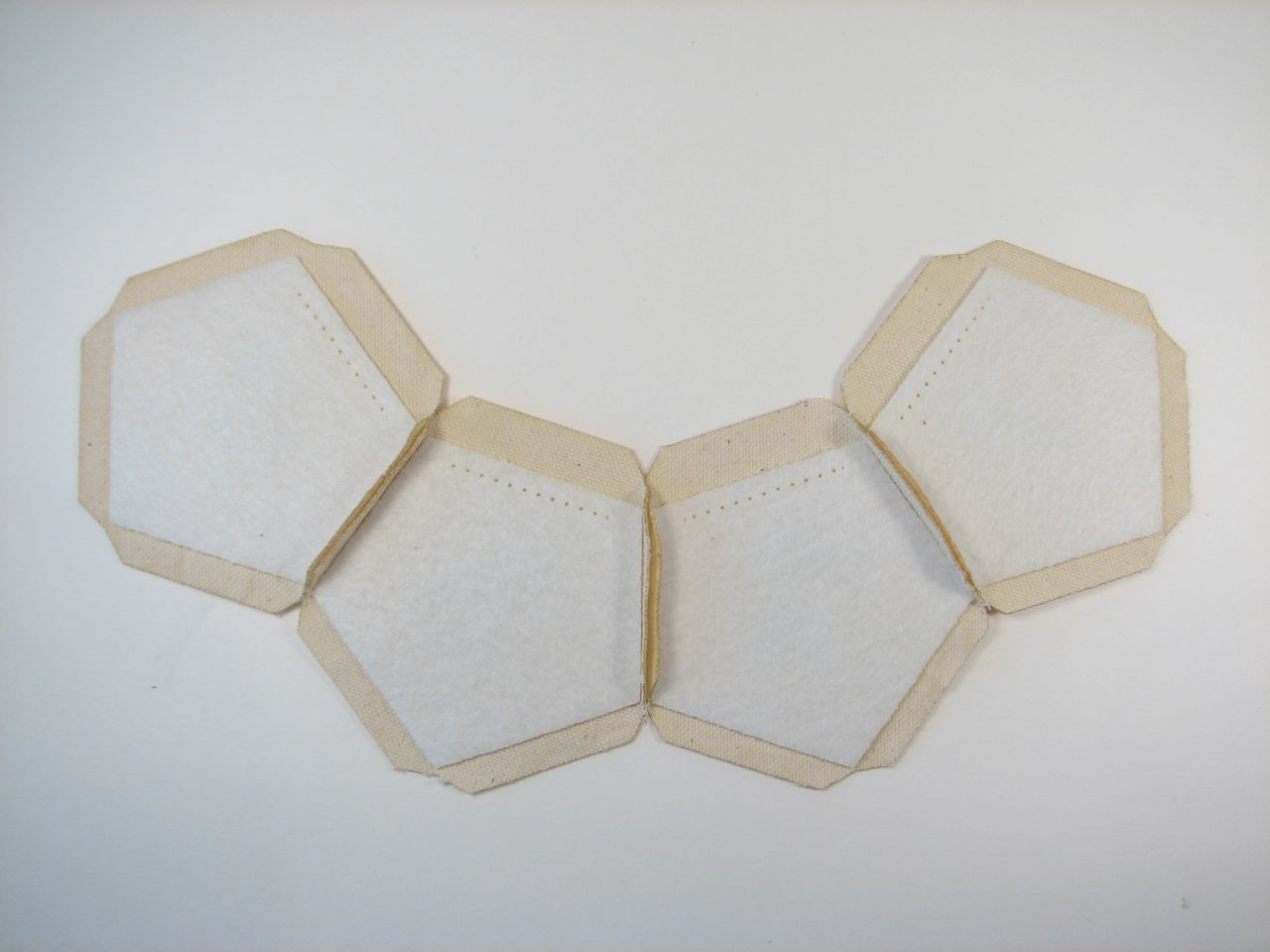

The pieces that go around the zipper get sewn together first.




D12 instrux06

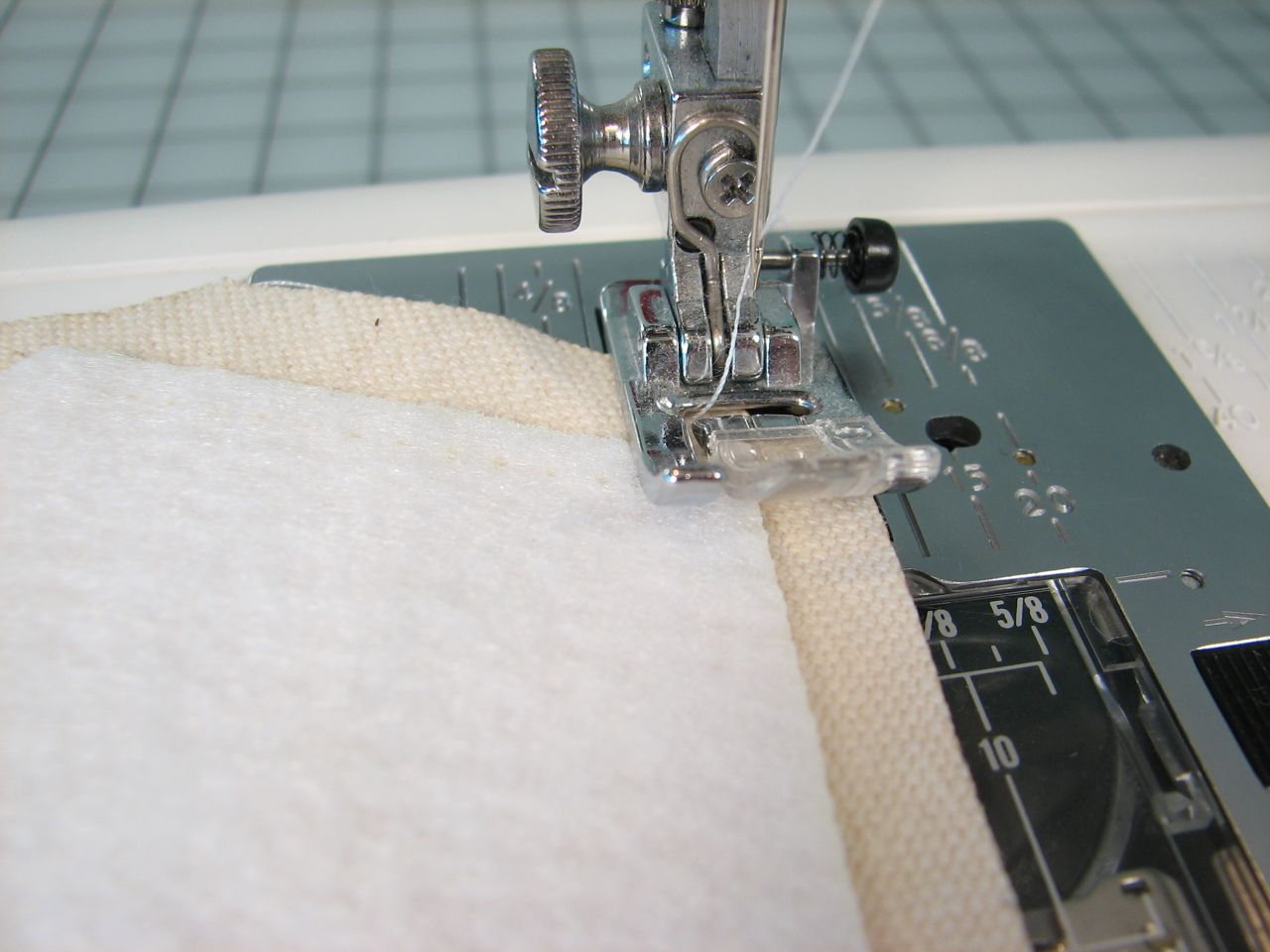

Place two of the pieces together with the dotted lines aligned and sew along an adjacent edge. You can sew the edges together by hand or by machine. By machine, you can use a regular foot, but a zipper foot works great for guiding the edge along. Repeat with the third and fourth zipper edge pieces.




D12 instrux14

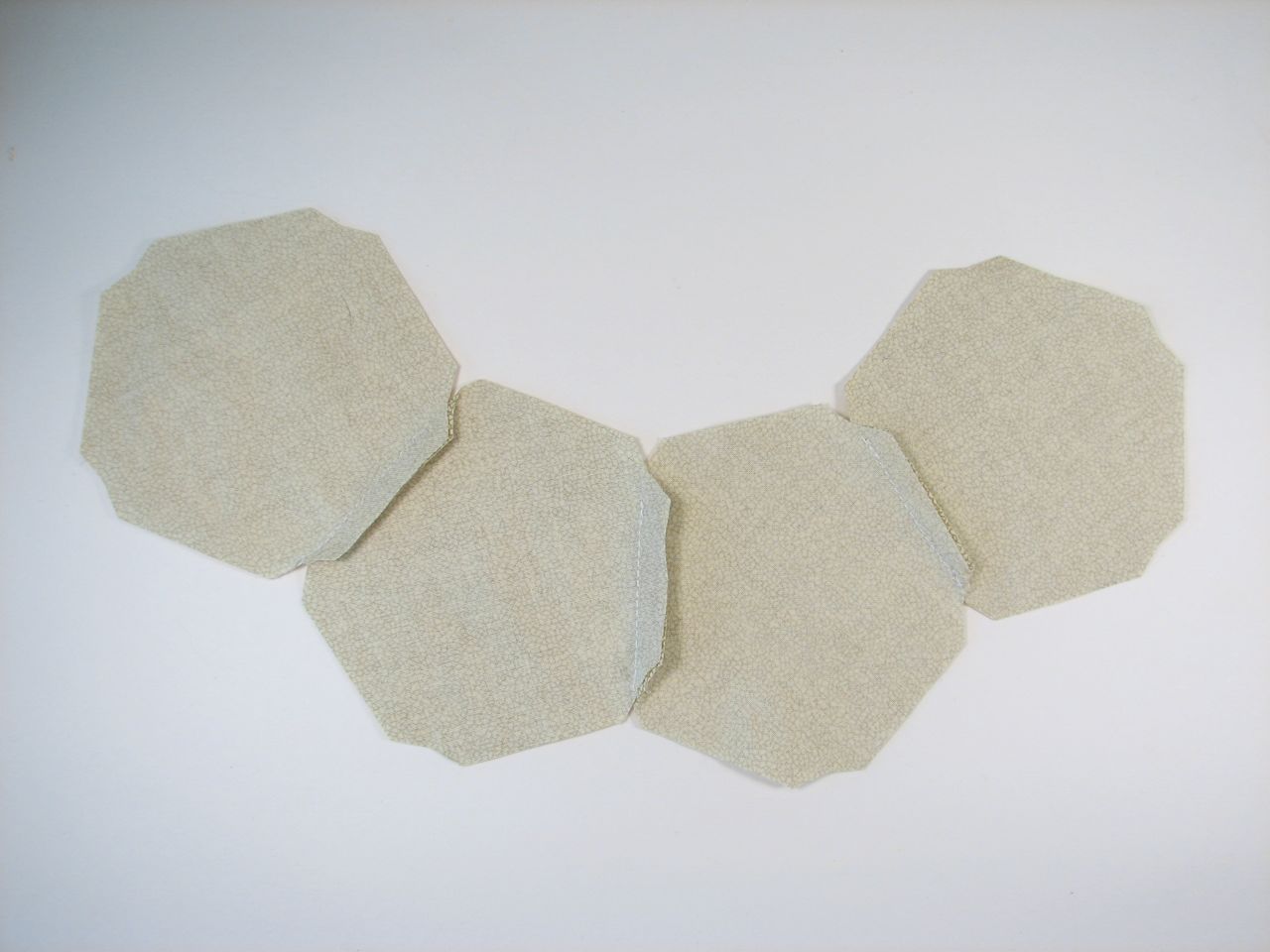

Sew four of the liner pieces together in the same pattern using a quarter-inch seam allowance.




D12 instrux18

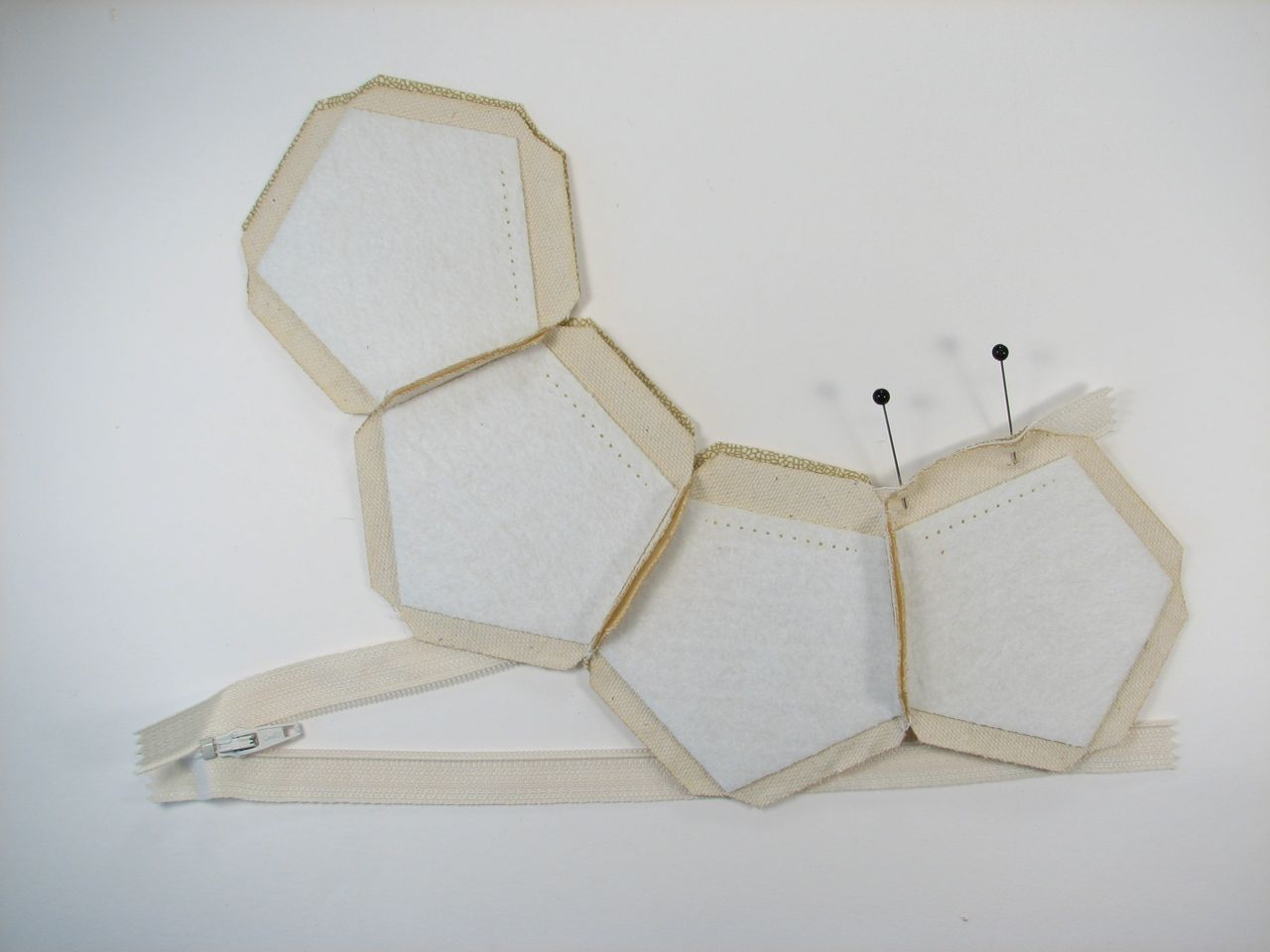

Pin the zipper between the outer canvas and the cotton liner. Start with one pentagon edge and then bend slightly for the adjacent one.




D12 instrux19

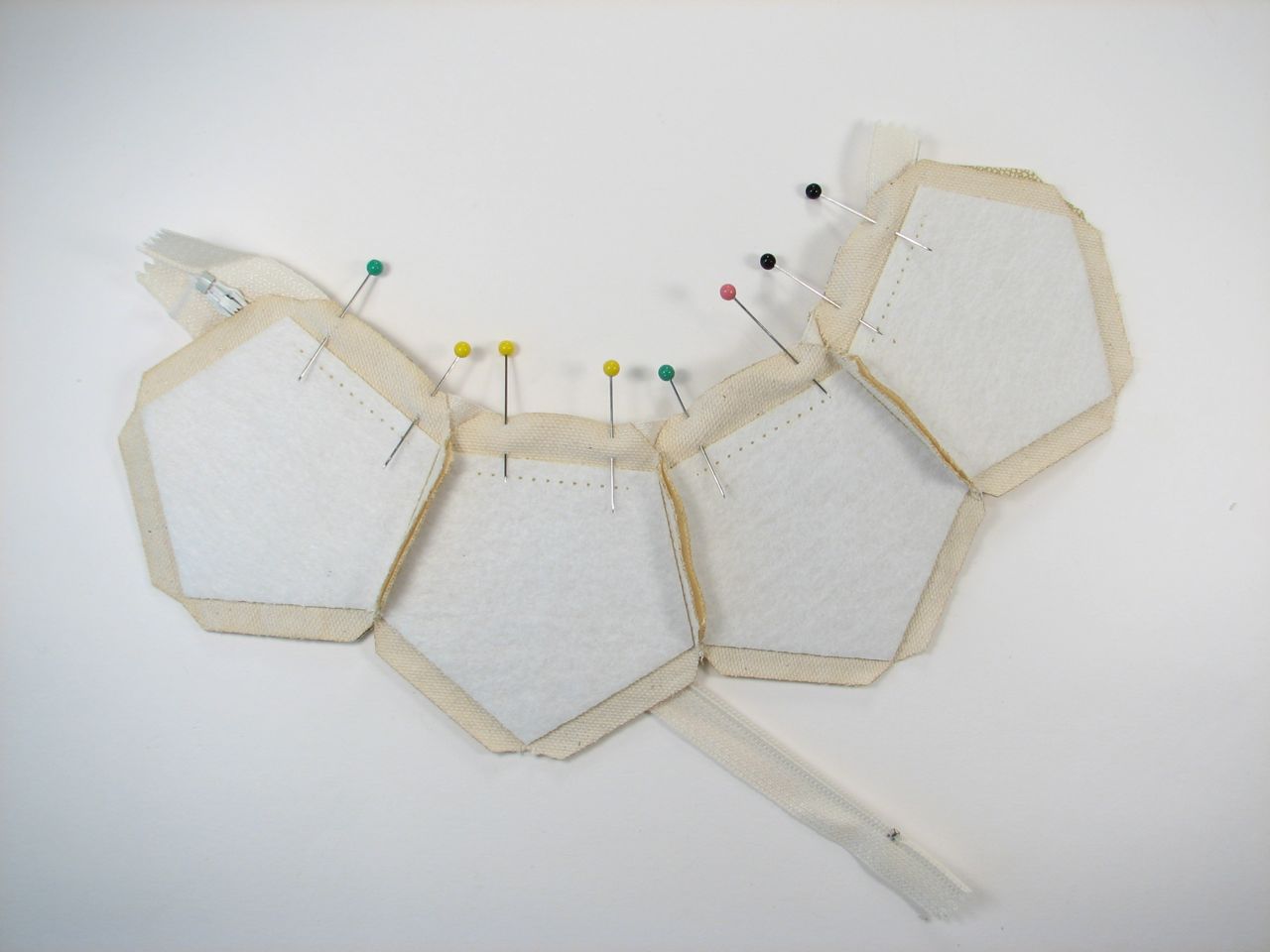

Once it is all pinned together, sew the zipper on. You can do this either on a machine or by hand, but hand-stitching may be preferable because the bends in the zipper make it hard to keep an even distance from the teeth when sewing by machine.




D12 instrux21

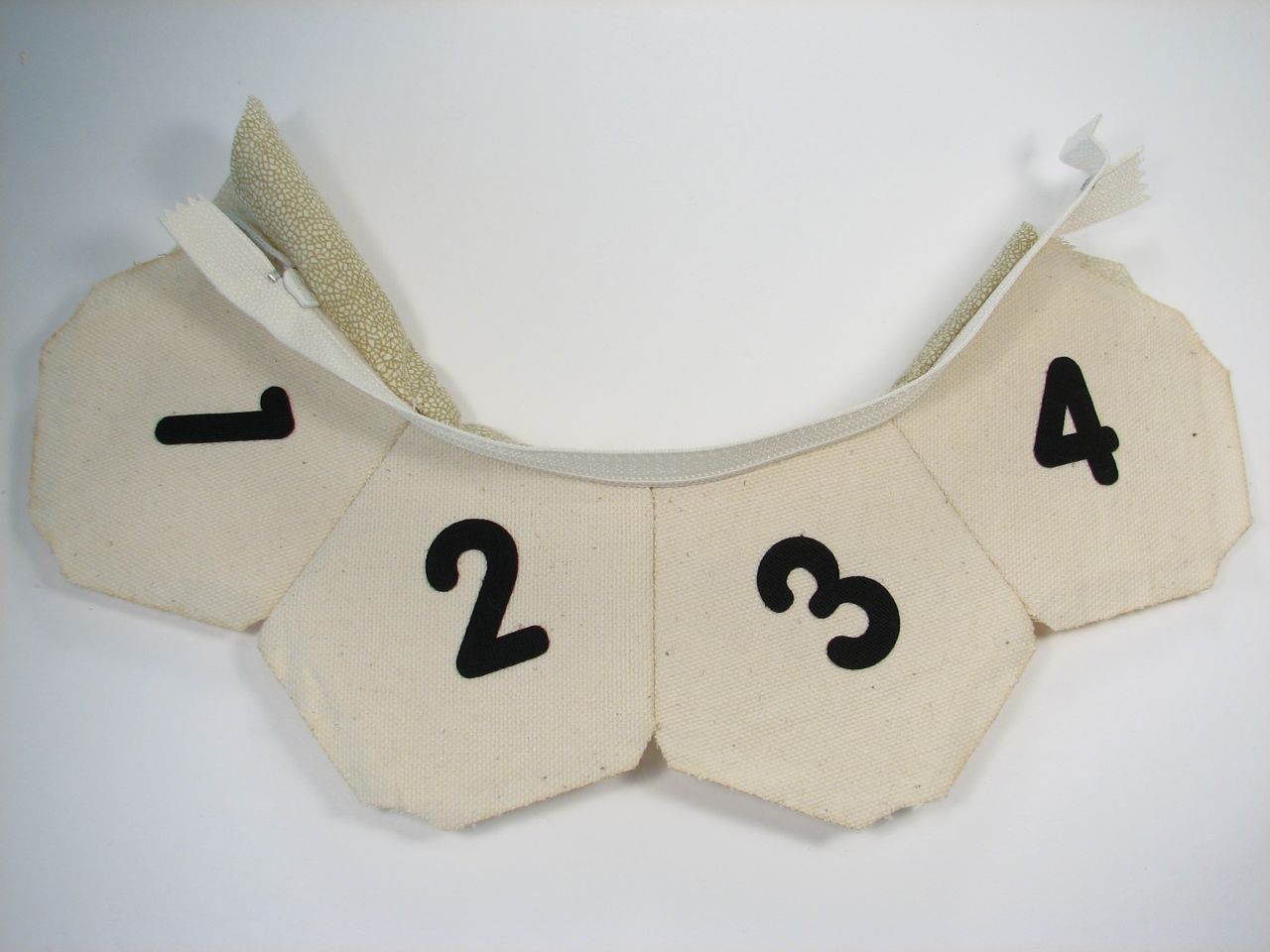

Close the zipper and admire. Make sure that the zipper moves freely before moving on to the next step.




D12 instrux25

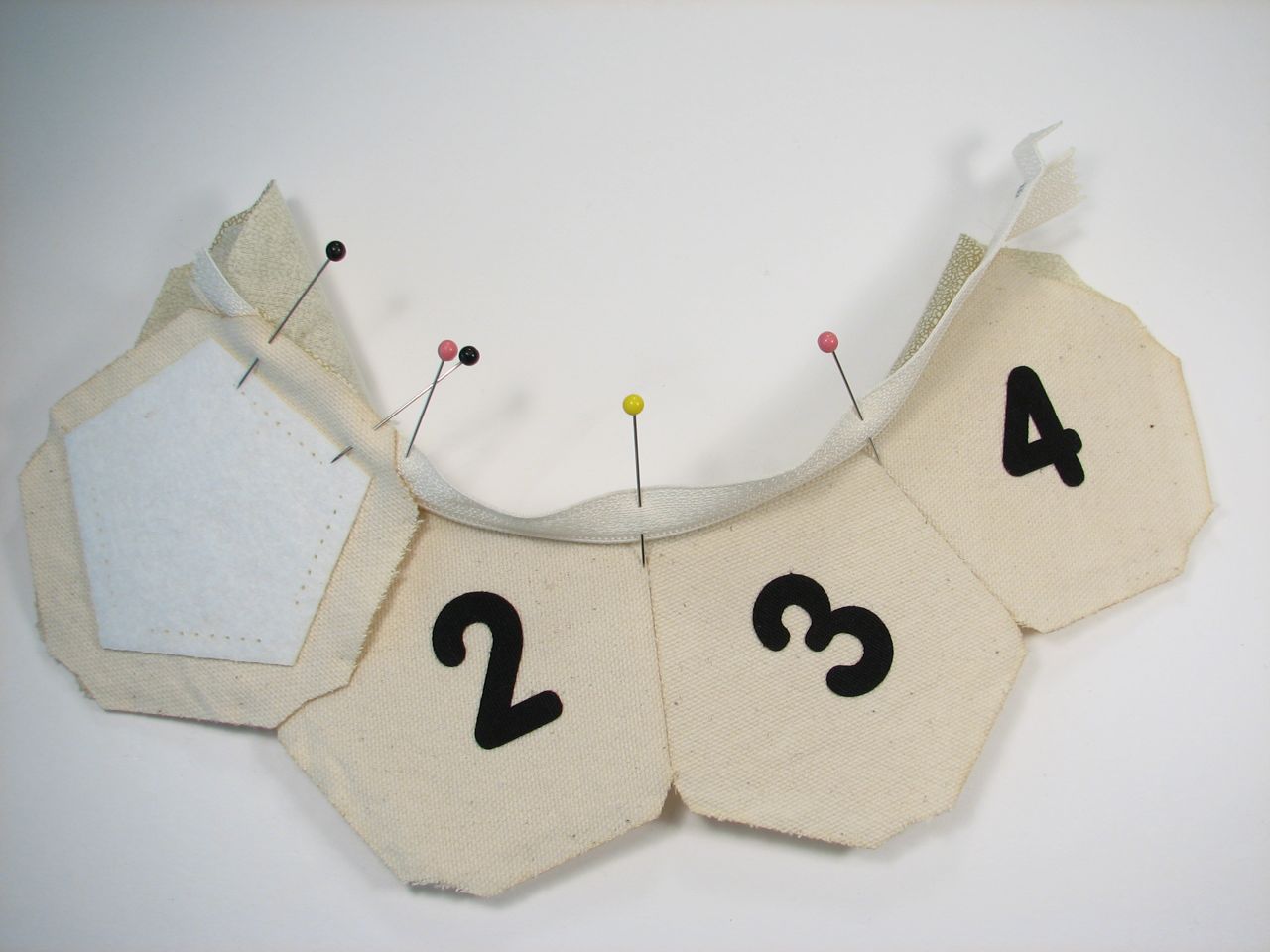

Use a pin to mark each of the intersection locations between the pentagons. Also pin the first edge of the lid piece and its cotton liner to the zipper.




D12 instrux26


Unzip the zipper and clip the edge by each of the intersection marking pins. This will make it easier for the zipper to bend around the edge of the lid piece.




D12 instrux28

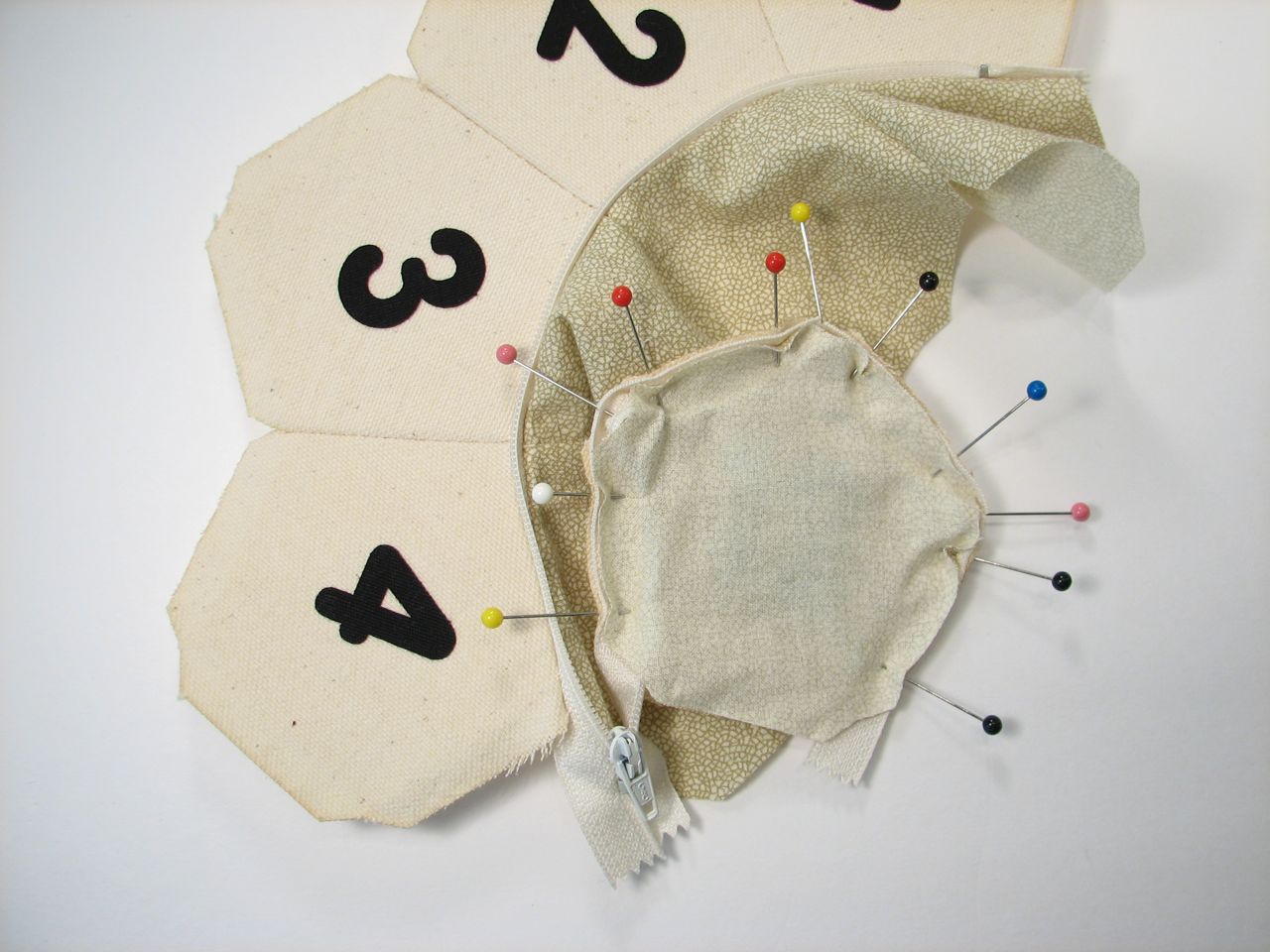

Pin the zipper around the edge of the lid, aligning the marking pins with the corners. The liner will stretch over the zipper.




D12 instrux31

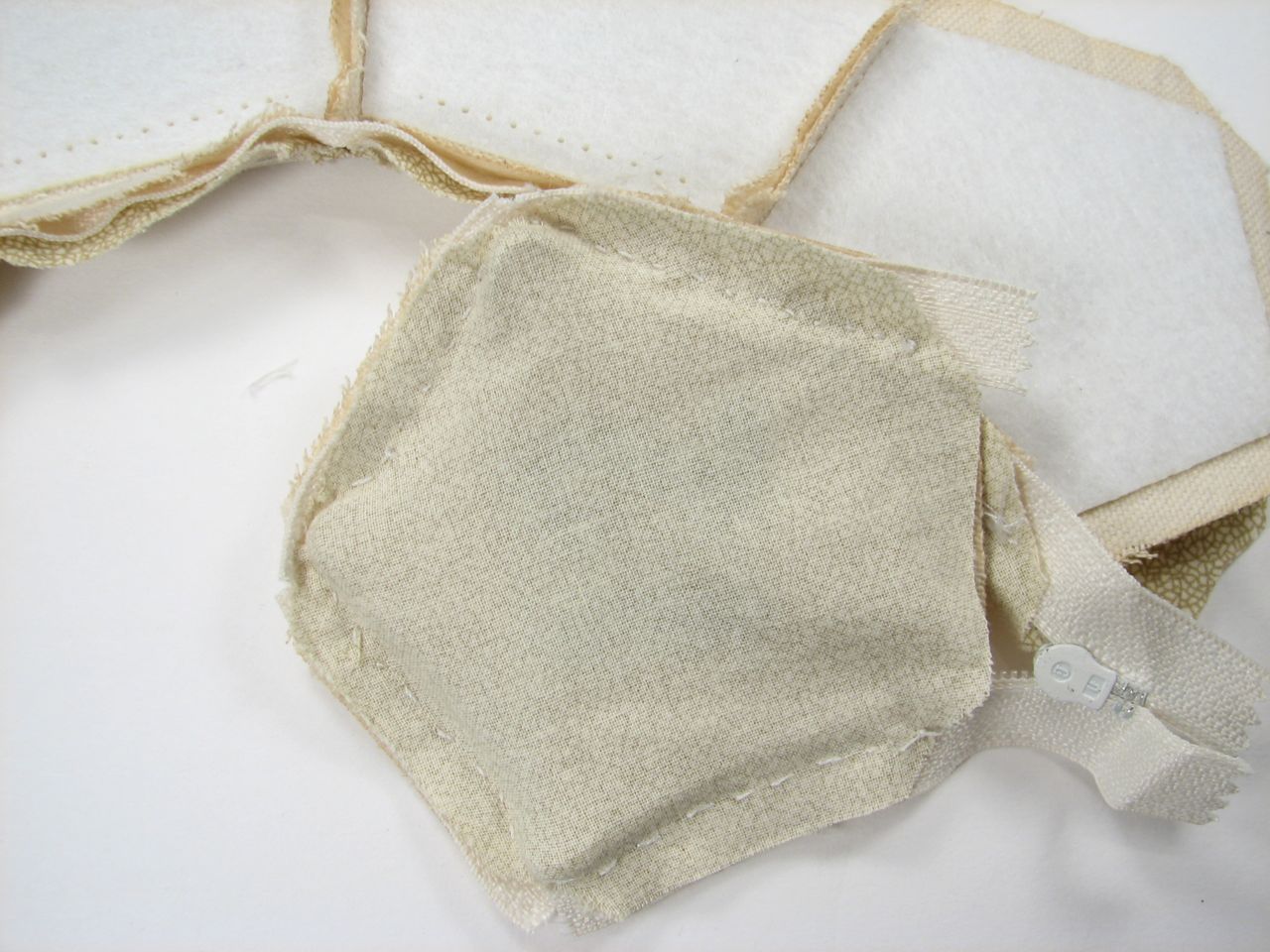

Handstitch around the zipper.




D12 instrux32

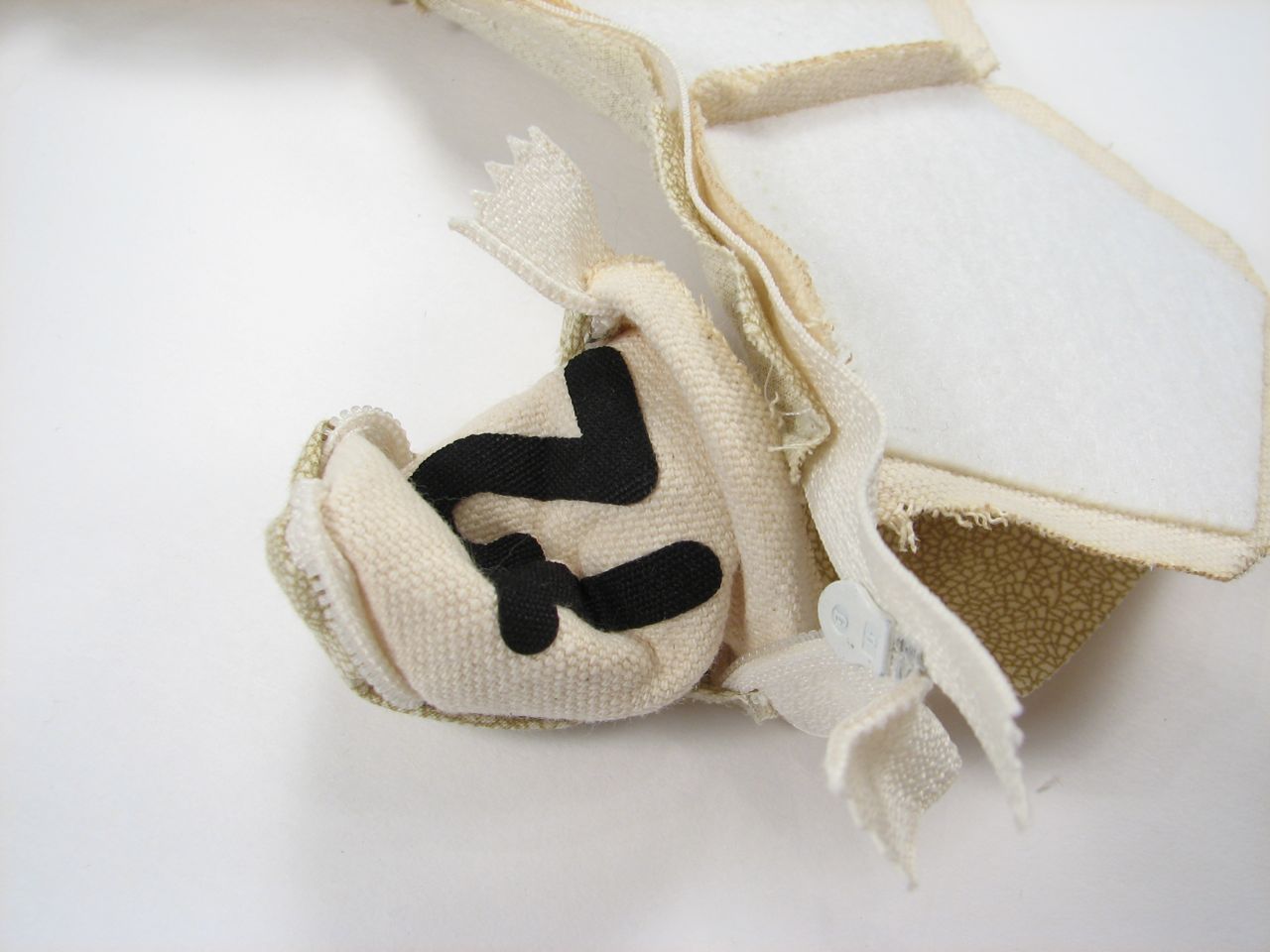

Turn the lid right-side-out. Check the fusion of the iron-on numbers and retouch with the iron if necessary.




D12 instrux34


If you close the zipper, you can see that it is almost half done.




D12 instrux40

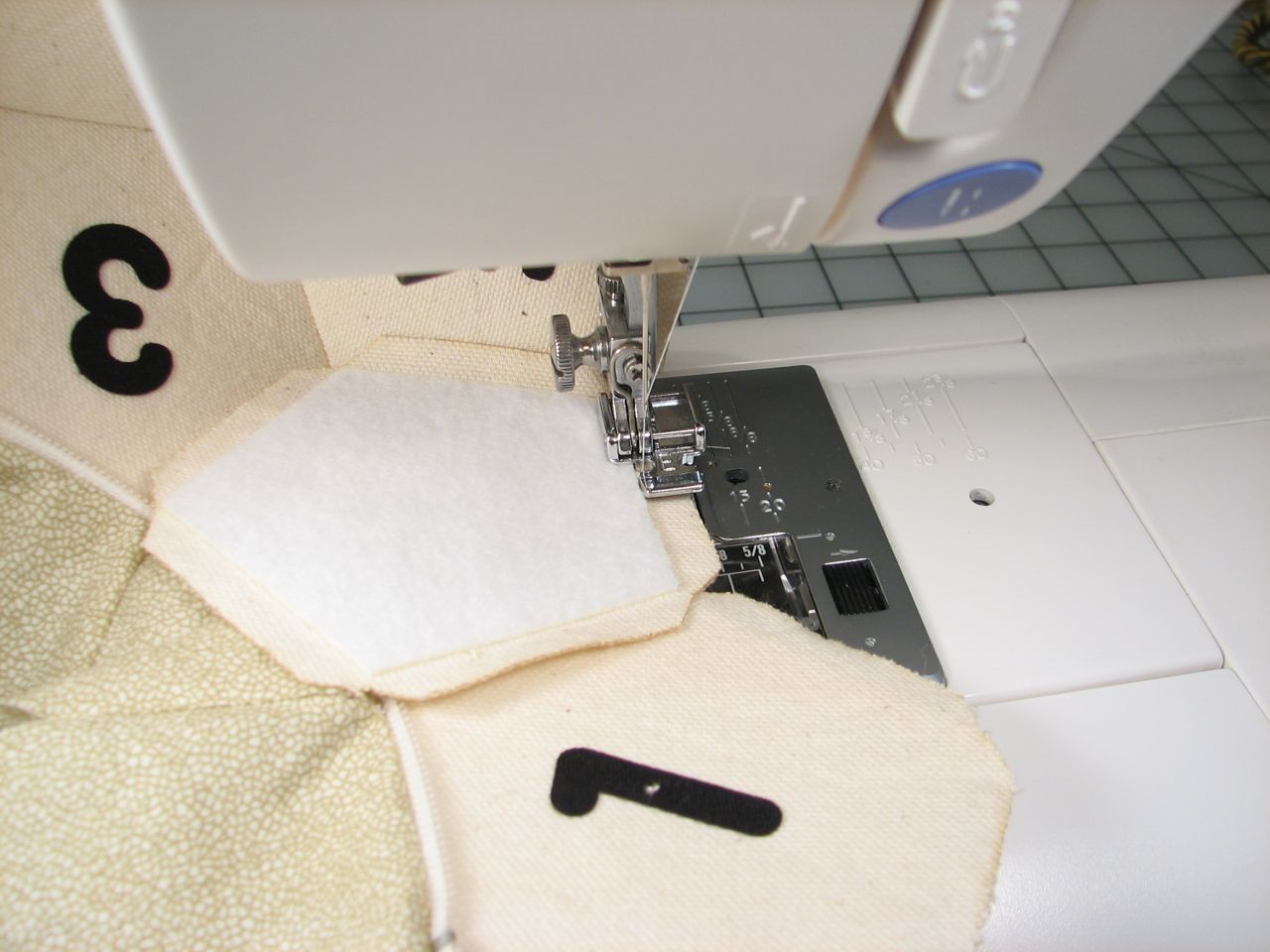

Unzip and sew on the rest of the pentagons.




D12 instrux38

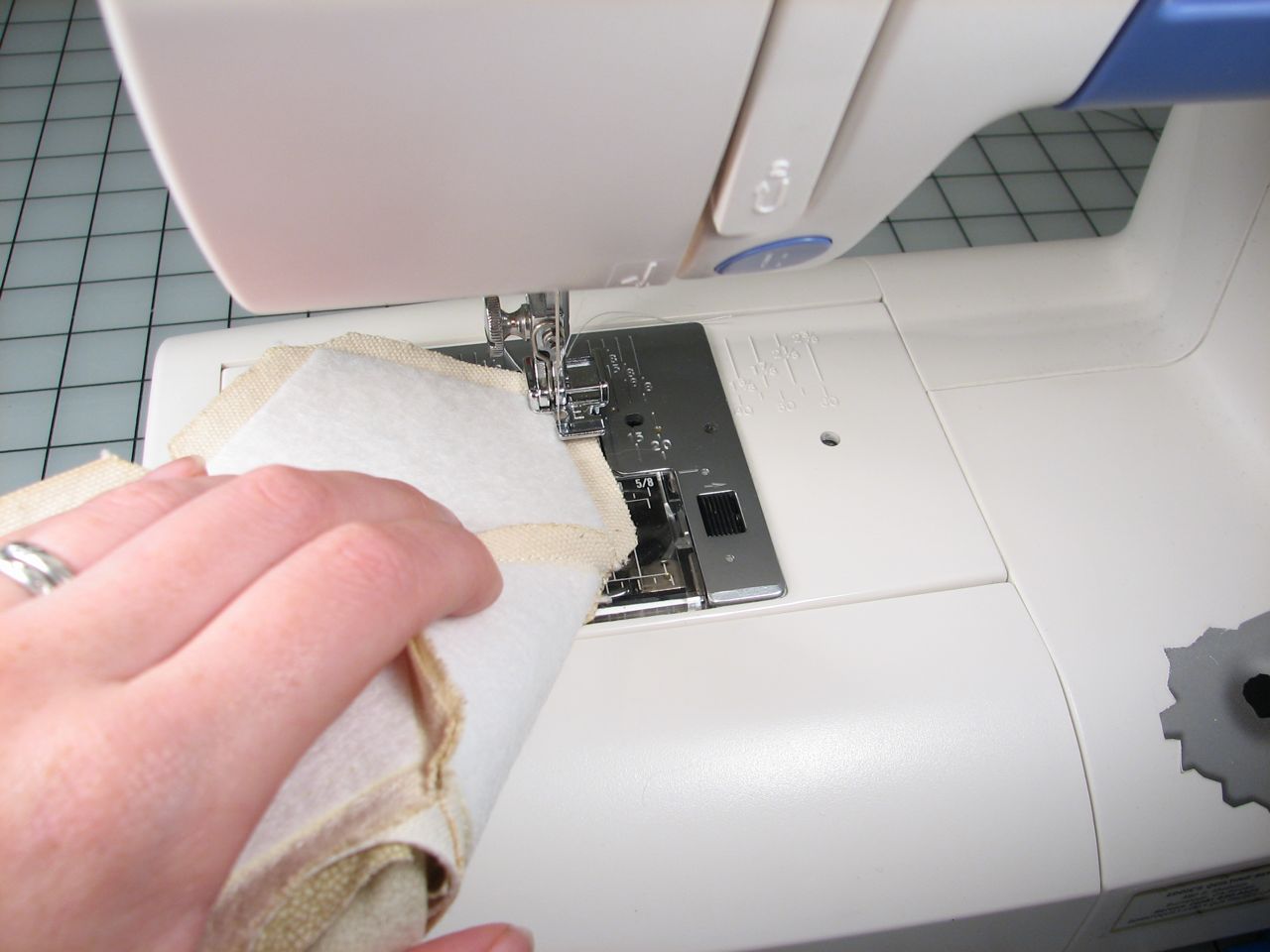

If using a sewing machine, when joining the third segment at a corner, start the seam at the open end and sew toward the corner, bending the third pentagon in half as you approach it.




D12 instrux36

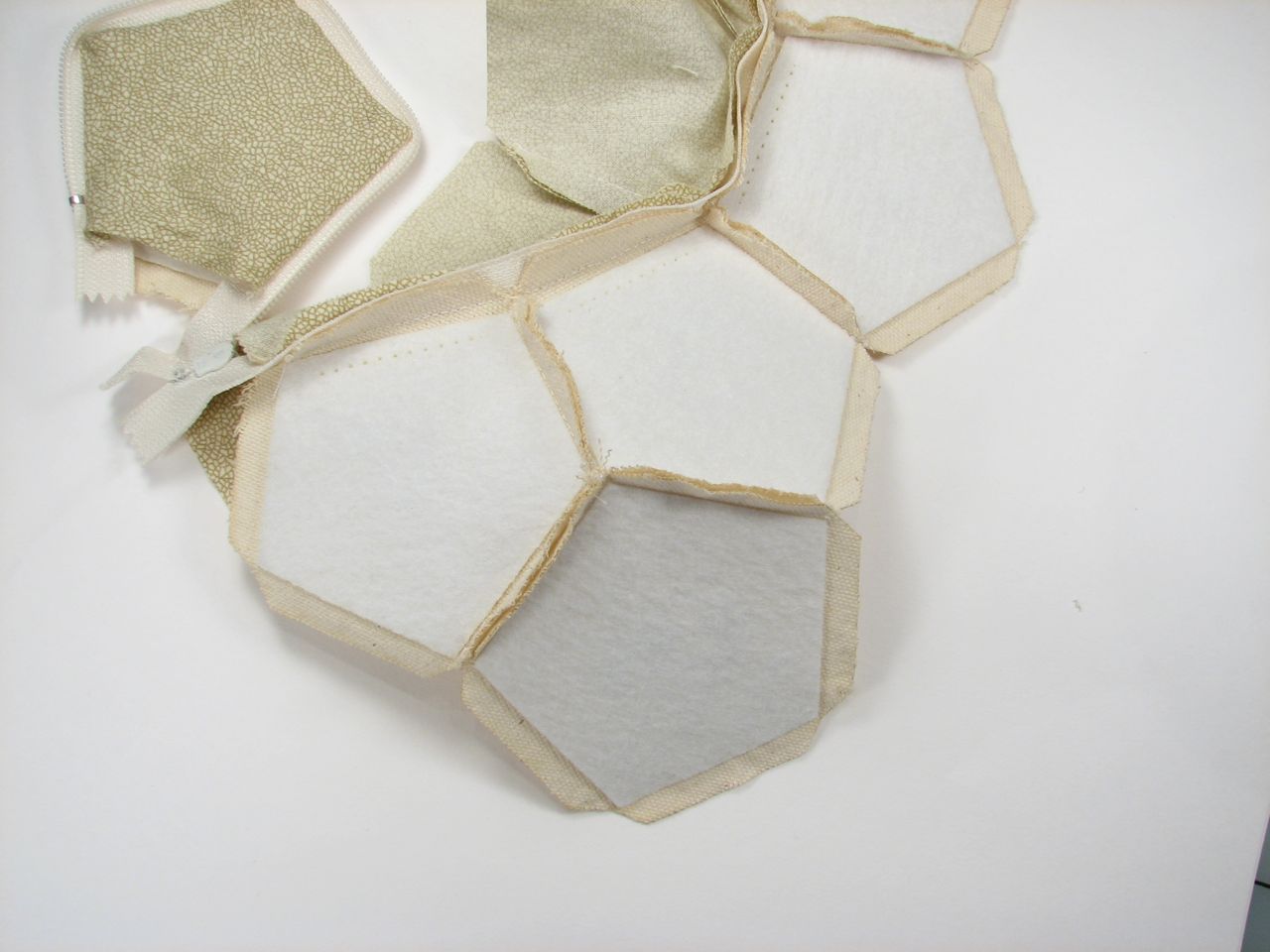

It will gradually gain shape. If the intersections of three pieces at the corners are loose, hand stitch to tighten them.




D12 instrux45

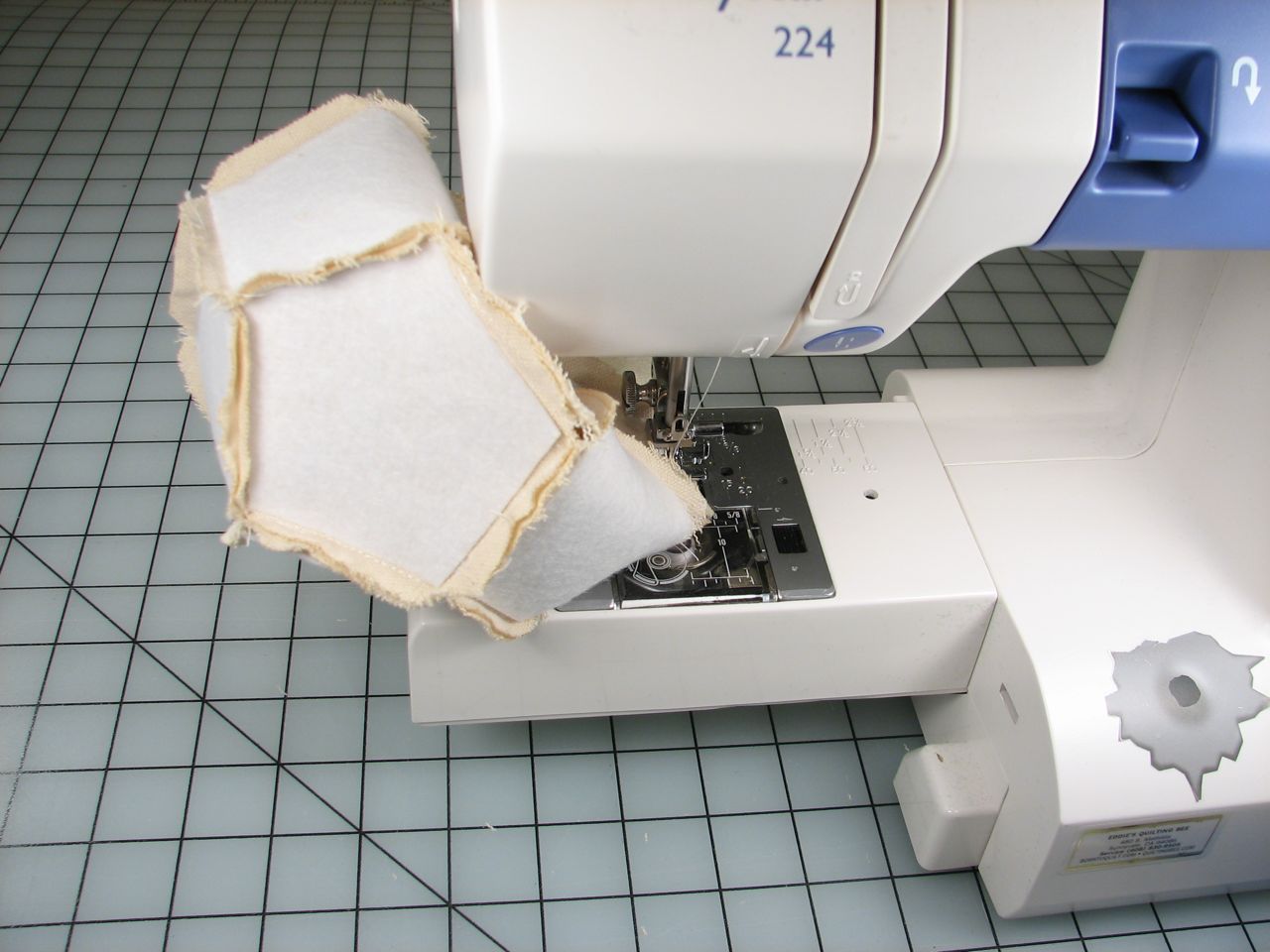

At some point, you may need to squish the pieces down to continue to use a sewing machine. Otherwise, continue by hand.




D12 instrux46

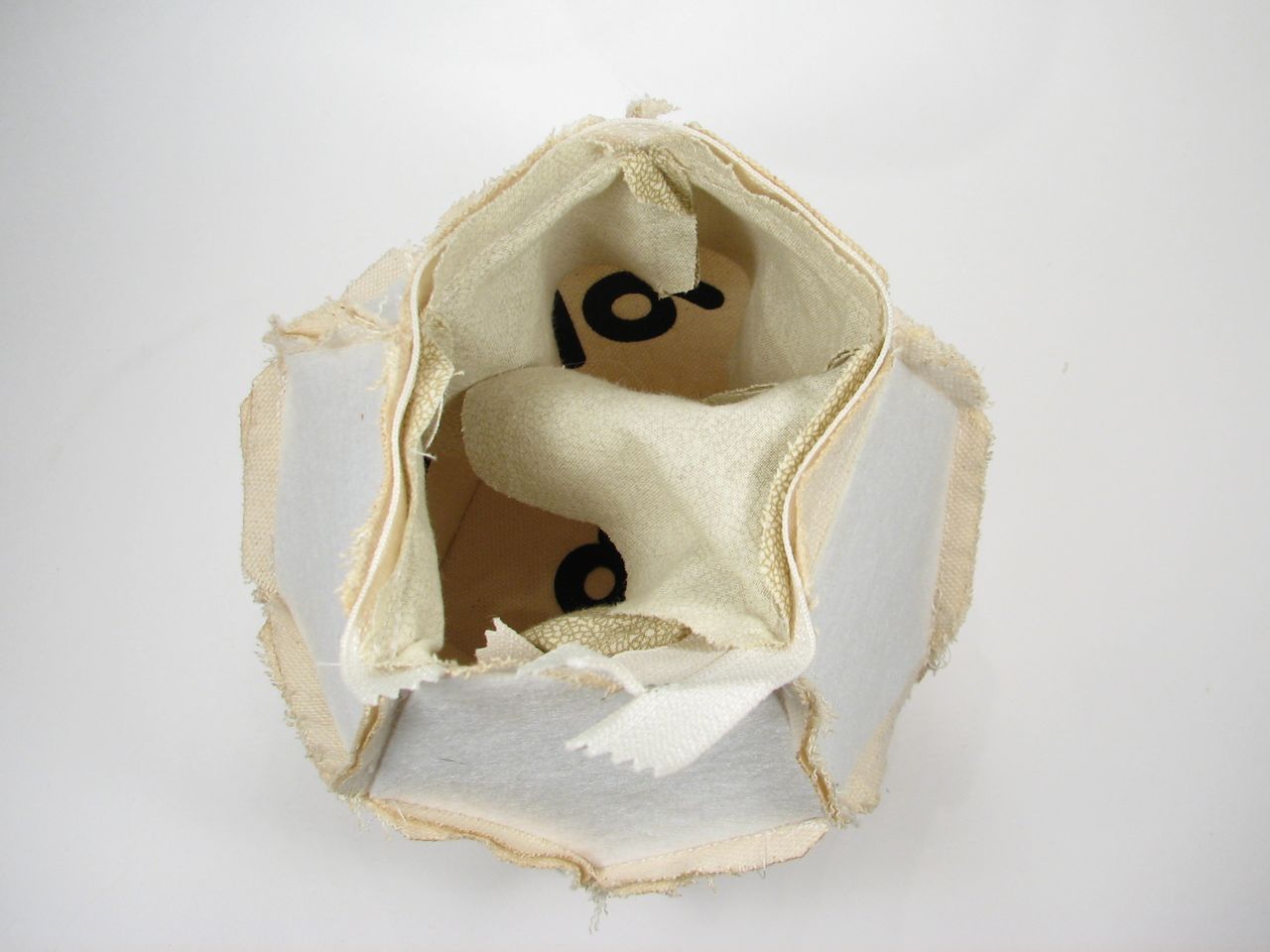

Once the canvas dodecahedron is complete, repeat with the cotton liner.




D12 instrux47

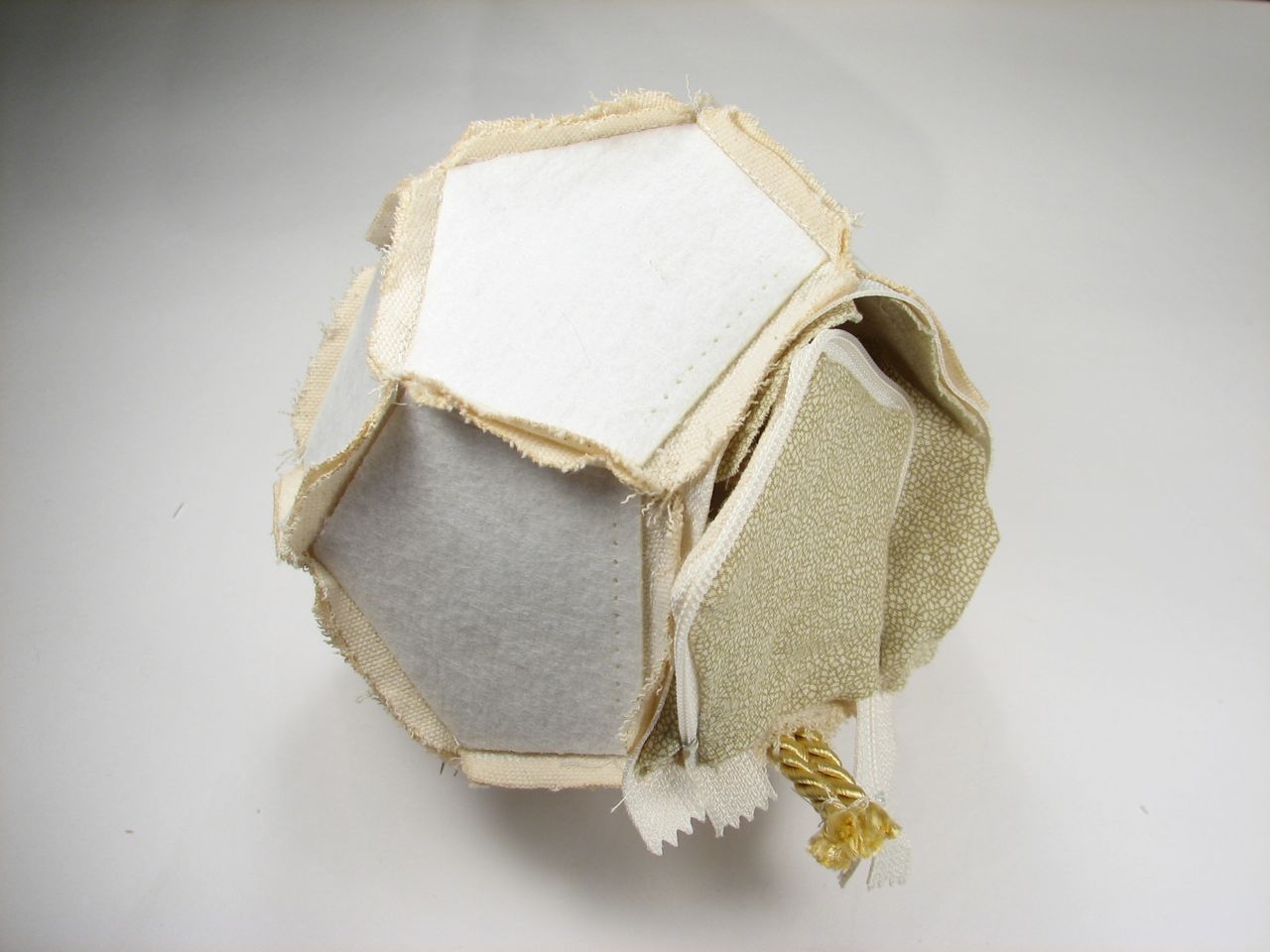

Leave one seam of the last piece of the cotton liner unsewn right next to the lid so that you’ll be able to turn it right-side out eventually.


Position the cord between the canvas pieces of the lid and the main body of the bag and hand sew it in place.




D12 instrux49

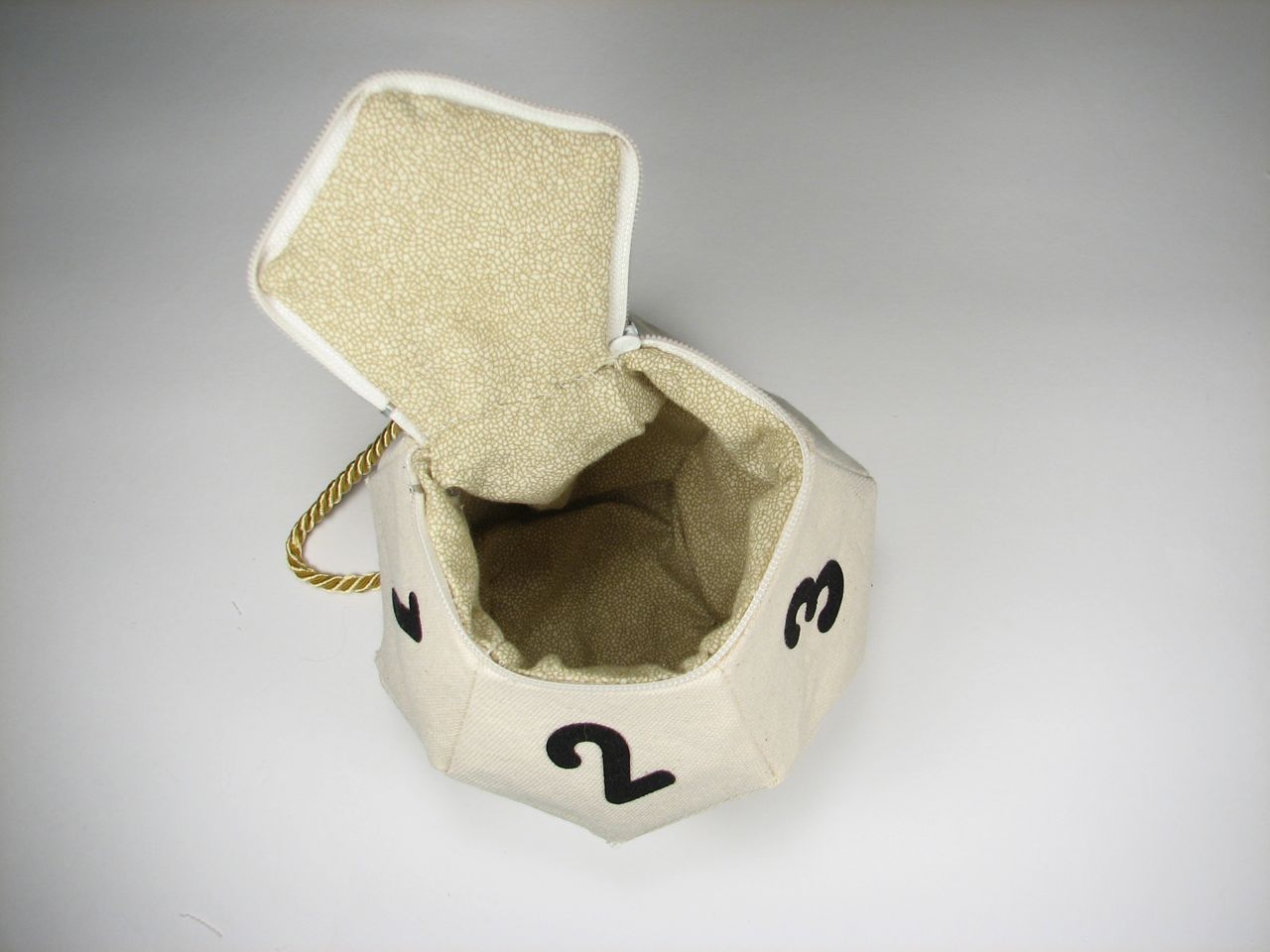

Turn the bag right-side-out through the opening in the liner and hand stitch the liner shut, tucking in the zipper and cord ends as you go.




D12 instrux48

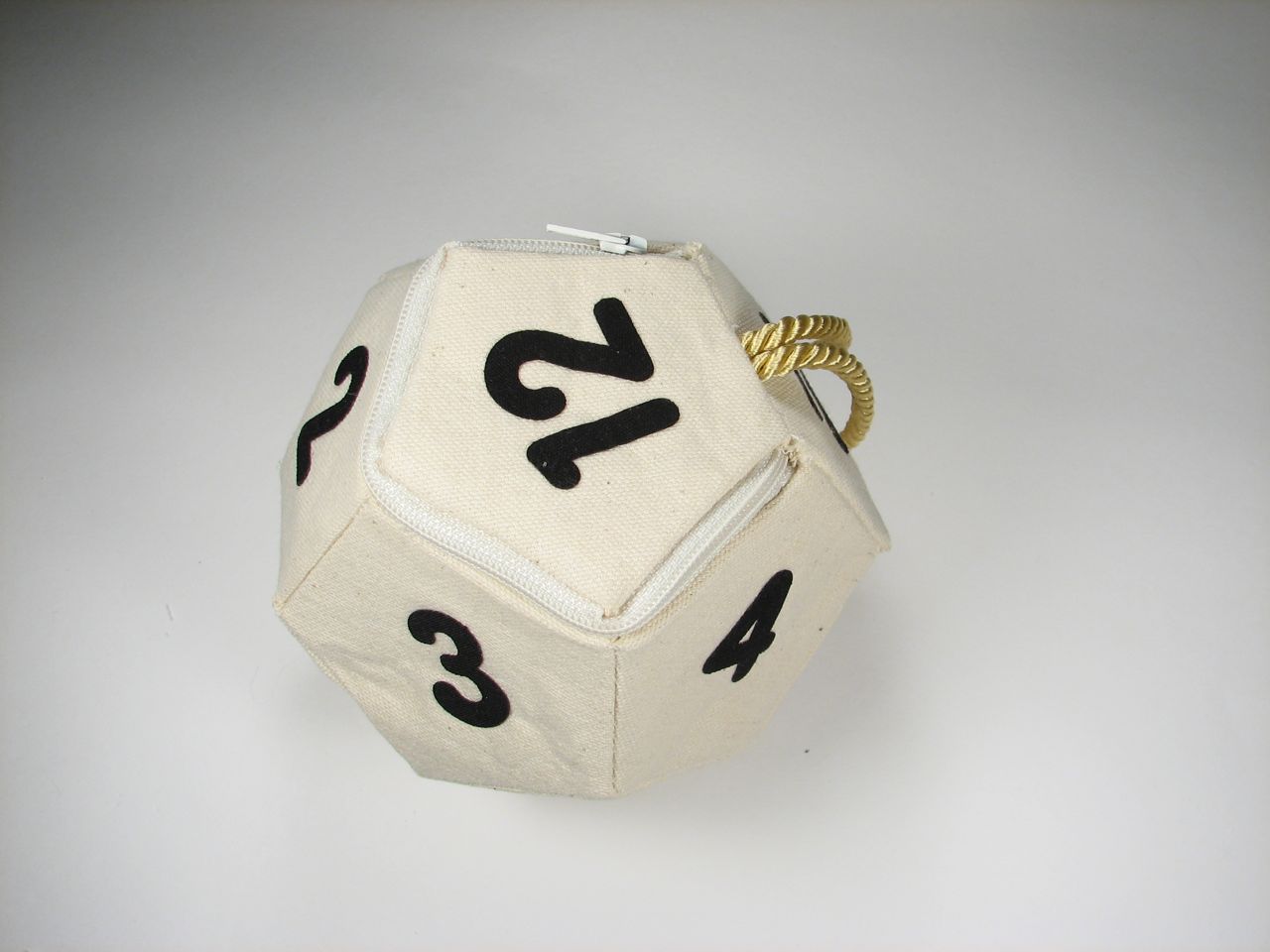

And that’s it!


As always, if you are inspired by our projects, we’d love to see the results in the Evil Mad Scientist flickr Auxiliary.


Updated August 3, 2009 to add zipper length, yardage and variations in stiffener adhesive texture.
